Question 1

Where to find the exploded diagram for Lubricating system on my Saab 9-3 (9400) 2000?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Lubricating system on Saab 9-3 (9400) 2000. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Lubricating system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Lubricating system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Lubricating system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Lubricating system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	75 15 190 95 49 593 Bushing PETROL	Bushing	PETROL	1
2	91 89 473 Hose PETROL	Hose	PETROL	1
3	91 65 903 30 551 957 Nipple PETROL	Nipple	PETROL	1
4	91 89 564 Positive crankcase ventilation valve 2000-2000 • PETROL	Positive crankcase ventilation valve	2000-2000 PETROL	1
5	91 89 465 Hose PETROL	Hose	PETROL	1
6	91 80 464 30 567 074 Tube PETROL	Tube	PETROL	1
7	91 45 764 30 551 902 Screw PETROL	Screw	PETROL	1
8	75 83 628 Screw PETROL	Screw	PETROL	1
9	81 24 158 Gasket PETROL	Gasket	PETROL	2
10	91 36 243 Vacuum hose PETROL • L=330MM \| Sold in...	Vacuum hose	PETROL L=330MM \| Sold in...	1
11	91 36 243 Vacuum hose PETROL • L=60MM \| Sold in...	Vacuum hose	PETROL L=60MM \| Sold in...	1
12	91 36 243 Vacuum hose PETROL • L=240MM \| Sold in...	Vacuum hose	PETROL L=240MM \| Sold in...	1
	91 36 243 Vacuum hose PETROL • L=5000MM \| Sold in...	Vacuum hose	PETROL L=5000MM \| Sold in...	X

Pos.	Part No.	Description	Usage	Qty
1	75 15 190 95 49 593 Bushing PETROL	Bushing	PETROL	1
2	91 89 473 Hose PETROL	Hose	PETROL	1
3	91 65 903 30 551 957 Nipple PETROL	Nipple	PETROL	1
4	91 89 564 Positive crankcase ventilation valve 2000-2000 • PETROL	Positive crankcase ventilation valve	2000-2000 PETROL	1
5	91 89 465 Hose PETROL	Hose	PETROL	1
6	91 80 464 30 567 074 Tube PETROL	Tube	PETROL	1
7	91 45 764 30 551 902 Screw PETROL	Screw	PETROL	1
8	75 83 628 Screw PETROL	Screw	PETROL	1
9	81 24 158 Gasket PETROL	Gasket	PETROL	2
10	91 36 243 Vacuum hose PETROL • L=330MM \| Sold in...	Vacuum hose	PETROL L=330MM \| Sold in...	1
11	91 36 243 Vacuum hose PETROL • L=60MM \| Sold in...	Vacuum hose	PETROL L=60MM \| Sold in...	1
12	91 36 243 Vacuum hose PETROL • L=240MM \| Sold in...	Vacuum hose	PETROL L=240MM \| Sold in...	1
	91 36 243 Vacuum hose PETROL • L=5000MM \| Sold in...	Vacuum hose	PETROL L=5000MM \| Sold in...	X

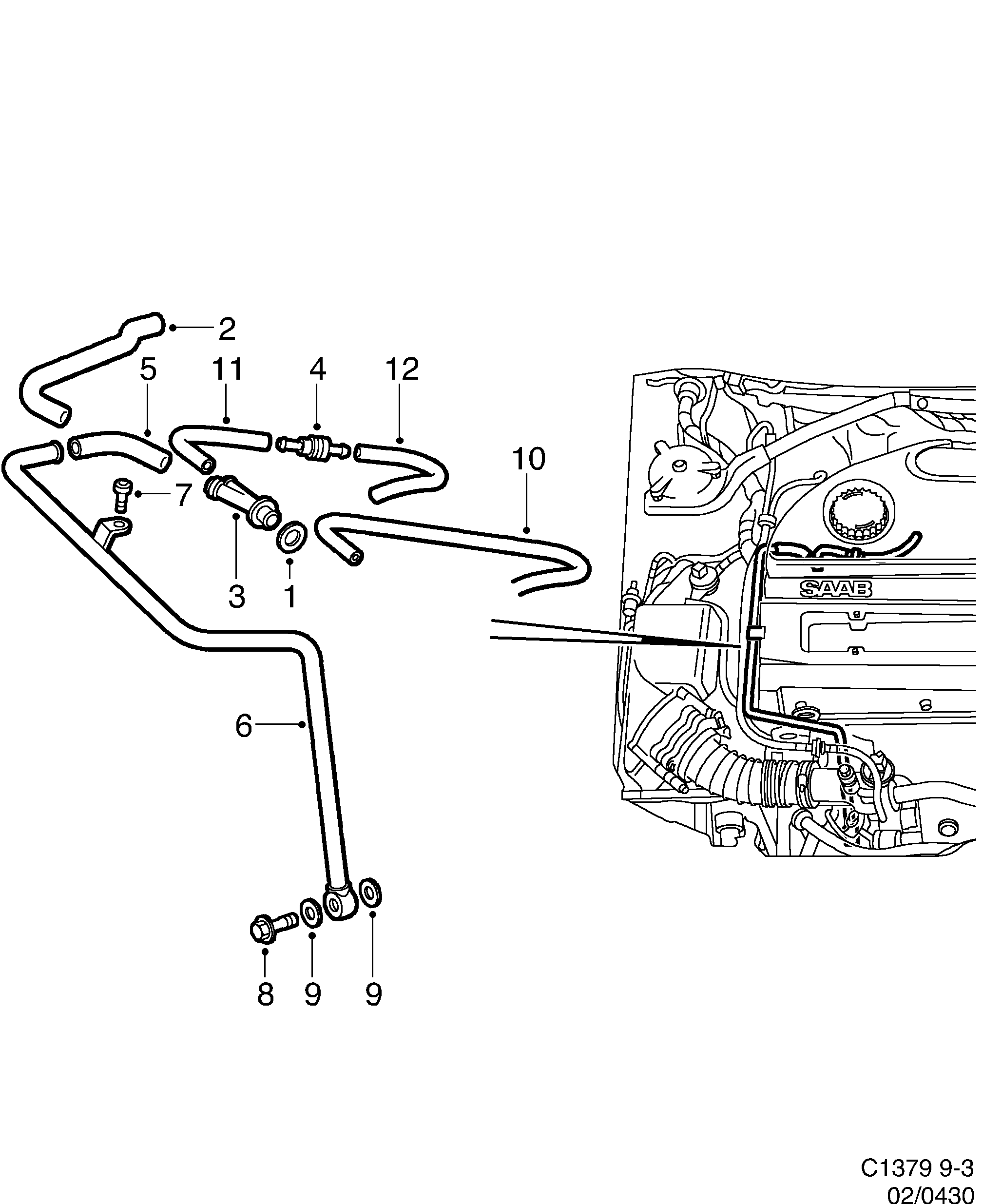

430: Engine - Lubricating system - Crank case ventilation
