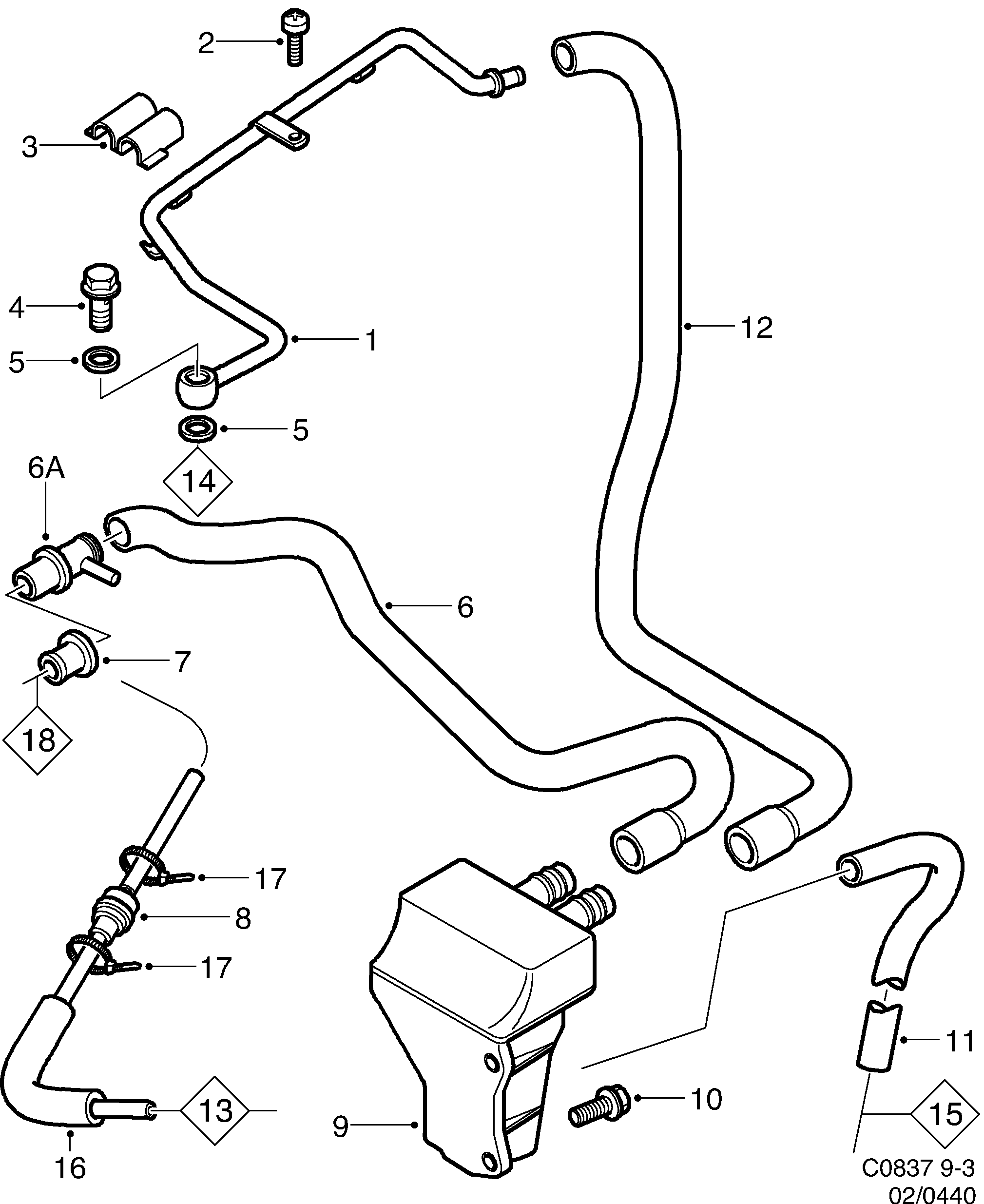

440: Engine - Lubricating system - Crank case ventilation
(1999 - 2003 | PETROL) | For 9-3 (9400) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 83 849 30 567 027 Tube PETROL | 1 | |
| 2 | 91 45 764 30 551 902 Screw PETROL | 1 | |
| 3 | 46 85 905 90 344 674 Clamp PETROL | 1 | |
| 4 | 75 83 628 Screw 1999-2000 • B205 | 1 | |
| 4 | 51 25 067 51 25 224 Screw 1999-2000 • B235 | 1 | |
| 5 | 81 24 158 Gasket PETROL | 2 | |
| 6 | 55 560 463 Hose PETROL | 1 | |
| 6A | 30 588 567 55 560 443 Nipple 1999- • PETROL • (91 92 949) | 1 | |
| 7 | 75 15 190 95 49 593 Bushing -2001 • PETROL | 1 | |
| 8 | 91 97 740 93 99 973 Hose 2000-2000 • PETROL | 1 | |
| 8 | 93 99 973 Hose 2000- • PETROL | 1 | |
| 9 | 91 87 790 Oil trap 1999-2000 • PETROL | 1 | |
| 10 | 79 78 190 55 566 034 Screw PETROL | 2 | |
| 11 | 91 72 115 55 560 445 Hose PETROL | 1 | |
| 12 | 55 560 462 Hose PETROL | 1 | |
| 13 | Throttle bodyFuel system 1999-2000 • PETROL | ||
| 14 | 1999-2003 • PETROL | ||
| 15 | SumpShort block PETROL | ||
| 16 | 91 87 998 Hose PETROL | 1 | |
| 17 | 79 71 864 Tensioning band PETROL | 2 | |
| 18 | Valve coverShort block PETROL |
