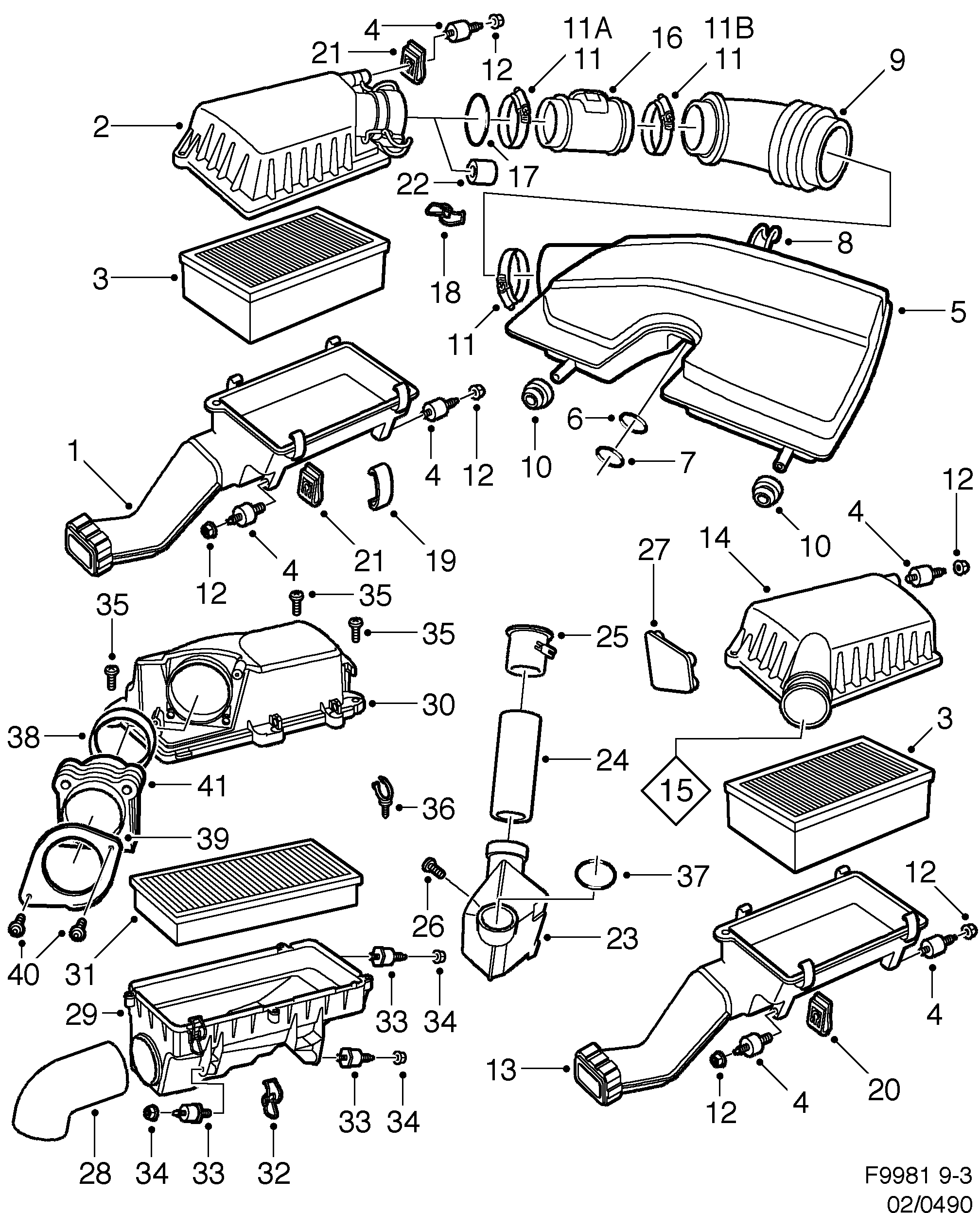

490: Engine - Fuel system - Air cleaner

(1998 - 2000 | D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R) | For 9-3 (9400) (2000)

100%

(N°470)

Section 490

(N°520)

Pos.	Part No.	Description	Usage	Qty
1	42 36 014 Air cleaner I	Air cleaner	I	1
1	48 76 165 Air cleaner DIESEL	Air cleaner	DIESEL	1
2	42 36 022 Cover I	Cover	I	1
2	48 76 157 Cover DIESEL	Cover	DIESEL	1
3	42 36 030 Air filter B204TURBO, I	Air filter	B204TURBO, I	1
3	48 76 199 Filter cartridge DIESEL	Filter cartridge	DIESEL	1
4	42 35 768 92 81 374 Rubber spacer D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Rubber spacer	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	3
5	42 35 230 Silencer I	Silencer	I	1
6	42 29 522 O-ring D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	O-ring	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	1
7	42 29 530 O-ring D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	O-ring	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	1
8	42 29 548 Clamp D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Clamp	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	1
9	42 35 222 Hose I	Hose	I	1
9	45 27 610 Pipe elbow DIESEL	Pipe elbow	DIESEL	1
10	40 27 488 Rubber bushing D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Rubber bushing	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	2
11	79 70 155 92 153 080 Hose clamp D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Hose clamp	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	2
11A	79 70 171 Hose clamp DIESEL	Hose clamp	DIESEL	1
11B	79 70 163 92 150 224 Hose clamp DIESEL	Hose clamp	DIESEL	1
12	43 45 138 11 089 471 Hexagon nut D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Hexagon nut	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	3
13	42 36 014 Air cleaner TURBO	Air cleaner	TURBO	1
14	42 36 089 Air cleaner TURBO	Air cleaner	TURBO	1
15	HoseIntake and exhaust system D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	HoseIntake and exhaust system D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R			1
16	47 80 185 Mass air flow sensor D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Mass air flow sensor	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	1
16	46 62 888 Mass air flow sensor DIESEL	Mass air flow sensor	DIESEL	1
17	41 56 295 O-ring I	O-ring	I	1
17	48 76 173 Seal DIESEL	Seal	DIESEL	1
18	44 45 854 Clip D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Clip	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	2
19	44 45 862 Clip D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Clip	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	4
19	48 76 181 Clip DIESEL	Clip	DIESEL	3
20	44 45 847 Clip D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Clip	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	3
21	44 45 847 Clip D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Clip	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	2
22	48 76 629 Hose D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	Hose	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	1
23	42 29 563 Silencer DIESEL, B205, B235	Silencer	DIESEL, B205, B235	1
24	42 36 147 Hose DIESEL, B205, B235	Hose	DIESEL, B205, B235	1
25	42 36 154 Connecting sleeve DIESEL, B205, B235	Connecting sleeve	DIESEL, B205, B235	1
26	79 77 465 92 153 149 Screw DIESEL, B205, B235	Screw	DIESEL, B205, B235	1
27	43 38 679 Adapter DIESEL, B205, B235R	Adapter	DIESEL, B205, B235R	1
28	48 76 041 Air inlet B205, B235R	Air inlet	B205, B235R	1
29	48 76 058 Air cleaner housing B205, B235R	Air cleaner housing	B205, B235R	1
30	48 76 066 Cover B205, B235R	Cover	B205, B235R	1
31	48 76 074 Air filter B205, B235R	Air filter	B205, B235R	1
32	49 62 296 Clamp B205, B235R	Clamp	B205, B235R	1
33	46 71 863 Rubber spacer B205, B235R	Rubber spacer	B205, B235R	3
34	43 45 138 11 089 471 Hexagon nut B205, B235R	Hexagon nut	B205, B235R	3
35	49 62 304 Screw B205, B235R	Screw	B205, B235R	4
36	49 62 726 Clip B205, B235R	Clip	B205, B235R	2
37	42 29 704 O-ring D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	O-ring	D223L, B204E, B204I, B205E, B205L, B205R, B235E, B235R	1
38	48 78 187 O-ring B205, B235R	O-ring	B205, B235R	1
39	48 76 090 Bracket B205, B235R	Bracket	B205, B235R	1
40	40 87 938 Screw B205, B235R	Screw	B205, B235R	2
41	91 73 386 55 557 008 Mass air flow sensor B205, B235R	Mass air flow sensor	B205, B235R	1
