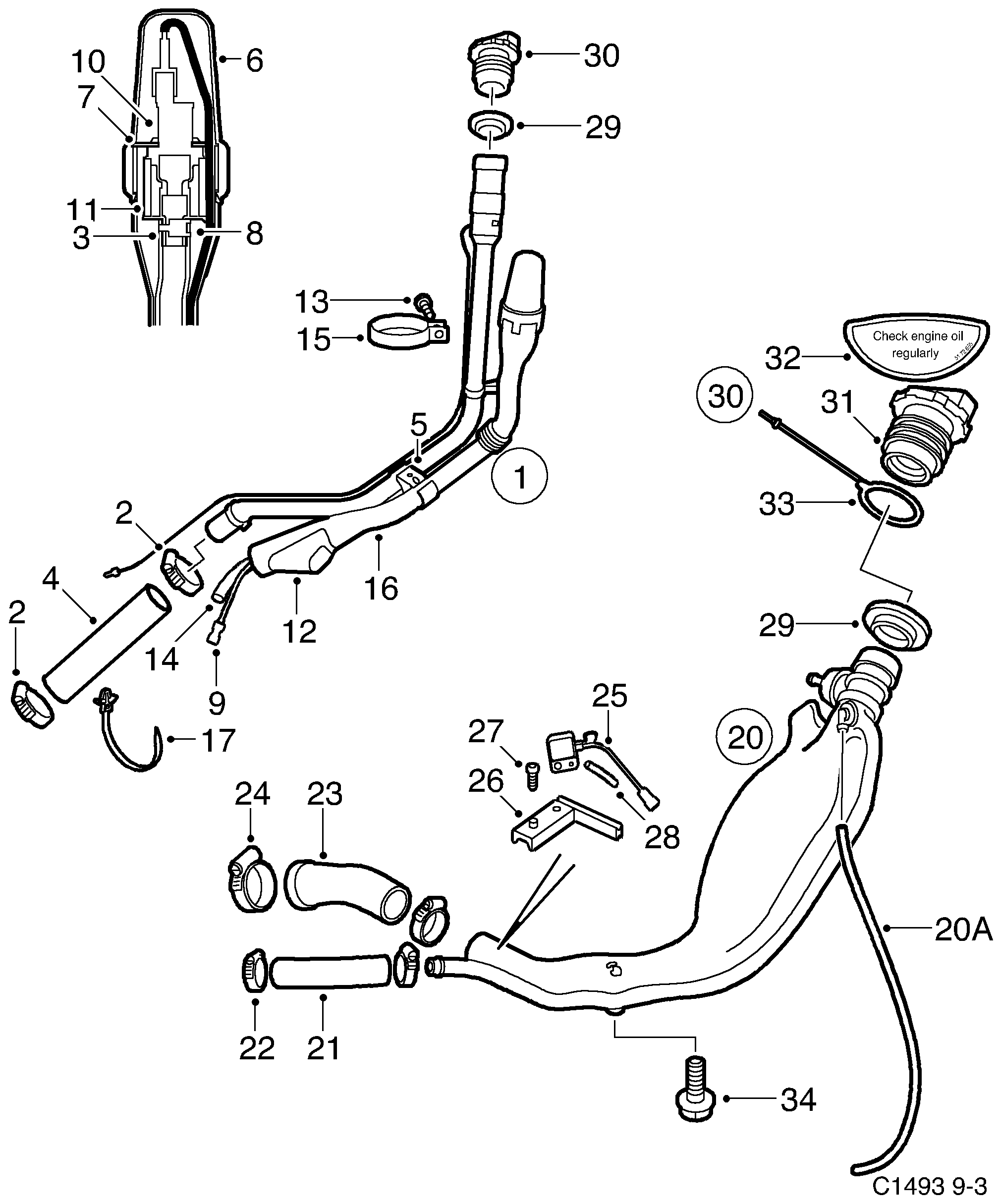

550: Engine - Fuel system - Filler pipe
(2000 - 2003) | For 9-3 (9400) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 51 94 147 53 22 292 Filler pipe 2000-2000, LHD • PETROL, B205, B235 | 1 | |
| 1 | 51 95 672 53 22 300 Filler pipe 2000-2000 • PETROL, B205, B235 | 1 | |
| 1 | 51 94 121 53 23 381 Filler pipe PETROL, B205, B235 • Also for B204E Sweden. | 1 | |
| 1 | 49 64 136 51 93 008 Filler pipe 2000-2000 • PETROL, B205, B235 • Also for B204E Sweden. | 1 | |
| 1 | 51 94 139 51 93 016 Filler pipe 2000-2000 • PETROL, B205, B235 | 1 | |
| 1 | 49 64 276 53 23 407 Filler pipe PETROL, B205, B235 | 1 | |
| 2 | 44 41 697 Hose clamp | 1 | |
| 3 | 45 76 583 90 467 194 Hose clamp | 1 | |
| 4 | 47 27 269 Hose | 1 | |
| 5 | 47 28 093 Hose clamp | 1 | |
| 6 | 47 28 515 Cover | 1 | |
| 7 | 47 28 523 Washer | 1 | |
| 8 | 47 28 531 Filter retainer | 1 | |
| 9 | 47 28 549 Connection | 1 | |
| 10 | 47 29 091 49 66 826 Shut-off valve 2000-2000 | 1 | |
| 11 | 47 29 109 Filter | 1 | |
| 12 | 48 76 025 Seal | 1 | |
| 13 | 49 40 631 Screw | 1 | |
| 14 | 51 93 586 Hose | 1 | |
| 15 | 51 93 594 Hose clamp | 1 | |
| 16 | 51 95 300 Air tube | 1 | |
| 17 | 92 150 191 11 900 513 Tensioning band | 1 | |
| 20 | 51 94 154 Filler pipe PETROL, B204, DIESEL • Not for B204E Sweden.... | 1 | |
| 20 | 43 97 030 Filler pipe PETROL, B204 • For cars with lead... | 1 | |
| 20 | 51 94 162 54 62 346 Filler pipe 2000-2000 • PETROL, B204 • Not for B204E Sweden. | 1 | |
| 20 | 46 22 593 Filler pipe 2000-2000 • PETROL, B204 • Not for B204E Sweden. | 1 | |
| 20A | 44 45 631 Hose Not as separate spare... | 1 | |
| 21 | 44 40 244 Hose 2000-2000 | 1 | |
| 22 | 45 26 836 Hose clamp | 1 | |
| 23 | 46 22 015 Hose 2000-2000 | 1 | |
| 24 | 46 22 304 Hose clamp | 1 | |
| 26 | 43 96 263 Bracket LHD | 1 | |
| 27 | 79 67 771 Screw LHD | 1 | |
| 28 | 43 96 313 Hose LHD | 1 | |
| 25 | 44 44 758 Pressure sensor LHD • NLS | 1 | |
| 29 | 51 95 201 Sealing collar | 1 | |
| 31 | 43 97 048 Filler cap 2000-2000 • PETROL | 1 | |
| 31 | 47 27 038 Filler cap 2000-2000, LHD • PETROL, B204E • Name of the substance... | 1 | |
| 30 | 53 36 060 Filler cap 2000-2002 • DIESEL | 1 | |
| 31 | 53 36 052 Filler cap 2000-2002 • DIESEL | 1 | |
| 32 | 51 72 655 Label 2000-2002 • DIESEL | 1 | |
| 34 | 49 40 896 92 152 212 Screw | 1 |
