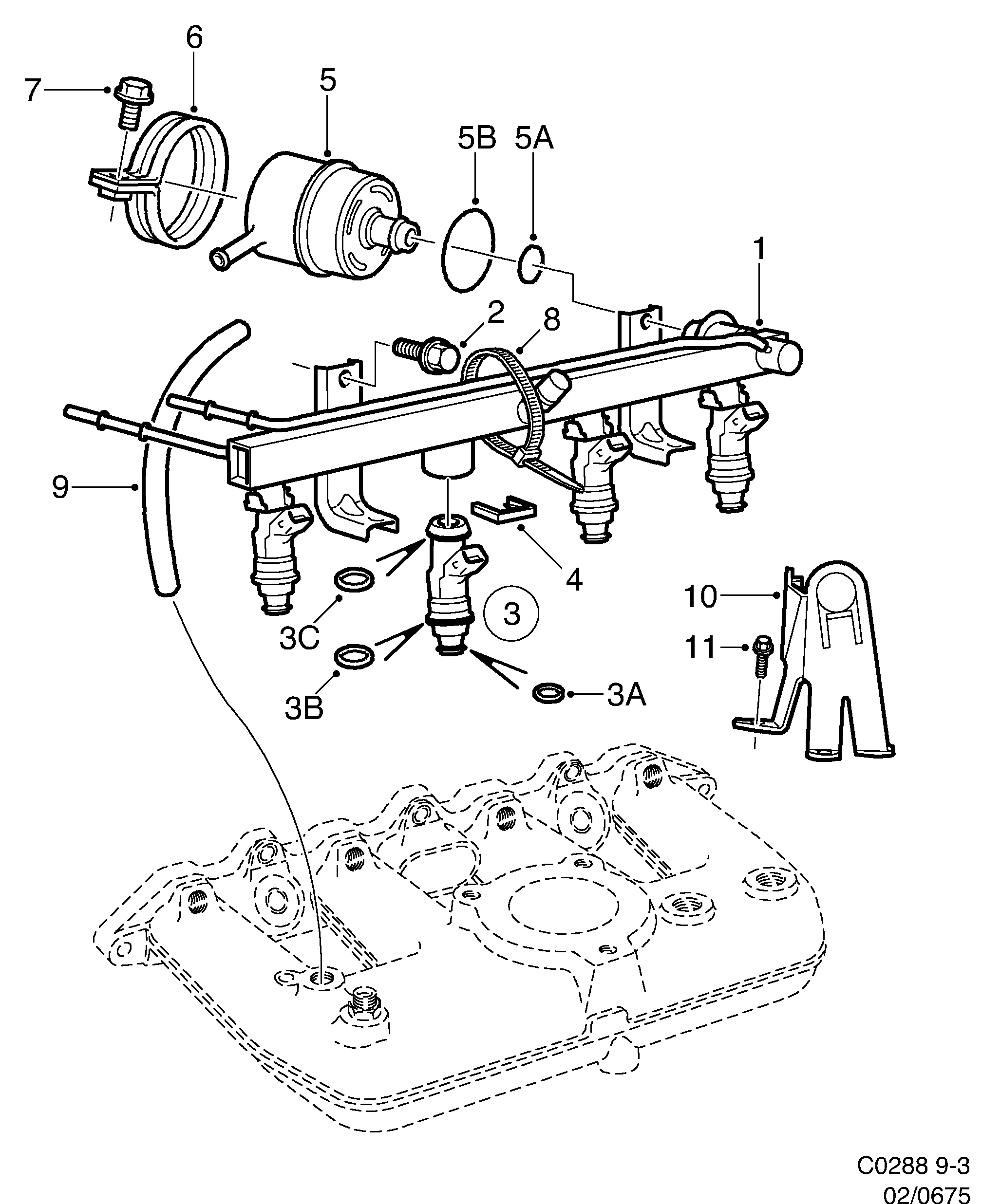

675: Engine - Fuel system - Fuel rail
(1999 - 2002 | PETROL) | For 9-3 (9400) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 92 493 Distribution pipe 2000-2001 • PETROL | 1 | |
| 2 | 79 78 091 11 900 353 Screw PETROL | 2 | |
| 3 | 91 81 322 55 557 323 Injection valve 2000-2002 • PETROL | 4 | |
| 3A | 91 97 674 30 580 305 O-ring PETROL | 1 | |
| 3B | 91 97 690 30 580 306 O-ring PETROL | 1 | |
| 3C | 91 97 708 90 541 911 O-ring PETROL | 1 | |
| 5 | 45 03 793 91 18 850 Fuel pressure regulator -2001 • PETROL | 1 | |
| 5A | 90 511 960 Washer PETROL • (47 70 434) | 1 | |
| 5B | 90 511 961 O-ring PETROL | 1 | |
| 6 | 45 03 819 95 42 424 Clamp -2001 • PETROL | 1 | |
| 7 | 79 78 380 11 900 379 Screw PETROL | 1 | |
| 8 | 79 71 872 Tensioning band PETROL | 2 | |
| 9 | 91 36 243 Vacuum hose PETROL • Sold in 5M lengths | 1 | |
| 10 | 91 75 035 55 558 301 Bracket PETROL | 1 | |
| 11 | 79 78 109 11 900 354 Screw 2000-2000 • PETROL | 3 | |
| 11 | 79 72 466 Screw 2000- • PETROL | 1 |
