Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-3 (9400) 2000?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-3 (9400) 2000. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

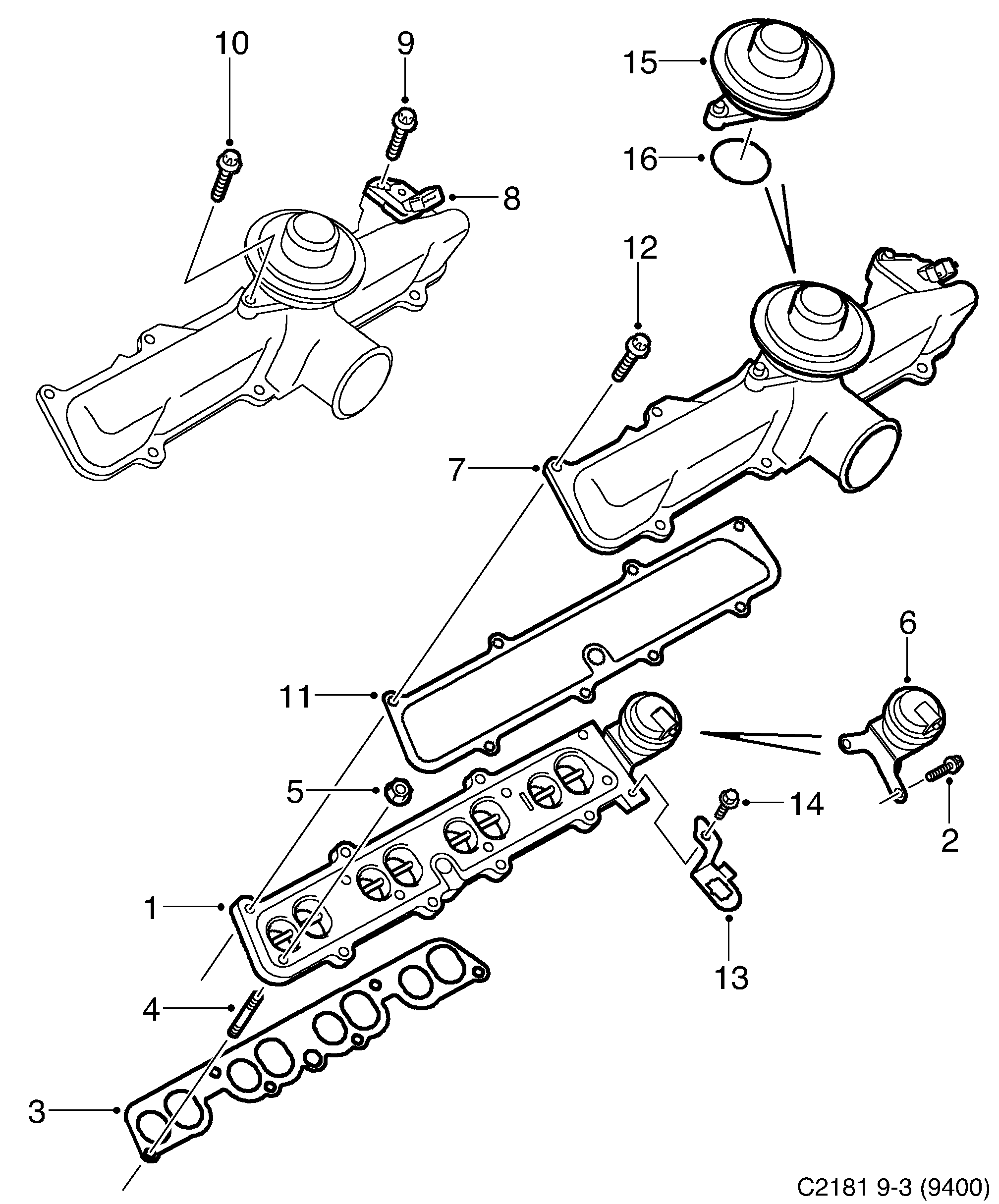

Pos.	Part No.	Description	Usage	Qty
1	53 44 353 55 351 530 Intake manifold 2000-2001 • D223L	Intake manifold	2000-2001 D223L	1
2	45 03 405 11 093 881 Screw D223L	Screw	D223L	2
3	95 43 844 90 500 940 Gasket D223L • (47 73 008)	Gasket	D223L (47 73 008)	1
4	95 42 879 91 28 191 Stud D223L • (47 73 479)	Stud	D223L (47 73 479)	7
5	95 43 851 90 502 418 Nut D223L • (47 73 016)	Nut	D223L (47 73 016)	7
6	53 33 950 Vacuum box D223L	Vacuum box	D223L	1
7	47 72 992 91 17 505 Intake manifold D223L	Intake manifold	D223L	1
8	47 73 800 Vacuum switch D223L	Vacuum switch	D223L	1
9	45 00 351 11 093 961 Screw D223L	Screw	D223L	1
10	45 00 351 11 093 961 Screw D223L	Screw	D223L	2
11	47 73 024 90 572 108 Gasket D223L	Gasket	D223L	1
12	45 02 274 11 093 872 Screw D223L	Screw	D223L	8
13	47 80 763 90 568 019 Bracket D223L	Bracket	D223L	1
14	79 78 091 11 900 353 Screw D223L	Screw	D223L	1
15	53 38 033 Exhaust gas recirculation valve D223L	Exhaust gas recirculation valve	D223L	1
16	53 38 215 O-ring D223L	O-ring	D223L	1

Pos.	Part No.	Description	Usage	Qty
1	53 44 353 55 351 530 Intake manifold 2000-2001 • D223L	Intake manifold	2000-2001 D223L	1
2	45 03 405 11 093 881 Screw D223L	Screw	D223L	2
3	95 43 844 90 500 940 Gasket D223L • (47 73 008)	Gasket	D223L (47 73 008)	1
4	95 42 879 91 28 191 Stud D223L • (47 73 479)	Stud	D223L (47 73 479)	7
5	95 43 851 90 502 418 Nut D223L • (47 73 016)	Nut	D223L (47 73 016)	7
6	53 33 950 Vacuum box D223L	Vacuum box	D223L	1
7	47 72 992 91 17 505 Intake manifold D223L	Intake manifold	D223L	1
8	47 73 800 Vacuum switch D223L	Vacuum switch	D223L	1
9	45 00 351 11 093 961 Screw D223L	Screw	D223L	1
10	45 00 351 11 093 961 Screw D223L	Screw	D223L	2
11	47 73 024 90 572 108 Gasket D223L	Gasket	D223L	1
12	45 02 274 11 093 872 Screw D223L	Screw	D223L	8
13	47 80 763 90 568 019 Bracket D223L	Bracket	D223L	1
14	79 78 091 11 900 353 Screw D223L	Screw	D223L	1
15	53 38 033 Exhaust gas recirculation valve D223L	Exhaust gas recirculation valve	D223L	1
16	53 38 215 O-ring D223L	O-ring	D223L	1

800: Engine - Intake and exhaust system - Inlet pipe
