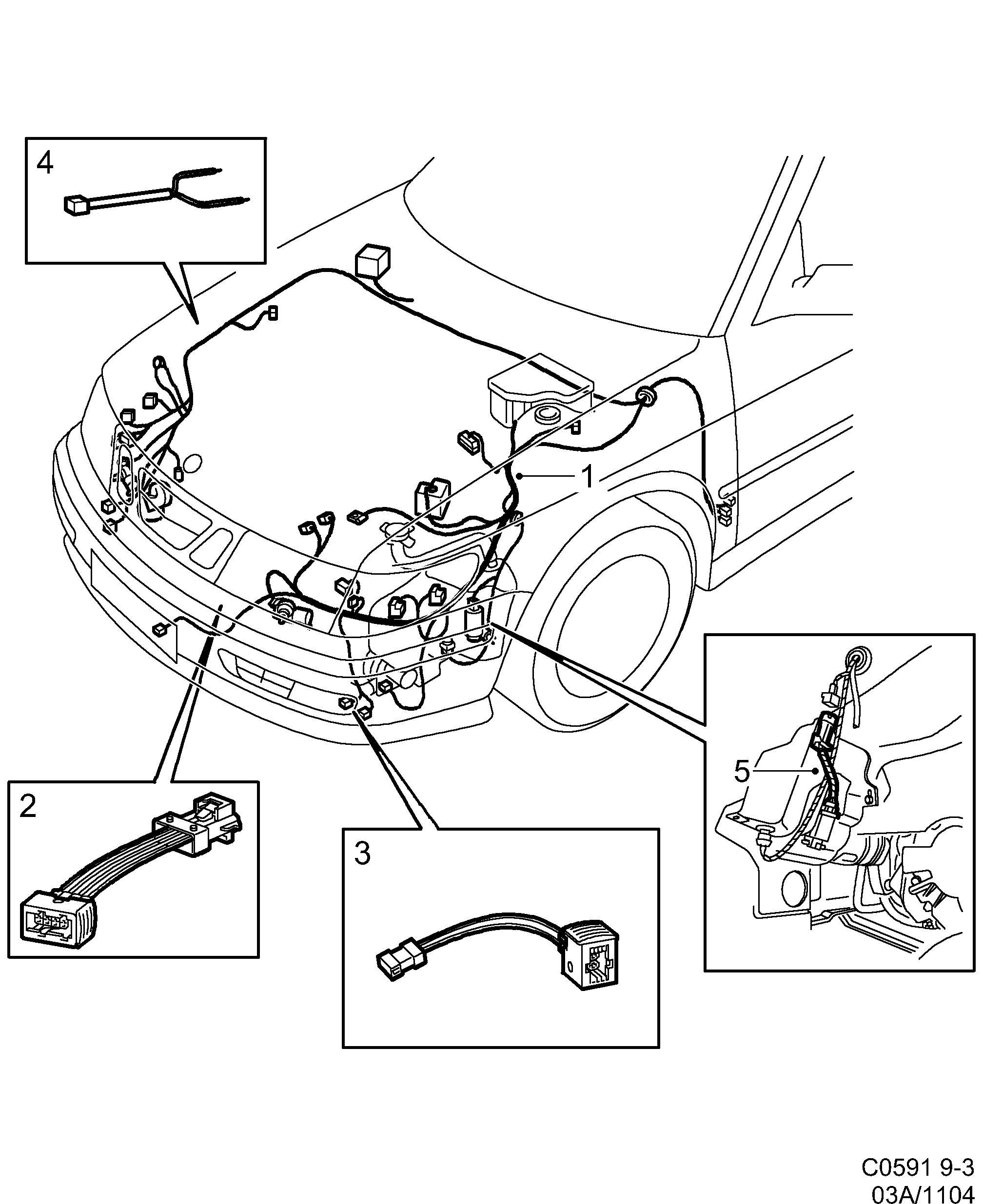

1104: Electrical, general - Wiring and fuses - Front
(2000) | For 9-3 (9400) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 51 04 583 Cable harness B204I, B204E | 1 | |
| 1 | 51 04 591 Cable harness B235R, B205L, B205R | 1 | |
| 1 | 51 04 609 Cable harness D223L | 1 | |
| 2 | 47 37 417 Cable harness cooling fan | 1 | |
| 3 | 48 06 428 Cable harness vacuum pump | 1 | |
| 4 | 49 46 075 Cable harness LHD • LH, ABS | 1 | |
| 4 | 49 46 083 Cable harness RHD • RH, ABS | 1 | |
| 5 | 46 74 248 Cable harness washer pump | 1 |
