Question 1

Where to find the exploded diagram for Wiring and fuses on my Saab 9-3 (9400) 2000?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Wiring and fuses on Saab 9-3 (9400) 2000. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Wiring and fuses?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Wiring and fuses?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Wiring and fuses, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Wiring and fuses suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	49 47 941 Cable harness B204I • engine	Cable harness	B204I engine	1
1	49 47 958 Cable harness B204I • engine	Cable harness	B204I engine	1
2	49 46 794 Cable harness B204E • engine	Cable harness	B204E engine	1
2	49 46 802 Cable harness B204E • engine	Cable harness	B204E engine	1
2	49 46 828 Cable harness B204E • engine	Cable harness	B204E engine	1
2	49 46 836 Cable harness B204E • engine	Cable harness	B204E engine	1
2	51 07 073 30 581 407 Cable harness B235R, B205L, B205R • engine	Cable harness	B235R, B205L, B205R engine	1
5	46 65 998 Ground cable	Ground cable		1
6	79 77 952 11 900 452 Hexagon nut	Hexagon nut		1
7	79 77 929 11 900 451 Nut	Nut		1
8	49 46 778 Cable harness D223L	Cable harness	D223L	1

Pos.	Part No.	Description	Usage	Qty
1	49 47 941 Cable harness B204I • engine	Cable harness	B204I engine	1
1	49 47 958 Cable harness B204I • engine	Cable harness	B204I engine	1
2	49 46 794 Cable harness B204E • engine	Cable harness	B204E engine	1
2	49 46 802 Cable harness B204E • engine	Cable harness	B204E engine	1
2	49 46 828 Cable harness B204E • engine	Cable harness	B204E engine	1
2	49 46 836 Cable harness B204E • engine	Cable harness	B204E engine	1
2	51 07 073 30 581 407 Cable harness B235R, B205L, B205R • engine	Cable harness	B235R, B205L, B205R engine	1
5	46 65 998 Ground cable	Ground cable		1
6	79 77 952 11 900 452 Hexagon nut	Hexagon nut		1
7	79 77 929 11 900 451 Nut	Nut		1
8	49 46 778 Cable harness D223L	Cable harness	D223L	1

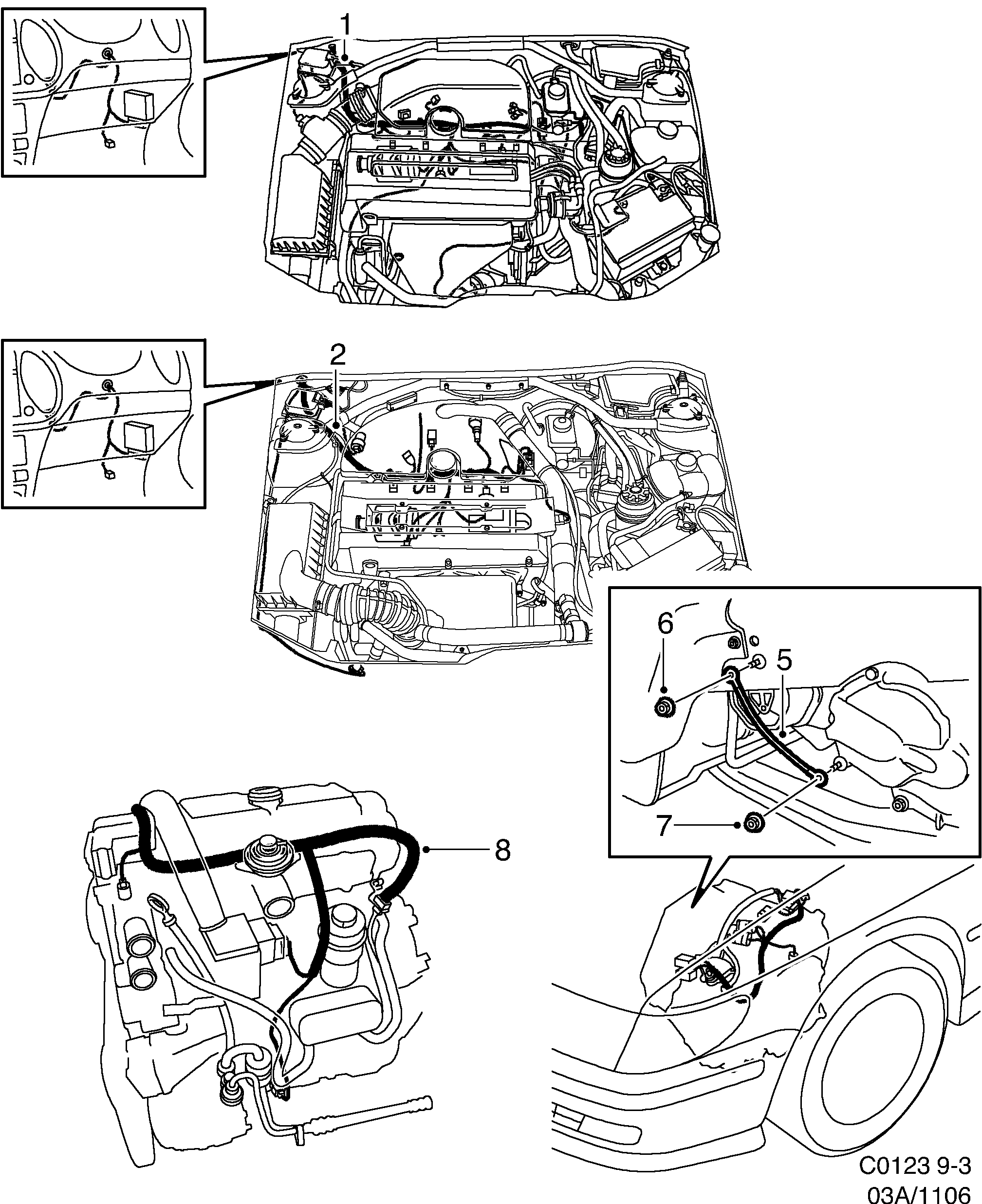

1106: Electrical, general - Wiring and fuses - Engine, gearbox
