Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 9-3 (9400) 2000?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9-3 (9400) 2000. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	50 44 979 Mounting kit Kit and components can...	Mounting kit	Kit and components can...	X
2	50 43 443 53 70 556 Electronic unit	Electronic unit		1
3	50 43 450 Electronic unit telephone unit	Electronic unit	telephone unit	1
4	52 62 076 Electronic unit (50 43 484) \|...	Electronic unit	(50 43 484) \|...	1
5	50 43 674 Bracket	Bracket		1
6	50 43 682 Clip	Clip		1
7	50 43 732 Cable harness	Cable harness		1
8	50 44 722 Button	Button		1
9	52 60 310 Electronic unit antenna ONSTAR	Electronic unit	antenna ONSTAR	1
10	52 64 072 Tensioning band	Tensioning band		4
11	52 64 080 Splice	Splice		4
12	52 64 098 Splice	Splice		4
13	52 64 106 Screw	Screw		1
14	52 64 114 Nut	Nut		1
15	52 64 122 Screw	Screw		5
	52 60 609 Assembly instructions Not as separate spare...	Assembly instructions	Not as separate spare...	1
	52 61 201 Instruction manual Not as separate spare...	Instruction manual	Not as separate spare...	1
	52 61 219 Instructions Not as separate spare...	Instructions	Not as separate spare...	1
20	50 44 987 Mounting kit Kit and components can...	Mounting kit	Kit and components can...	X
21	50 43 443 53 70 556 Electronic unit	Electronic unit		1
22	50 43 450 Electronic unit telephone unit	Electronic unit	telephone unit	1
23	50 43 674 Bracket	Bracket		1
24	50 43 682 Clip	Clip		1
25	52 61 326 Cable harness	Cable harness		1
26	50 44 722 Button	Button		1
27	50 43 484 Electronic unit (52 60 245) \|...	Electronic unit	(52 60 245) \|...	1
28	52 64 692 Electronic unit antenna ONSTAR	Electronic unit	antenna ONSTAR	1
29	52 60 302 Microphone	Microphone		1
30	52 62 118 Antenna cable	Antenna cable		1
31	52 64 072 Tensioning band	Tensioning band		4
32	52 64 080 Splice	Splice		4
33	52 64 098 Splice	Splice		4
34	52 64 106 Screw	Screw		1
35	52 64 114 Nut	Nut		1
36	52 64 122 Screw	Screw		5
	52 60 617 Assembly instructions Not as separate spare...	Assembly instructions	Not as separate spare...	1
	Cable harnessWiring and fuses instrument	Cable harnessWiring and fuses instrument
	Cable harnessWiring and fuses rear	Cable harnessWiring and fuses rear

Pos.	Part No.	Description	Usage	Qty
1	50 44 979 Mounting kit Kit and components can...	Mounting kit	Kit and components can...	X
2	50 43 443 53 70 556 Electronic unit	Electronic unit		1
3	50 43 450 Electronic unit telephone unit	Electronic unit	telephone unit	1
4	52 62 076 Electronic unit (50 43 484) \|...	Electronic unit	(50 43 484) \|...	1
5	50 43 674 Bracket	Bracket		1
6	50 43 682 Clip	Clip		1
7	50 43 732 Cable harness	Cable harness		1
8	50 44 722 Button	Button		1
9	52 60 310 Electronic unit antenna ONSTAR	Electronic unit	antenna ONSTAR	1
10	52 64 072 Tensioning band	Tensioning band		4
11	52 64 080 Splice	Splice		4
12	52 64 098 Splice	Splice		4
13	52 64 106 Screw	Screw		1
14	52 64 114 Nut	Nut		1
15	52 64 122 Screw	Screw		5
	52 60 609 Assembly instructions Not as separate spare...	Assembly instructions	Not as separate spare...	1
	52 61 201 Instruction manual Not as separate spare...	Instruction manual	Not as separate spare...	1
	52 61 219 Instructions Not as separate spare...	Instructions	Not as separate spare...	1
20	50 44 987 Mounting kit Kit and components can...	Mounting kit	Kit and components can...	X
21	50 43 443 53 70 556 Electronic unit	Electronic unit		1
22	50 43 450 Electronic unit telephone unit	Electronic unit	telephone unit	1
23	50 43 674 Bracket	Bracket		1
24	50 43 682 Clip	Clip		1
25	52 61 326 Cable harness	Cable harness		1
26	50 44 722 Button	Button		1
27	50 43 484 Electronic unit (52 60 245) \|...	Electronic unit	(52 60 245) \|...	1
28	52 64 692 Electronic unit antenna ONSTAR	Electronic unit	antenna ONSTAR	1
29	52 60 302 Microphone	Microphone		1
30	52 62 118 Antenna cable	Antenna cable		1
31	52 64 072 Tensioning band	Tensioning band		4
32	52 64 080 Splice	Splice		4
33	52 64 098 Splice	Splice		4
34	52 64 106 Screw	Screw		1
35	52 64 114 Nut	Nut		1
36	52 64 122 Screw	Screw		5
	52 60 617 Assembly instructions Not as separate spare...	Assembly instructions	Not as separate spare...	1
	Cable harnessWiring and fuses instrument	Cable harnessWiring and fuses instrument
	Cable harnessWiring and fuses rear	Cable harnessWiring and fuses rear

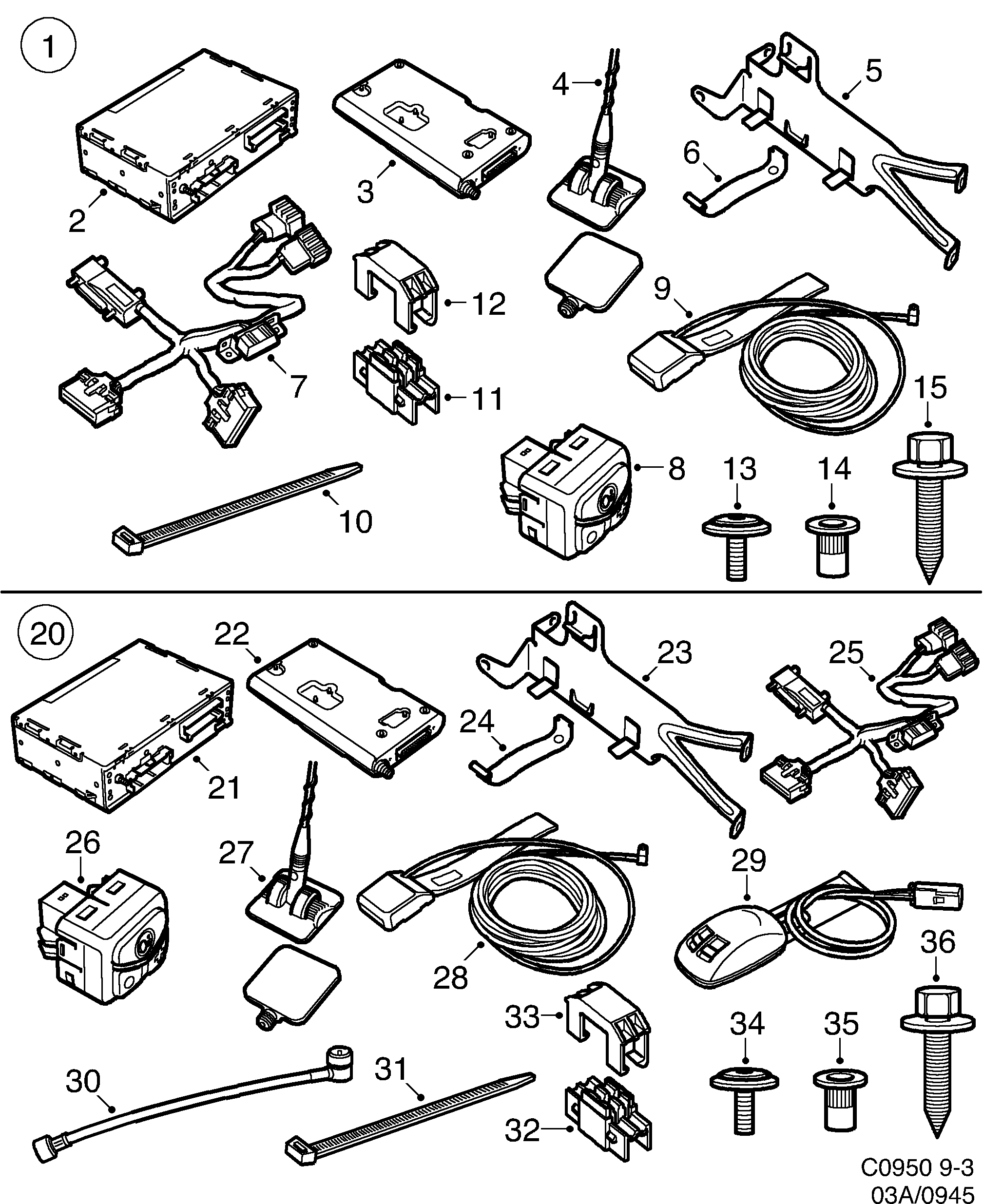

945: Electrical, general - Electric equipment, other - ONSTAR
