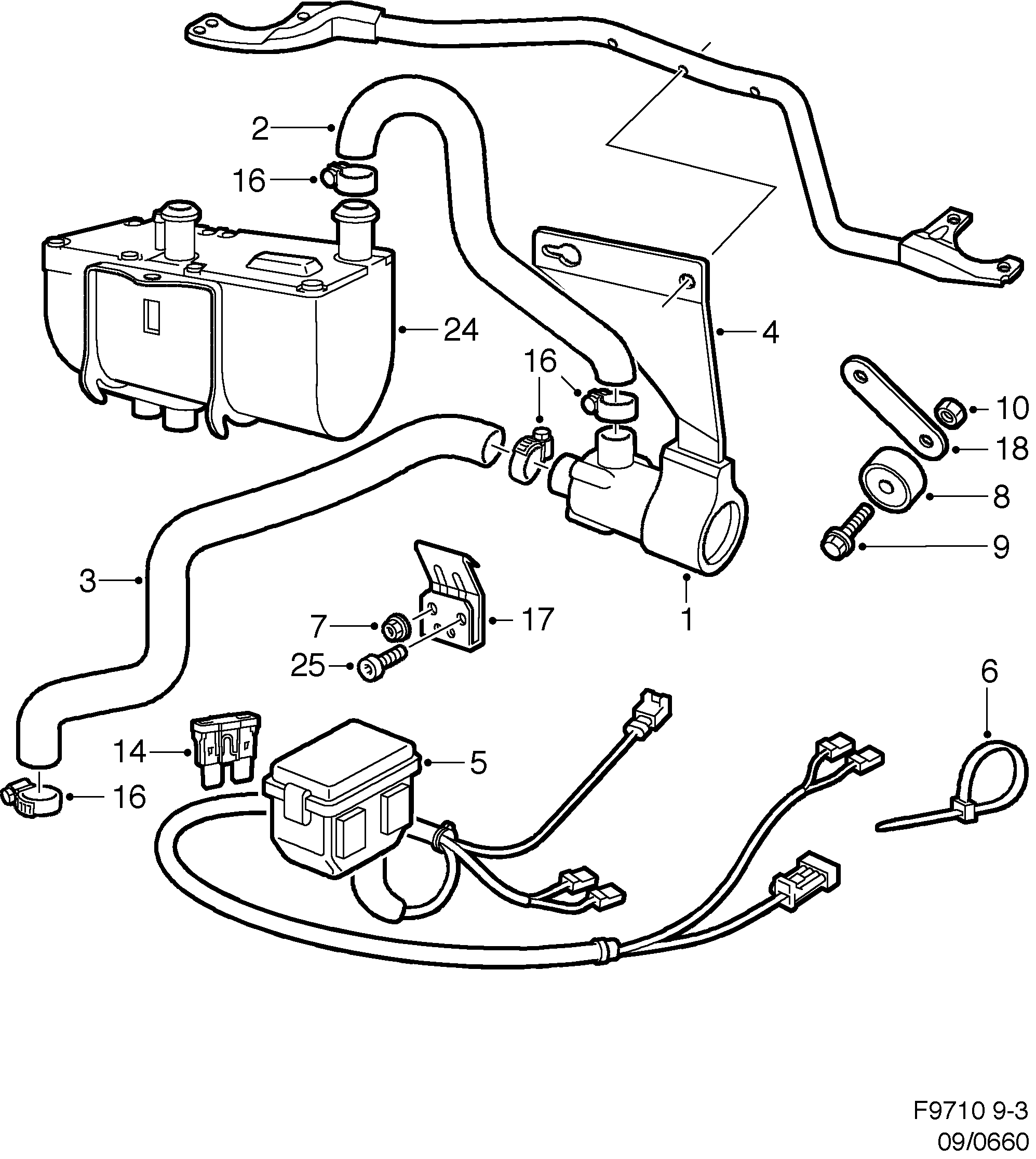

660: Accessories - Accessories body - Climate control - Parking heater
(1998 - 2002 | D223L) | For 9-3 (9400) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
400110821 Parking heater kit LHD • D223L • HEAT/VENT, AC | X | ||
400110482 Parking heater kit LHD • D223L • ACC | X | ||
400110847 Parking heater kit RHD • D223L • HEAT/VENT, AC | X | ||
400110839 Parking heater kit RHD • D223L • ACC | X | ||
| 1 | 43 95 612 Circulation pump D223L | 1 | |
| 2 | 47 27 483 Radiator hose LHD • D223L | 1 | |
| 2 | 47 27 525 Radiator hose RHD • D223L | 1 | |
| 3 | 47 27 517 400128153 Radiator hose 1998-2000 • D223L | 1 | |
| 4 | 47 29 240 Bracket LHD • D223L | 1 | |
| 4 | 51 95 151 Bracket RHD • D223L | 1 | |
| 5 | Cable harness D223L • Not as separate spare... | 1 | |
41 13 650 12 788 998 Connector housing D223L • 4-pin, male | 1 | ||
| 6 | 92 150 191 11 900 513 Tensioning band D223L | 5 | |
| 7 | 79 77 929 11 900 451 Nut D223L | 1 | |
| 8 | 260321146 Resistor D223L • HEAT/VENT, AC | 1 | |
| 9 | 79 78 398 Screw D223L • HEAT/VENT, AC | 1 | |
| 10 | 79 77 911 32 026 207 Nut D223L • HEAT/VENT, AC | 1 | |
| 14 | 79 74 637 Fuse D223L • 10A | 1 | |
| 14 | 79 74 652 Fuse D223L • 20A | 1 | |
| 16 | 45 76 609 90 572 594 Hose clamp D223L | 2 | |
| 17 | 40 63 327 Bracket D223L | 1 | |
| 18 | 400103107 Bracket D223L | 1 | |
| 24 | D223L | ||
| 25 | 79 82 325 92 153 216 Screw D223L | 2 |
