Question 1

Where to find the exploded diagram for Engine bay cover on my Saab 9-3 (9400) 2001?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Engine bay cover on Saab 9-3 (9400) 2001. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Engine bay cover?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Engine bay cover?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Engine bay cover, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Engine bay cover suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

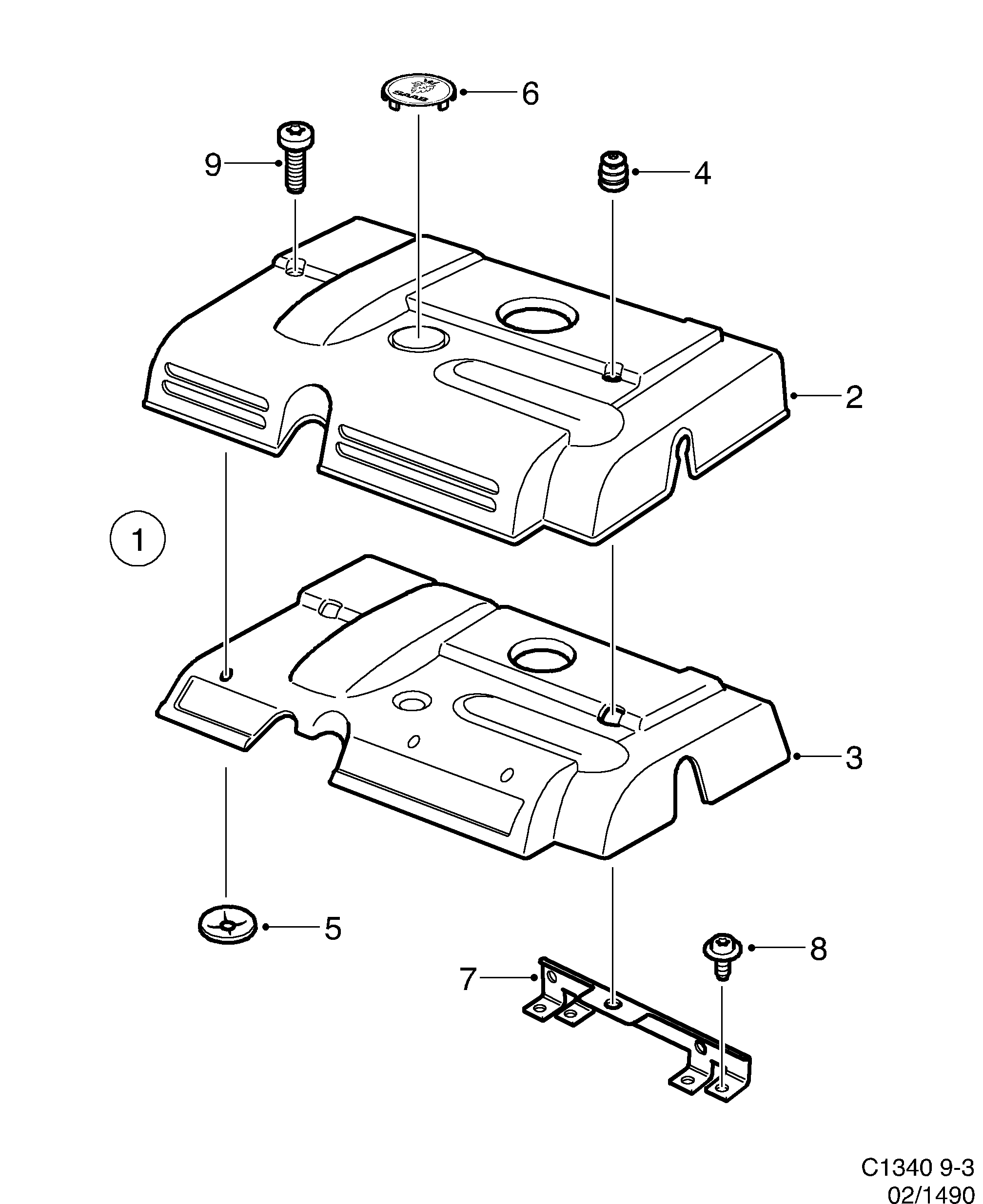

Pos.	Part No.	Description	Usage	Qty
1	51 95 417 Cover D223L	Cover	D223L	1
2	51 95 979 Cover D223L • Not as separate spare...	Cover	D223L Not as separate spare...	1
3	51 95 961 Sound insulation D223L • Not as separate spare...	Sound insulation	D223L Not as separate spare...	1
4	51 95 425 Attachment D223L	Attachment	D223L	3
5	51 94 709 Lock washer D223L	Lock washer	D223L	12
6	53 40 492 Emblem D223L	Emblem	D223L	1
7	51 95 433 79 71 294 Bracket -2002 • D223L	Bracket	-2002 D223L	1
8	79 73 001 Screw -2002 • D223L	Screw	-2002 D223L	2
9	40 87 920 92 152 043 Screw -2002 • D223L	Screw	-2002 D223L	3

Pos.	Part No.	Description	Usage	Qty
1	51 95 417 Cover D223L	Cover	D223L	1
2	51 95 979 Cover D223L • Not as separate spare...	Cover	D223L Not as separate spare...	1
3	51 95 961 Sound insulation D223L • Not as separate spare...	Sound insulation	D223L Not as separate spare...	1
4	51 95 425 Attachment D223L	Attachment	D223L	3
5	51 94 709 Lock washer D223L	Lock washer	D223L	12
6	53 40 492 Emblem D223L	Emblem	D223L	1
7	51 95 433 79 71 294 Bracket -2002 • D223L	Bracket	-2002 D223L	1
8	79 73 001 Screw -2002 • D223L	Screw	-2002 D223L	2
9	40 87 920 92 152 043 Screw -2002 • D223L	Screw	-2002 D223L	3

1490: Engine - Engine bay cover
