Part No.	Description	Usage	Qty
94 82 993 Basic engine 2000-2003 • B205 • Also available as exchange...	Basic engine	2000-2003 B205 Also available as exchange...	X
94 83 140 Basic engine B235R	Basic engine	B235R	X
47 73 701 93 172 481 Basic engine -2001 • D223L	Basic engine	-2001 D223L	X
53 43 025 93 172 459 Basic engine 2001-2002 • D223L • (47 74 303)	Basic engine	2001-2002 D223L (47 74 303)	X
Cylinder block 4-CYL	Cylinder block	4-CYL
Crankshaft 4-CYL	Crankshaft	4-CYL
Connecting rod 4-CYL	Connecting rod	4-CYL
Piston 4-CYL	Piston	4-CYL
Timing gear casing 4-CYL, PETROL	Timing gear casing	4-CYL, PETROL
Transmission 4-CYL, PETROL	Transmission	4-CYL, PETROL
Coolant pump 4-CYL, PETROL	Coolant pump	4-CYL, PETROL
Oil pump 4-CYL, PETROL	Oil pump	4-CYL, PETROL
Flywheel housing 4-CYL, PETROL	Flywheel housing	4-CYL, PETROL
93 99 007 Engine 2001-2001 • B205E	Engine	2001-2001 B205E	X
93 99 015 Engine 2001-2001 • B205E	Engine	2001-2001 B205E	X
93 99 023 Engine 2001-2001 • B205L	Engine	2001-2001 B205L	X
93 99 031 Engine 2001-2001 • B205L	Engine	2001-2001 B205L	X
93 99 049 Engine 2001-2001 • B205R	Engine	2001-2001 B205R	X
93 99 056 Engine 2001-2001 • B205R	Engine	2001-2001 B205R	X
93 99 064 Engine 2001-2001 • B235R	Engine	2001-2001 B235R	X
49 64 219 Engine 2000-2001 • DIESEL	Engine	2000-2001 DIESEL	X
51 95 458 Engine 2001-2001 • DIESEL	Engine	2001-2001 DIESEL	X
Cylinder block	Cylinder block
Crankshaft	Crankshaft
Connecting rod	Connecting rod
Piston	Piston
Timing gear casing	Timing gear casing
Transmission	Transmission
Coolant pump	Coolant pump
Flywheel housing	Flywheel housing
Cylinder head	Cylinder head
Valve cover	Valve cover
Sump	Sump
Flywheel	Flywheel
Vibration damper	Vibration damper
Camshaft	Camshaft
Intake manifold	Intake manifold
Exhaust manifold	Exhaust manifold
Oil filter	Oil filter
Oil filler pipe	Oil filler pipe
Crank case ventilation	Crank case ventilation
Thermostat housing	Thermostat housing
Multiport fuel injection	Multiport fuel injection
Ignition system	Ignition system
Clutch	Clutch

Part No.	Description	Usage	Qty
94 82 993 Basic engine 2000-2003 • B205 • Also available as exchange...	Basic engine	2000-2003 B205 Also available as exchange...	X
94 83 140 Basic engine B235R	Basic engine	B235R	X
47 73 701 93 172 481 Basic engine -2001 • D223L	Basic engine	-2001 D223L	X
53 43 025 93 172 459 Basic engine 2001-2002 • D223L • (47 74 303)	Basic engine	2001-2002 D223L (47 74 303)	X
Cylinder block 4-CYL	Cylinder block	4-CYL
Crankshaft 4-CYL	Crankshaft	4-CYL
Connecting rod 4-CYL	Connecting rod	4-CYL
Piston 4-CYL	Piston	4-CYL
Timing gear casing 4-CYL, PETROL	Timing gear casing	4-CYL, PETROL
Transmission 4-CYL, PETROL	Transmission	4-CYL, PETROL
Coolant pump 4-CYL, PETROL	Coolant pump	4-CYL, PETROL
Oil pump 4-CYL, PETROL	Oil pump	4-CYL, PETROL
Flywheel housing 4-CYL, PETROL	Flywheel housing	4-CYL, PETROL
93 99 007 Engine 2001-2001 • B205E	Engine	2001-2001 B205E	X
93 99 015 Engine 2001-2001 • B205E	Engine	2001-2001 B205E	X
93 99 023 Engine 2001-2001 • B205L	Engine	2001-2001 B205L	X
93 99 031 Engine 2001-2001 • B205L	Engine	2001-2001 B205L	X
93 99 049 Engine 2001-2001 • B205R	Engine	2001-2001 B205R	X
93 99 056 Engine 2001-2001 • B205R	Engine	2001-2001 B205R	X
93 99 064 Engine 2001-2001 • B235R	Engine	2001-2001 B235R	X
49 64 219 Engine 2000-2001 • DIESEL	Engine	2000-2001 DIESEL	X
51 95 458 Engine 2001-2001 • DIESEL	Engine	2001-2001 DIESEL	X
Cylinder block	Cylinder block
Crankshaft	Crankshaft
Connecting rod	Connecting rod
Piston	Piston
Timing gear casing	Timing gear casing
Transmission	Transmission
Coolant pump	Coolant pump
Flywheel housing	Flywheel housing
Cylinder head	Cylinder head
Valve cover	Valve cover
Sump	Sump
Flywheel	Flywheel
Vibration damper	Vibration damper
Camshaft	Camshaft
Intake manifold	Intake manifold
Exhaust manifold	Exhaust manifold
Oil filter	Oil filter
Oil filler pipe	Oil filler pipe
Crank case ventilation	Crank case ventilation
Thermostat housing	Thermostat housing
Multiport fuel injection	Multiport fuel injection
Ignition system	Ignition system
Clutch	Clutch

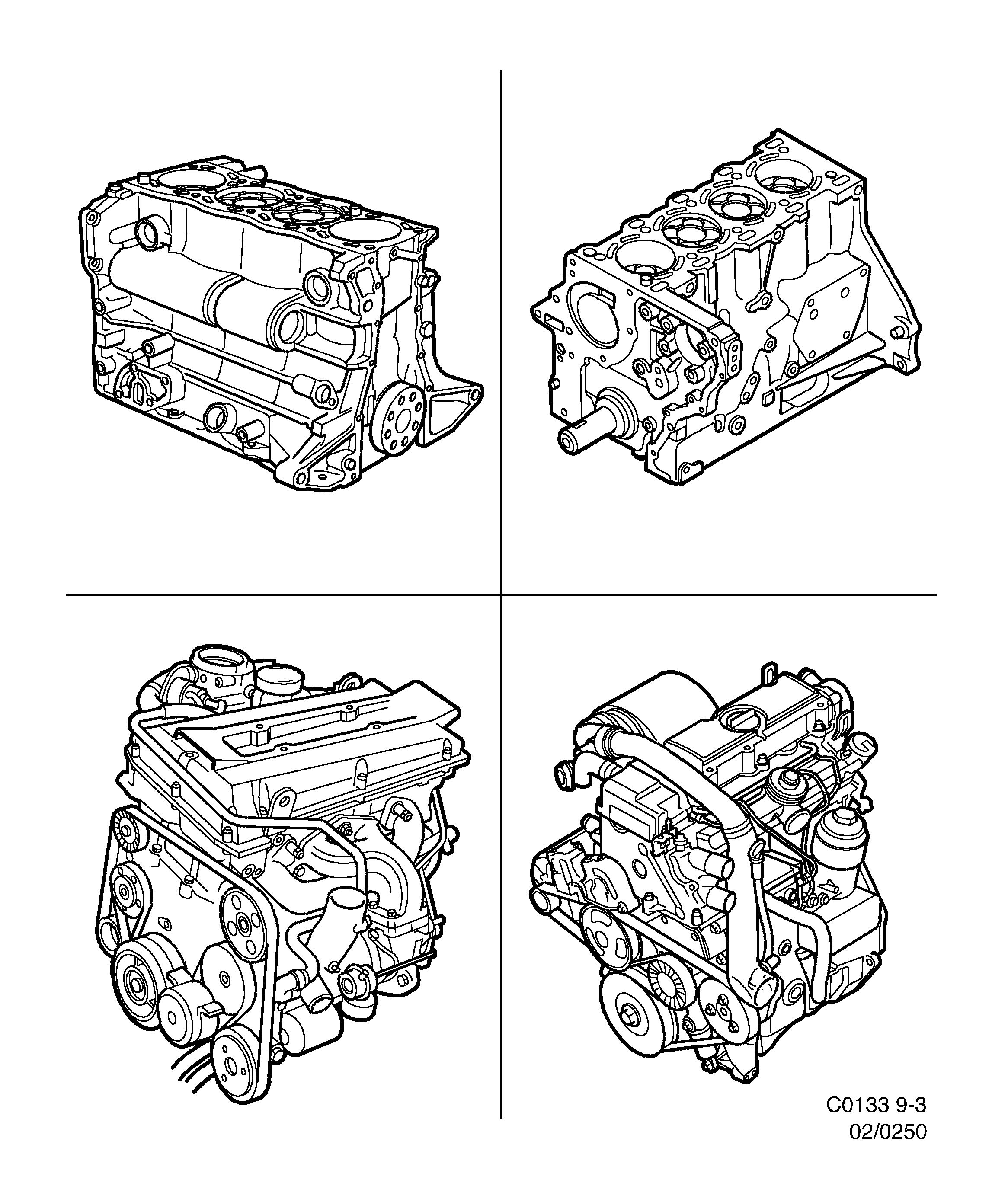

250: Engine - Short block - Short engine - Engine
