Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-3 (9400) 2001?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-3 (9400) 2001. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

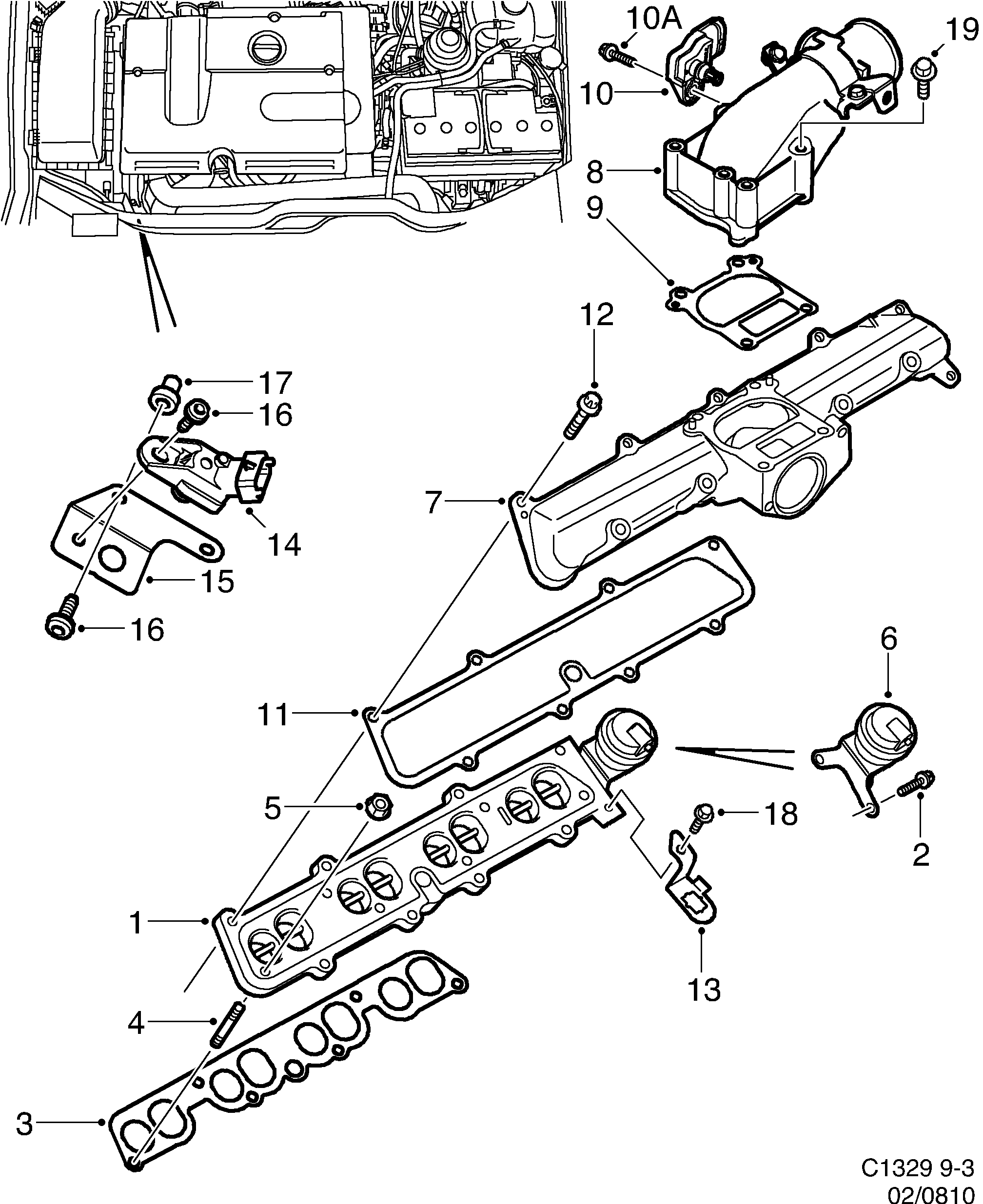

Pos.	Part No.	Description	Usage	Qty
1	95 43 836 55 351 529 Intake manifold D223L	Intake manifold	D223L	1
2	45 03 405 11 093 881 Screw D223L	Screw	D223L	2
3	95 43 844 90 500 940 Gasket D223L • (47 73 008)	Gasket	D223L (47 73 008)	1
4	95 42 879 91 28 191 Stud D223L • (47 73 479)	Stud	D223L (47 73 479)	7
5	95 43 851 90 502 418 Nut D223L • (47 73 016)	Nut	D223L (47 73 016)	7
6	53 33 950 Vacuum box D223L	Vacuum box	D223L	1
7	95 43 869 55 351 994 Intake manifold D223L	Intake manifold	D223L	1
8	95 43 893 24 418 320 Intake manifold D223L	Intake manifold	D223L	1
9	95 43 919 92 26 544 Gasket D223L	Gasket	D223L	1
10	95 43 901 93 171 176 Intake air temperature sensor -2001 • D223L	Intake air temperature sensor	-2001 D223L	1
10	53 41 409 93 171 176 Intake air temperature sensor 2001- • D223L	Intake air temperature sensor	2001- D223L	1
10A	53 41 458 11 095 001 Screw 2001- • D223L	Screw	2001- D223L	1
11	95 43 885 92 26 543 Gasket D223L	Gasket	D223L	1
12	45 02 274 11 093 872 Screw D223L	Screw	D223L	8
13	53 40 203 Bracket D223L	Bracket	D223L	1
14	51 67 895 Sensor D223L	Sensor	D223L	1
15	51 68 042 Bracket D223L	Bracket	D223L	1
16	79 78 380 11 900 379 Screw D223L	Screw	D223L	3
17	79 73 456 Expanding nut D223L	Expanding nut	D223L	2
18	79 78 091 11 900 353 Screw D223L	Screw	D223L	1
19	95 43 927 11 095 271 Screw D223L	Screw	D223L	4

Pos.	Part No.	Description	Usage	Qty
1	95 43 836 55 351 529 Intake manifold D223L	Intake manifold	D223L	1
2	45 03 405 11 093 881 Screw D223L	Screw	D223L	2
3	95 43 844 90 500 940 Gasket D223L • (47 73 008)	Gasket	D223L (47 73 008)	1
4	95 42 879 91 28 191 Stud D223L • (47 73 479)	Stud	D223L (47 73 479)	7
5	95 43 851 90 502 418 Nut D223L • (47 73 016)	Nut	D223L (47 73 016)	7
6	53 33 950 Vacuum box D223L	Vacuum box	D223L	1
7	95 43 869 55 351 994 Intake manifold D223L	Intake manifold	D223L	1
8	95 43 893 24 418 320 Intake manifold D223L	Intake manifold	D223L	1
9	95 43 919 92 26 544 Gasket D223L	Gasket	D223L	1
10	95 43 901 93 171 176 Intake air temperature sensor -2001 • D223L	Intake air temperature sensor	-2001 D223L	1
10	53 41 409 93 171 176 Intake air temperature sensor 2001- • D223L	Intake air temperature sensor	2001- D223L	1
10A	53 41 458 11 095 001 Screw 2001- • D223L	Screw	2001- D223L	1
11	95 43 885 92 26 543 Gasket D223L	Gasket	D223L	1
12	45 02 274 11 093 872 Screw D223L	Screw	D223L	8
13	53 40 203 Bracket D223L	Bracket	D223L	1
14	51 67 895 Sensor D223L	Sensor	D223L	1
15	51 68 042 Bracket D223L	Bracket	D223L	1
16	79 78 380 11 900 379 Screw D223L	Screw	D223L	3
17	79 73 456 Expanding nut D223L	Expanding nut	D223L	2
18	79 78 091 11 900 353 Screw D223L	Screw	D223L	1
19	95 43 927 11 095 271 Screw D223L	Screw	D223L	4

810: Engine - Intake and exhaust system - Inlet pipe
