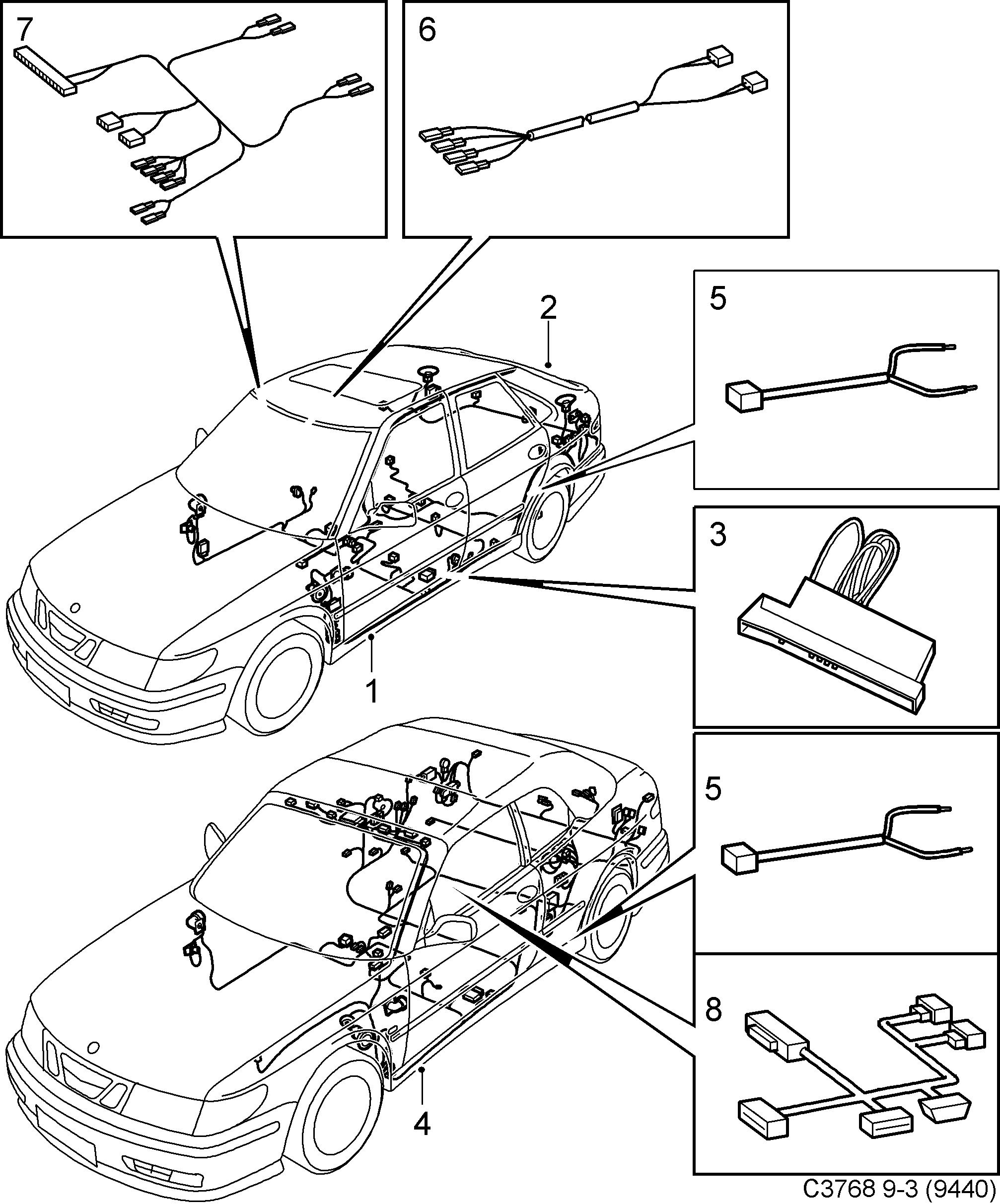

1122: Electrical, general - Wiring and fuses - Rear
(2001) | For 9-3 (9400) (2001)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 51 09 582 Cable harness -2001, LHD | 1 | |
| 1 | 53 54 949 Cable harness 2001-, LHD | 1 | |
| 1 | 51 09 608 Cable harness -2001, LHD | 1 | |
| 1 | 53 54 964 Cable harness 2001-, LHD | 1 | |
| 1 | 51 09 590 Cable harness -2001, RHD | 1 | |
| 1 | 53 54 956 Cable harness 2001-, RHD | 1 | |
| 1 | 51 09 616 Cable harness RHD | 1 | |
| 2 | Antenna cableElectric equipment, other Body Style: 3D, 5D, CV | ||
| 3 | 47 37 615 Cable harness Without anti theft alarm. | 1 | |
| 4 | 51 09 673 Cable harness -2001, LHD | 1 | |
| 4 | 53 54 998 55 43 590 Cable harness 2001-, LHD | 1 | |
| 4 | 51 09 681 Cable harness -2001, RHD | 1 | |
| 4 | 53 55 003 55 43 608 Cable harness 2001-, RHD | 1 | |
| 4 | 51 09 707 Cable harness -2001, LHD | 1 | |
| 4 | 53 55 011 55 43 616 Cable harness 2001-, LHD | 1 | |
| 5 | 49 46 109 Cable harness LH, ABS | 1 | |
| 5 | 49 46 091 Cable harness RH, ABS | 1 | |
| 6 | 53 50 327 Cable harness seat-belt tensioners | 1 | |
| 7 | 53 50 335 Cable harness side airbag | 1 | |
| 8 | 52 43 456 Cable harness LHD • ONSTAR | 1 | |
Airbag moduleDashboard |
