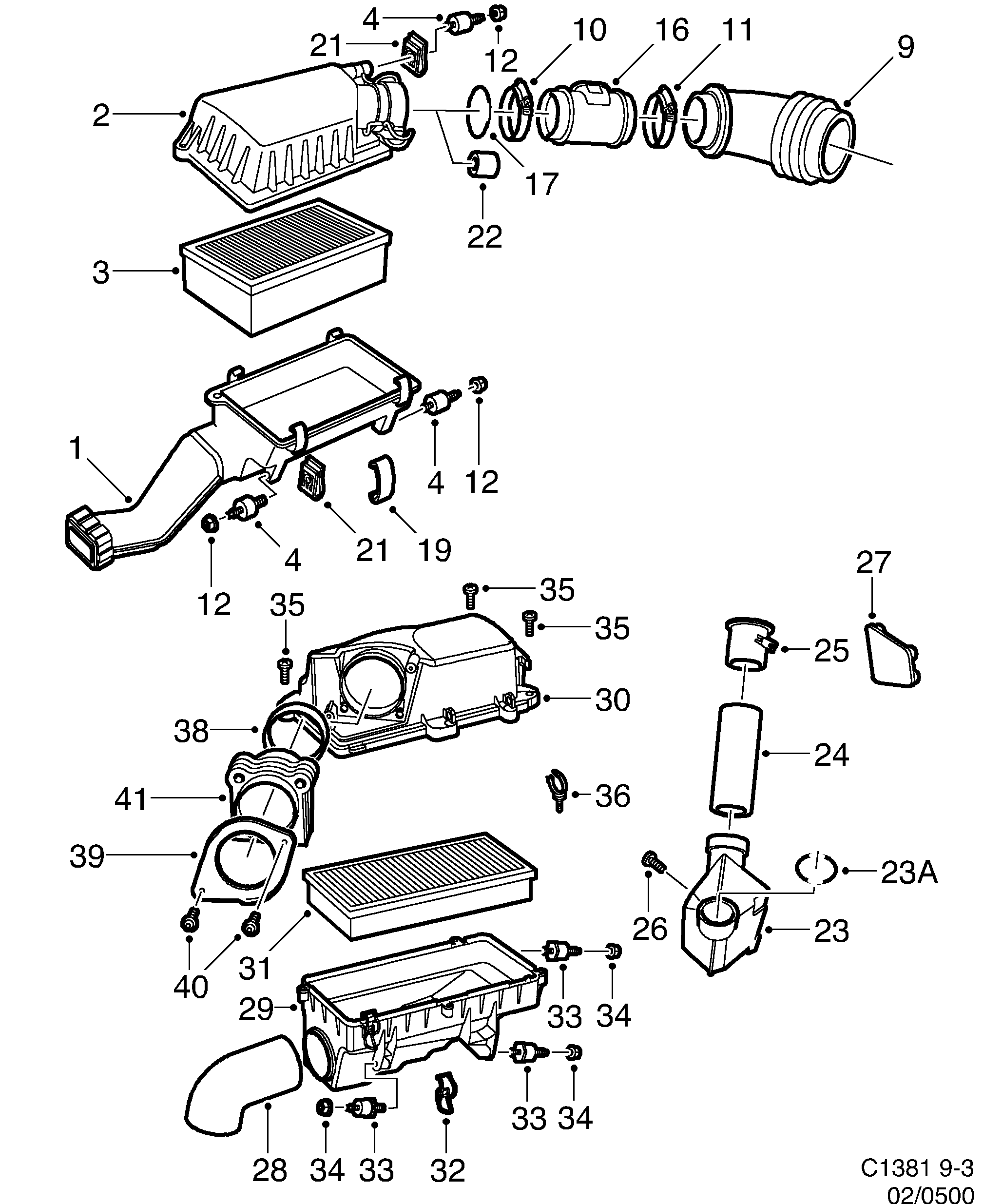

500: Engine - Fuel system - Air cleaner

(2001 - 2003 | D223L, B205E, B205L, B205R, B235E, B235R) | For 9-3 (9400) (2002)

100%

(N°470)

Section 500

(N°520)

Pos.	Part No.	Description	Usage	Qty
1	48 76 165 Air cleaner 2001-2002 • DIESEL	Air cleaner	2001-2002 DIESEL	1
2	48 76 157 Cover 2001-2002 • DIESEL	Cover	2001-2002 DIESEL	1
3	48 76 199 Filter cartridge 2001-2002 • DIESEL	Filter cartridge	2001-2002 DIESEL	1
4	46 71 863 Rubber spacer 2001-2002 • DIESEL	Rubber spacer	2001-2002 DIESEL	3
9	45 27 610 Pipe elbow 2001-2002 • DIESEL	Pipe elbow	2001-2002 DIESEL	1
10	79 70 171 Hose clamp 2001-2002 • DIESEL	Hose clamp	2001-2002 DIESEL	1
11	79 70 163 92 150 224 Hose clamp 2001-2002 • DIESEL	Hose clamp	2001-2002 DIESEL	1
12	43 45 138 11 089 471 Hexagon nut 2001-2002 • DIESEL	Hexagon nut	2001-2002 DIESEL	3
16	51 67 879 Mass air flow sensor 2001-2002 • DIESEL	Mass air flow sensor	2001-2002 DIESEL	1
17	48 76 173 Seal 2001-2002 • DIESEL	Seal	2001-2002 DIESEL	1
19	48 76 181 Clip 2001-2002 • DIESEL	Clip	2001-2002 DIESEL	3
21	44 45 847 Clip D223L, B205E, B205L, B205R, B235E, B235R	Clip	D223L, B205E, B205L, B205R, B235E, B235R	2
22	48 76 629 Hose D223L, B205E, B205L, B205R, B235E, B235R	Hose	D223L, B205E, B205L, B205R, B235E, B235R	1
23	42 29 563 Silencer D223L, B205E, B205L, B205R, B235E, B235R	Silencer	D223L, B205E, B205L, B205R, B235E, B235R	1
23A	42 29 704 O-ring D223L, B205E, B205L, B205R, B235E, B235R	O-ring	D223L, B205E, B205L, B205R, B235E, B235R	1
24	42 36 147 Hose D223L, B205E, B205L, B205R, B235E, B235R	Hose	D223L, B205E, B205L, B205R, B235E, B235R	1
25	42 36 154 Connecting sleeve D223L, B205E, B205L, B205R, B235E, B235R	Connecting sleeve	D223L, B205E, B205L, B205R, B235E, B235R	1
26	79 77 465 92 153 149 Screw D223L, B205E, B205L, B205R, B235E, B235R	Screw	D223L, B205E, B205L, B205R, B235E, B235R	1
27	43 38 679 Adapter D223L, B205E, B205L, B205R, B235E, B235R	Adapter	D223L, B205E, B205L, B205R, B235E, B235R	1
28	48 76 041 Air inlet 2001-2002 • B205, B235	Air inlet	2001-2002 B205, B235	1
29	48 76 058 Air cleaner housing 2001-2002 • B205, B235	Air cleaner housing	2001-2002 B205, B235	1
30	48 76 066 Cover 2001-2002 • B205, B235	Cover	2001-2002 B205, B235	1
31	48 76 074 Air filter 2001-2002 • B205, B235	Air filter	2001-2002 B205, B235	1
32	49 62 296 Clamp 2001-2002 • B205, B235	Clamp	2001-2002 B205, B235	1
33	46 71 863 Rubber spacer 2001-2002 • B205, B235	Rubber spacer	2001-2002 B205, B235	3
34	43 45 138 11 089 471 Hexagon nut 2001-2002 • B205, B235	Hexagon nut	2001-2002 B205, B235	3
35	49 62 304 Screw 2001-2002 • B205, B235	Screw	2001-2002 B205, B235	4
36	49 62 726 Clip 2001-2002 • B205, B235	Clip	2001-2002 B205, B235	2
38	48 78 187 O-ring 2001-2002 • B205, B235	O-ring	2001-2002 B205, B235	1
39	48 76 090 Bracket 2001-2002 • B205, B235	Bracket	2001-2002 B205, B235	1
40	40 87 938 Screw 2001-2002 • B205, B235	Screw	2001-2002 B205, B235	2
41	91 73 386 55 557 008 Mass air flow sensor 2001-2002 • B205, B235	Mass air flow sensor	2001-2002 B205, B235	1
