Question 1

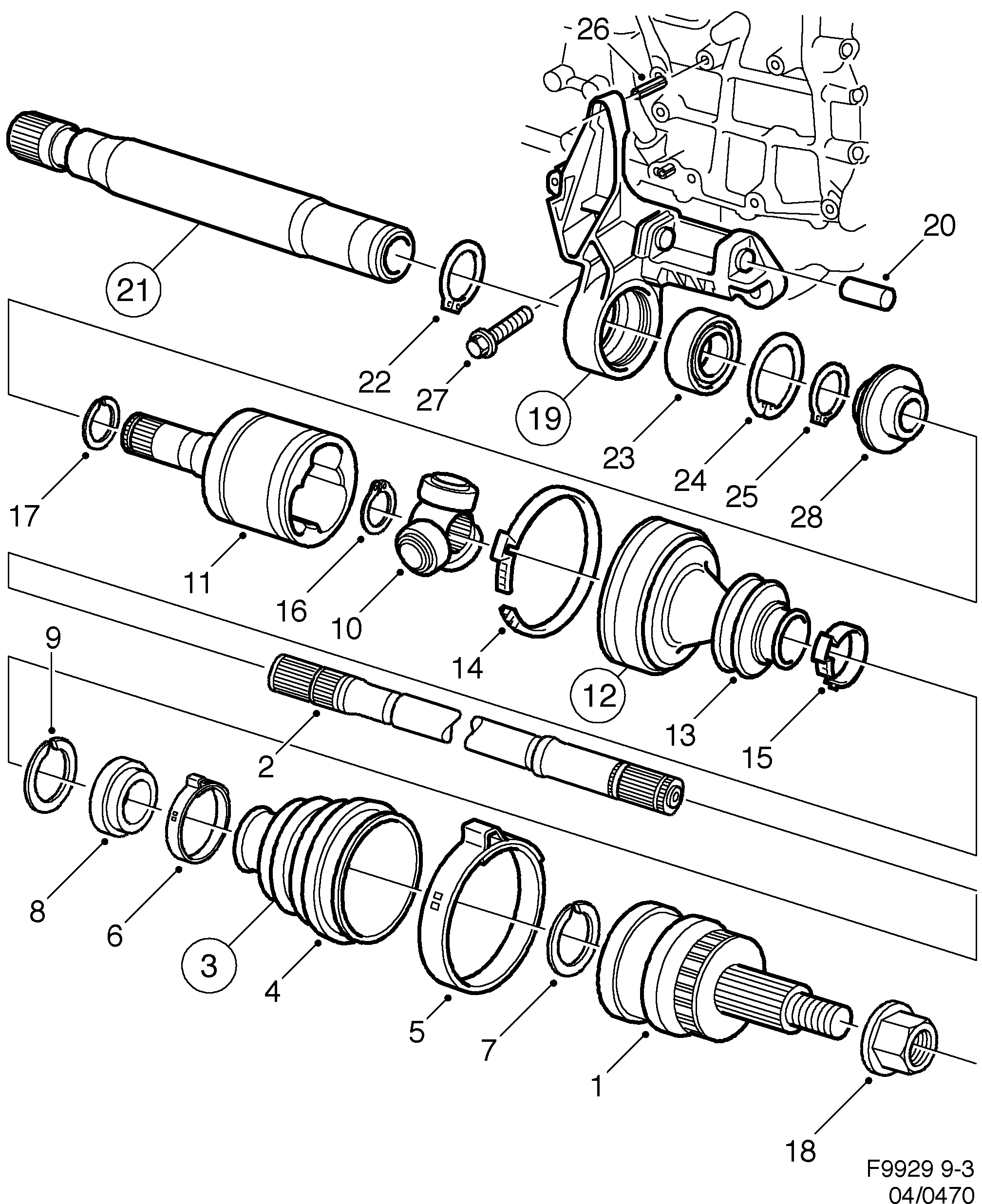

Where to find the exploded diagram for Drive shaft on my Saab 9-3 (9400) 2002?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Drive shaft on Saab 9-3 (9400) 2002. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Drive shaft?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Drive shaft?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Drive shaft, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Drive shaft suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	52 32 897 Universal joint 2000- • PETROL	Universal joint	2000- PETROL	2
2	51 20 167 Drive shaft PETROL	Drive shaft	PETROL	2
3	89 94 154 Bellows kit PETROL	Bellows kit	PETROL	2
4	46 86 986 Bellows PETROL	Bellows	PETROL	1
5	46 87 018 Clamp PETROL	Clamp	PETROL	1
6	46 87 000 Clamp PETROL	Clamp	PETROL	1
7	46 86 978 Lock ring PETROL	Lock ring	PETROL	1
8	46 87 091 Spacer ring PETROL	Spacer ring	PETROL	2
9	46 86 994 Spring washer PETROL	Spring washer	PETROL	2
10	46 86 895 Companion flange PETROL	Companion flange	PETROL	2
11	46 86 911 Companion flange PETROL	Companion flange	PETROL	2
12	89 94 170 Bellows kit PETROL	Bellows kit	PETROL	2
13	46 86 945 Bellows PETROL • Not as separate spare...	Bellows	PETROL Not as separate spare...	1
14	46 86 937 Clamp PETROL	Clamp	PETROL	1
15	46 86 952 Clamp PETROL	Clamp	PETROL	1
16	46 86 903 Lock ring PETROL	Lock ring	PETROL	2
17	46 86 929 Lock ring PETROL	Lock ring	PETROL	2
18	51 25 018 Lock nut PETROL	Lock nut	PETROL	2
19	54 40 425 Bearing bracket 2001- • PETROL	Bearing bracket	2001- PETROL	1
20	75 93 080 Bushing PETROL	Bushing	PETROL	1
21	50 24 187 Countershaft PETROL	Countershaft	PETROL	1
22	93 78 332 92 152 060 Retaining ring PETROL	Retaining ring	PETROL	1
23	93 81 450 12 785 906 Ball bearing PETROL	Ball bearing	PETROL	1
24	79 73 738 12 788 653 Retaining ring PETROL	Retaining ring	PETROL	1
25	93 78 332 92 152 060 Retaining ring PETROL	Retaining ring	PETROL	1
26	79 74 074 Cotter pin PETROL	Cotter pin	PETROL	2
27	79 78 224 11 900 368 Screw PETROL	Screw	PETROL	3
28	45 78 241 30 566 341 Sealing ring PETROL	Sealing ring	PETROL	1

Pos.	Part No.	Description	Usage	Qty
1	52 32 897 Universal joint 2000- • PETROL	Universal joint	2000- PETROL	2
2	51 20 167 Drive shaft PETROL	Drive shaft	PETROL	2
3	89 94 154 Bellows kit PETROL	Bellows kit	PETROL	2
4	46 86 986 Bellows PETROL	Bellows	PETROL	1
5	46 87 018 Clamp PETROL	Clamp	PETROL	1
6	46 87 000 Clamp PETROL	Clamp	PETROL	1
7	46 86 978 Lock ring PETROL	Lock ring	PETROL	1
8	46 87 091 Spacer ring PETROL	Spacer ring	PETROL	2
9	46 86 994 Spring washer PETROL	Spring washer	PETROL	2
10	46 86 895 Companion flange PETROL	Companion flange	PETROL	2
11	46 86 911 Companion flange PETROL	Companion flange	PETROL	2
12	89 94 170 Bellows kit PETROL	Bellows kit	PETROL	2
13	46 86 945 Bellows PETROL • Not as separate spare...	Bellows	PETROL Not as separate spare...	1
14	46 86 937 Clamp PETROL	Clamp	PETROL	1
15	46 86 952 Clamp PETROL	Clamp	PETROL	1
16	46 86 903 Lock ring PETROL	Lock ring	PETROL	2
17	46 86 929 Lock ring PETROL	Lock ring	PETROL	2
18	51 25 018 Lock nut PETROL	Lock nut	PETROL	2
19	54 40 425 Bearing bracket 2001- • PETROL	Bearing bracket	2001- PETROL	1
20	75 93 080 Bushing PETROL	Bushing	PETROL	1
21	50 24 187 Countershaft PETROL	Countershaft	PETROL	1
22	93 78 332 92 152 060 Retaining ring PETROL	Retaining ring	PETROL	1
23	93 81 450 12 785 906 Ball bearing PETROL	Ball bearing	PETROL	1
24	79 73 738 12 788 653 Retaining ring PETROL	Retaining ring	PETROL	1
25	93 78 332 92 152 060 Retaining ring PETROL	Retaining ring	PETROL	1
26	79 74 074 Cotter pin PETROL	Cotter pin	PETROL	2
27	79 78 224 11 900 368 Screw PETROL	Screw	PETROL	3
28	45 78 241 30 566 341 Sealing ring PETROL	Sealing ring	PETROL	1

470: Transmission - Drive shaft - Outer universal joint
