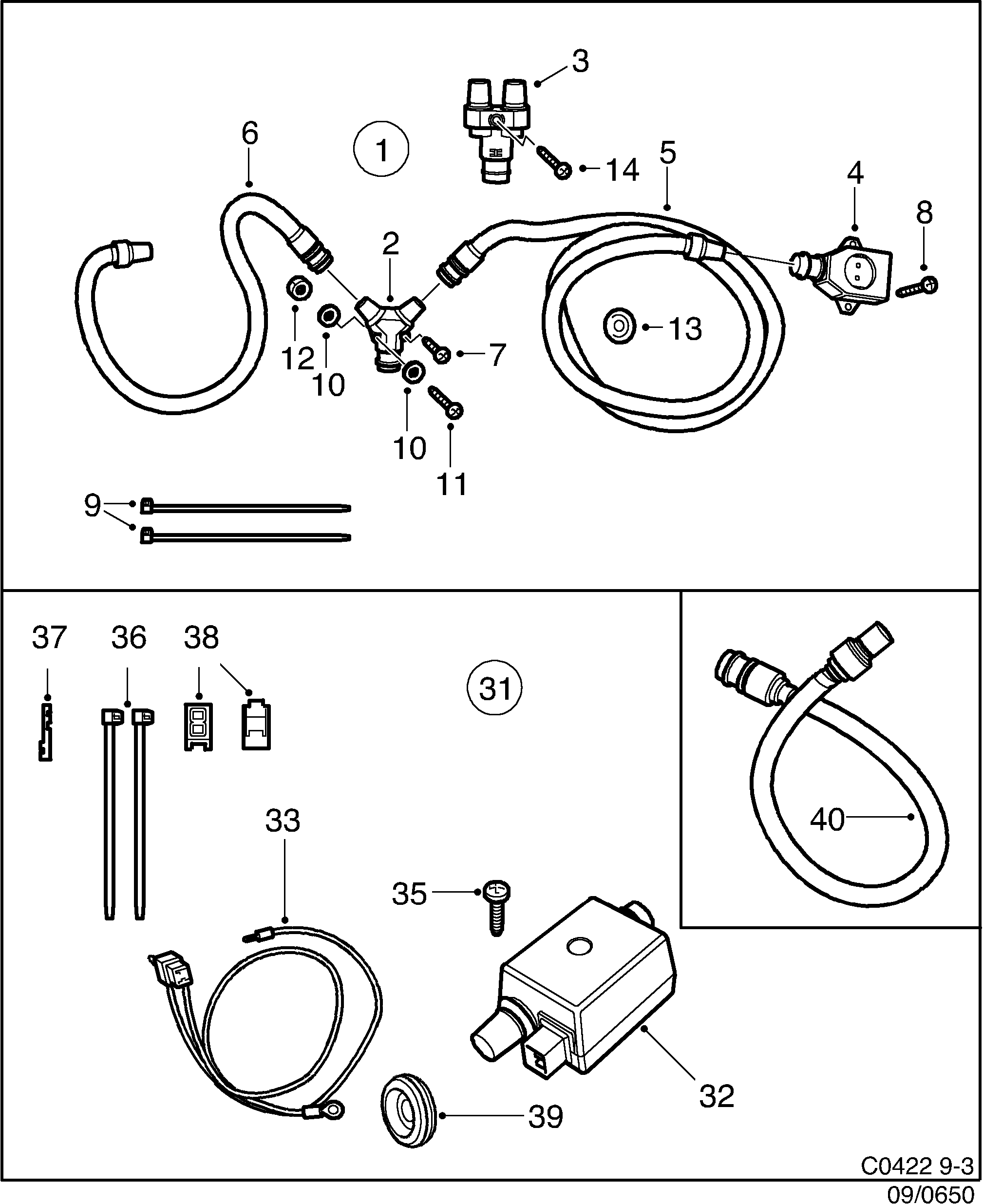

642: Accessories - Accessories body - Climate control - Branching cable kit
(1998 - 2003) | For 9-3 (9400) (2002)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 2 | 260274006 12 794 398 Branch contact Included in kit 400126348. | 1 | |
| 3 | 400127833 12 794 398 Branch contact | 1 | |
| 4 | 260271002 12 794 399 Compartment wall socket | 1 | |
| 5 | 400107249 Junction cable L=2M; Ø 25MM | 1 | |
| 5 | 400128807 12 797 678 Junction cable L=2M; Ø 22MM | 1 | |
| 6 | 400126439 Junction cable L=1,5M; Ø 25MM | 1 | |
| 6 | 400128450 Junction cable L=1,5M; Ø 22MM | 1 | |
| 7 | 79 22 404 32 026 216 Screw 900,9000 | Included in... | 2 | |
| 8 | 92 150 118 Screw | 2 | |
| 9 | 92 150 191 11 900 513 Tensioning band | 10 | |
| 10 | 79 73 894 Washer Ø 5,3 x 16... | 1 | |
| 10 | 80 29 944 Washer Ø 5,3 x 16... | 1 | |
| 11 | 80 59 461 93 169 430 Screw Included in kit 400126348. | 2 | |
| 12 | 80 74 270 Lock nut Included in kit 400126348. | 2 | |
| 13 | 400107264 Cable grommet Ø 25MM | Included... | 1 | |
| 13 | 51 25 349 Cable grommet Ø 22MM | 1 | |
| 14 | 79 86 557 32 026 215 Screw | 1 | |
| 31 | 400128112 32 026 603 Timer kit PETROL • Must be complemented with... | 1 | |
| 32 | 260278007 Relay | 1 | |
| 33 | 400128120 Cable harness | 1 | |
| 35 | 79 22 404 32 026 216 Screw | 1 | |
| 36 | 92 150 191 11 900 513 Tensioning band | 5 | |
| 37 | 91 21 112 Cable terminal | 1 | |
| 38 | 95 60 012 Cable joint | 1 | |
| 39 | 79 61 329 Bushing | 1 | |
| 40 | 400128450 Junction cable L=1,5M, (400126439) | 1 |
