Question 1

Where to find the exploded diagram for Kits on my Saab 9-3 (9400) 2003?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Kits on Saab 9-3 (9400) 2003. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Kits?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Kits?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Kits, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Kits suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

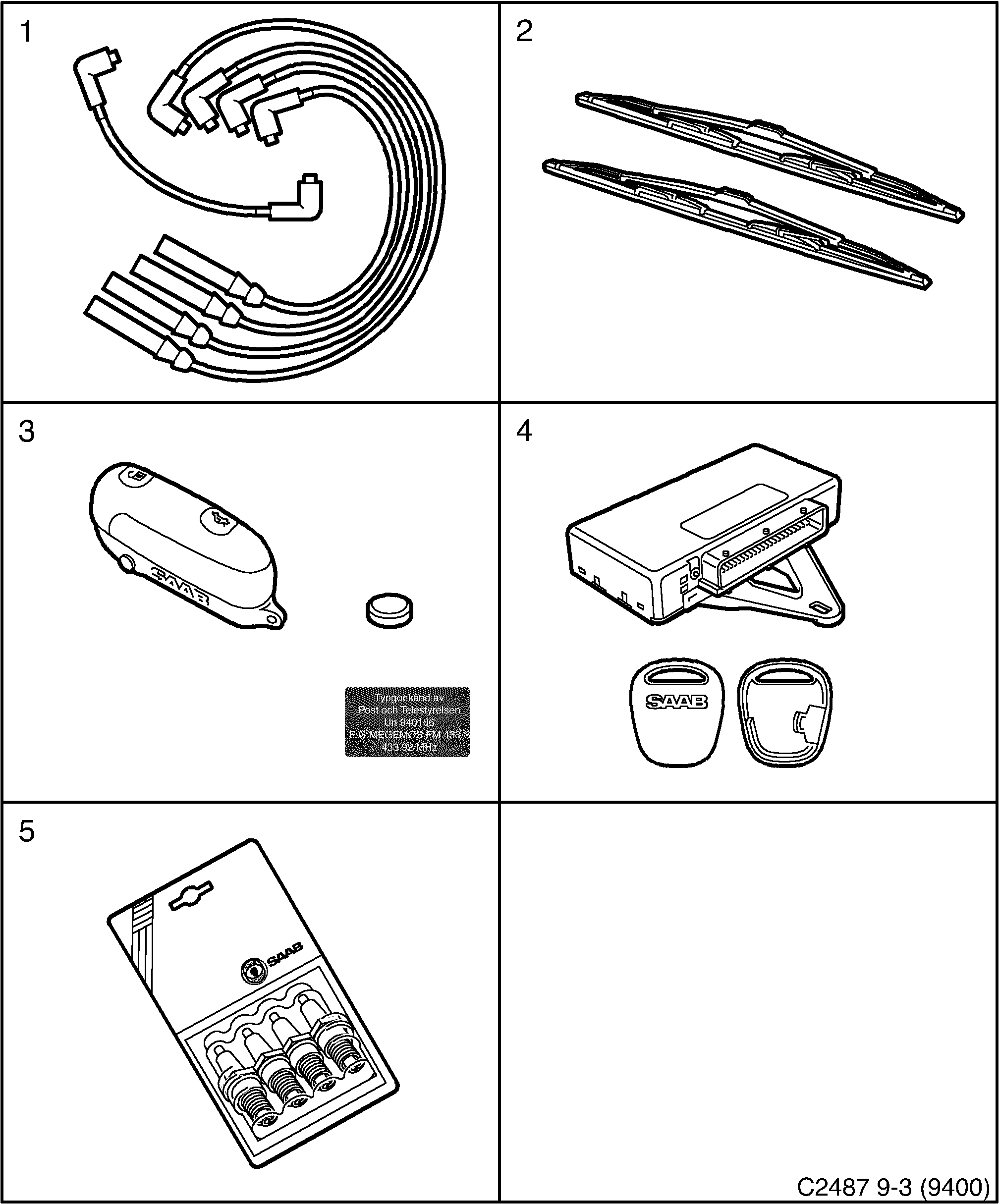

Pos.	Part No.	Description	Usage	Qty
	42 39 000 Ignition lead ignition coil	Ignition lead	ignition coil	1
	91 46 895 30 551 921 Ignition lead cylinder 1	Ignition lead	cylinder 1	1
	91 46 903 30 551 922 Ignition lead cylinder 2	Ignition lead	cylinder 2	1
	91 46 911 30 551 923 Ignition lead cylinder 3	Ignition lead	cylinder 3	1
	91 46 929 30 551 924 Ignition lead cylinder 4	Ignition lead	cylinder 4	1
2	85 49 560 Wiper blade kit windscreen wipers	Wiper blade kit	windscreen wipers	X
	49 59 698 Wiper blade	Wiper blade		2
3	85 49 834 Transmitter TWICE	Transmitter	TWICE	X
	47 11 958 Transmitter Not as separate spare...	Transmitter	Not as separate spare...	1
	47 13 707 90 541 381 Battery	Battery		1
	51 00 854 49 49 285 Label	Label		1
	50 40 266 Electronic kit Not as separate spare...	Electronic kit	Not as separate spare...	1
	47 14 804 Cover key head Programmed using a TECH...	Cover key head	Programmed using a TECH...	2
	50 40 175 Electronic unit Not as separate spare...	Electronic unit	Not as separate spare...	1
	85 49 958 Return delivery note Not as separate spare...	Return delivery note	Not as separate spare...	1
	KeyExternal details 2001-2003	KeyExternal details 2001-2003
	50 40 548 Electronic kit Not as separate spare...	Electronic kit	Not as separate spare...	1
	50 40 506 Electronic unit Not as separate spare...	Electronic unit	Not as separate spare...	1
	50 42 221 12 806 116 Electronic kit Not as separate spare...	Electronic kit	Not as separate spare...	1
	50 42 080 Electronic unit Not as separate spare...	Electronic unit	Not as separate spare...	1
	50 42 189 Electronic unit Not as separate spare...	Electronic unit	Not as separate spare...	1
4	52 65 806 Electronic kit 2002-2003 • TWICE \| Programmed using...	Electronic kit	2002-2003 TWICE \| Programmed using...	X
	52 62 753 12 806 116 Electronic kit Not as separate spare...	Electronic kit	Not as separate spare...	1
5	91 88 681 93 99 866 Spark plug	Spark plug		4

Pos.	Part No.	Description	Usage	Qty
	42 39 000 Ignition lead ignition coil	Ignition lead	ignition coil	1
	91 46 895 30 551 921 Ignition lead cylinder 1	Ignition lead	cylinder 1	1
	91 46 903 30 551 922 Ignition lead cylinder 2	Ignition lead	cylinder 2	1
	91 46 911 30 551 923 Ignition lead cylinder 3	Ignition lead	cylinder 3	1
	91 46 929 30 551 924 Ignition lead cylinder 4	Ignition lead	cylinder 4	1
2	85 49 560 Wiper blade kit windscreen wipers	Wiper blade kit	windscreen wipers	X
	49 59 698 Wiper blade	Wiper blade		2
3	85 49 834 Transmitter TWICE	Transmitter	TWICE	X
	47 11 958 Transmitter Not as separate spare...	Transmitter	Not as separate spare...	1
	47 13 707 90 541 381 Battery	Battery		1
	51 00 854 49 49 285 Label	Label		1
	50 40 266 Electronic kit Not as separate spare...	Electronic kit	Not as separate spare...	1
	47 14 804 Cover key head Programmed using a TECH...	Cover key head	Programmed using a TECH...	2
	50 40 175 Electronic unit Not as separate spare...	Electronic unit	Not as separate spare...	1
	85 49 958 Return delivery note Not as separate spare...	Return delivery note	Not as separate spare...	1
	KeyExternal details 2001-2003	KeyExternal details 2001-2003
	50 40 548 Electronic kit Not as separate spare...	Electronic kit	Not as separate spare...	1
	50 40 506 Electronic unit Not as separate spare...	Electronic unit	Not as separate spare...	1
	50 42 221 12 806 116 Electronic kit Not as separate spare...	Electronic kit	Not as separate spare...	1
	50 42 080 Electronic unit Not as separate spare...	Electronic unit	Not as separate spare...	1
	50 42 189 Electronic unit Not as separate spare...	Electronic unit	Not as separate spare...	1
4	52 65 806 Electronic kit 2002-2003 • TWICE \| Programmed using...	Electronic kit	2002-2003 TWICE \| Programmed using...	X
	52 62 753 12 806 116 Electronic kit Not as separate spare...	Electronic kit	Not as separate spare...	1
5	91 88 681 93 99 866 Spark plug	Spark plug		4

1330: Electrical, general - Kits - Electrical system
