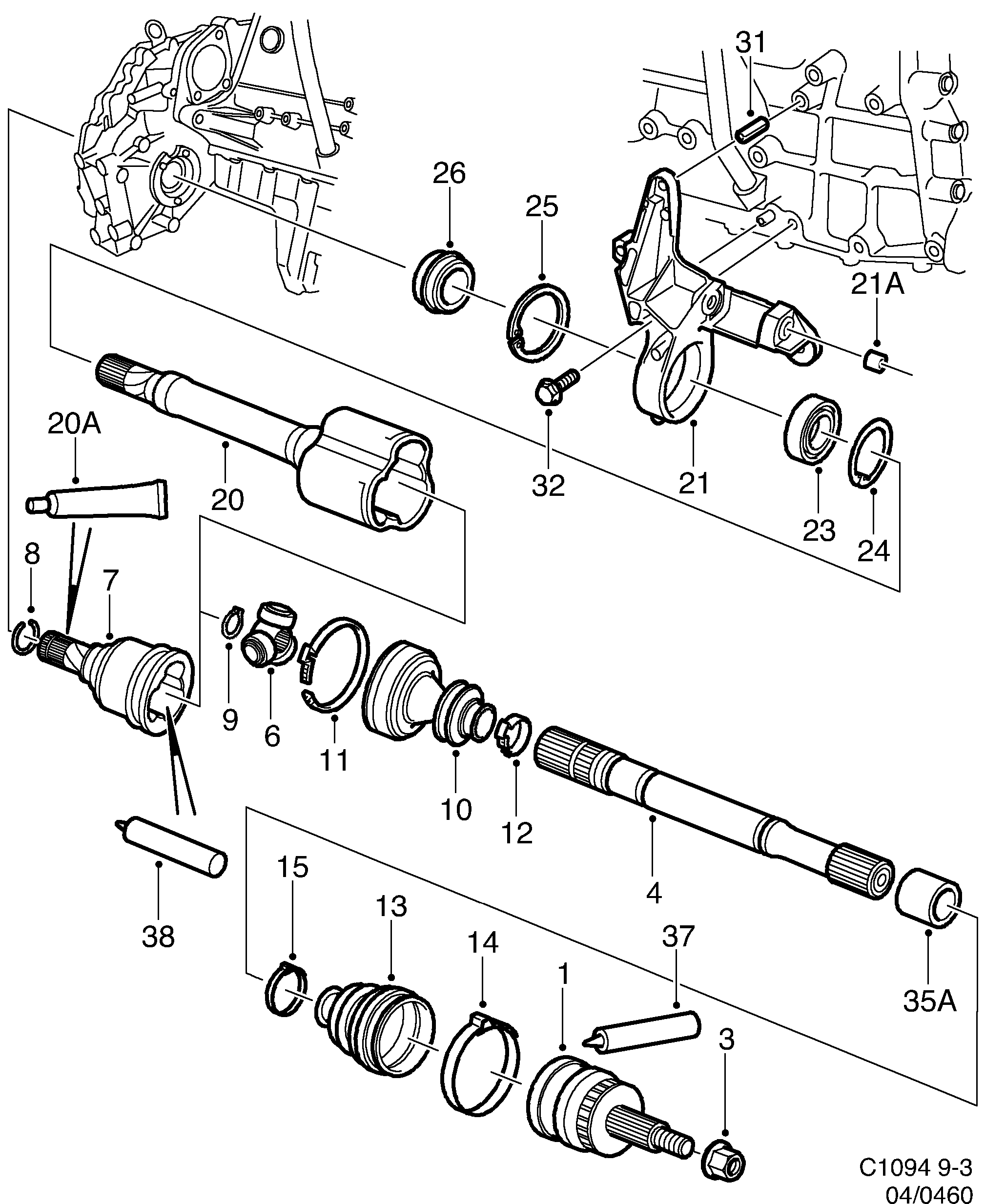

460: Transmission - Drive shaft - Outer universal joint

(1998 - 2003 | B204,TURBO,4-CYL,4-CYL TURBO,PETROL, B204,I,4-CYL,4-CYL I,PETROL, B204,TURBO,4-CYL,4-CYL I,PETROL, 4-CYL,TURBO,4-CYL TURBO,PETROL, B234,I,4-CYL,4-CYL I,PETROL, B205,4-CYL,TURBO,4-CYL TURBO,PETROL, B205,4-CYL,I,4-CYL I,PETROL, 4-CYL,DIESEL) | For 9-3 (9400) (2003)

100%

(N°430)

Section 460

(N°490)

Pos.	Part No.	Description	Usage	Qty
1	51 71 194 30 583 376 Universal joint 1999- • 11, 12, 14, 57, 24, 49, 60, 52	Universal joint	1999- 11, 12, 14, 57, 24, 49, 60, 52	2
3	51 25 018 Lock nut 1999- • 11, 12, 14, 57, 24, 49, 60, 52	Lock nut	1999- 11, 12, 14, 57, 24, 49, 60, 52	2
4	45 44 854 Drive shaft 11, 12, 14, 57, 24, 49, 60, 52 • LH	Drive shaft	11, 12, 14, 57, 24, 49, 60, 52 LH	1
4	50 57 120 Drive shaft 11, 12, 14, 57, 24, 49, 60, 52 • RH	Drive shaft	11, 12, 14, 57, 24, 49, 60, 52 RH	1
6	89 50 628 Companion flange 11, 12, 14, 57, 24, 49, 60, 52	Companion flange	11, 12, 14, 57, 24, 49, 60, 52	2
7	45 44 763 Companion flange 11, 12, 14, 57, 24, 49, 60, 52 • LH	Companion flange	11, 12, 14, 57, 24, 49, 60, 52 LH	1
8	42 82 547 Lock ring 11, 12, 14, 57, 24, 49, 60, 52	Lock ring	11, 12, 14, 57, 24, 49, 60, 52	1
9	89 50 636 Lock ring 11, 12, 14, 57, 24, 49, 60, 52	Lock ring	11, 12, 14, 57, 24, 49, 60, 52	2
10	89 94 147 Bellows kit Gearbox, automatic 11, 12, 14, 57, 24, 49, 60, 52 • LH	Bellows kit Gearbox, automatic	11, 12, 14, 57, 24, 49, 60, 52 LH	1
10	89 94 162 Bellows kit Gearbox, automatic 11, 12, 14, 57, 24, 49, 60, 52 • RH	Bellows kit Gearbox, automatic	11, 12, 14, 57, 24, 49, 60, 52 RH	1
11	89 72 986 30 519 720 Clamp 11, 12, 14, 57, 24, 49, 60, 52 • LH	Clamp	11, 12, 14, 57, 24, 49, 60, 52 LH	1
11	46 87 042 Clamp 11, 12, 14, 57, 24, 49, 60, 52 • RH	Clamp	11, 12, 14, 57, 24, 49, 60, 52 RH	1
12	42 42 475 Clamp 11, 12, 14, 57, 24, 49, 60, 52 • LH	Clamp	11, 12, 14, 57, 24, 49, 60, 52 LH	1
12	46 86 846 Clamp 11, 12, 14, 57, 24, 49, 60, 52 • RH	Clamp	11, 12, 14, 57, 24, 49, 60, 52 RH	1
13	44 83 517 Bellows 11, 12, 14, 57, 24, 49, 60, 52	Bellows	11, 12, 14, 57, 24, 49, 60, 52	2
14	44 83 525 Clamp 11, 12, 14, 57, 24, 49, 60, 52	Clamp	11, 12, 14, 57, 24, 49, 60, 52	2
15	44 83 533 Clamp 11, 12, 14, 57, 24, 49, 60, 52	Clamp	11, 12, 14, 57, 24, 49, 60, 52	2
20	50 57 674 Countershaft 11, 12, 14, 57, 24, 49, 60, 52	Countershaft	11, 12, 14, 57, 24, 49, 60, 52	1
20A	87 81 684 90 513 210 Grease 11, 12, 14, 57, 24, 49, 60, 52 • 50 gr	Grease	11, 12, 14, 57, 24, 49, 60, 52 50 gr	X
21	54 40 425 Bearing bracket 2001- • PETROL	Bearing bracket	2001- PETROL	1
21	54 40 433 Bearing bracket 2001- • PETROL	Bearing bracket	2001- PETROL	1
21A	75 93 080 Bushing PETROL	Bushing	PETROL	1
23	93 81 450 12 785 906 Ball bearing 11, 12, 14, 57, 24, 49, 60, 52	Ball bearing	11, 12, 14, 57, 24, 49, 60, 52	1
24	79 73 738 12 788 653 Retaining ring 11, 12, 14, 57, 24, 49, 60, 52	Retaining ring	11, 12, 14, 57, 24, 49, 60, 52	1
25	93 78 332 92 152 060 Retaining ring 11, 12, 14, 57, 24, 49, 60, 52	Retaining ring	11, 12, 14, 57, 24, 49, 60, 52	1
26	49 25 830 Seal 11, 12, 14, 57, 24, 49, 60, 52	Seal	11, 12, 14, 57, 24, 49, 60, 52	1
31	79 74 074 Cotter pin PETROL	Cotter pin	PETROL	2
32	79 78 224 11 900 368 Screw PETROL	Screw	PETROL	3
35A	46 45 594 Deadener weight PETROL, DIESEL • LH	Deadener weight	PETROL, DIESEL LH	1
37	87 81 676 90 007 999 Grease 11, 12, 14, 57, 24, 49, 60, 52 • 300 gr	Grease	11, 12, 14, 57, 24, 49, 60, 52 300 gr	X
38	Grease 11, 12, 14, 57, 24, 49, 60, 52 • 16/87 92 624, 310...	Grease	11, 12, 14, 57, 24, 49, 60, 52 16/87 92 624, 310...	X
