Question 1

Where to find the exploded diagram for 100-tool-kit on my Saab 9-3 (9400) 2003?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for 100-tool-kit on Saab 9-3 (9400) 2003. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section 100-tool-kit?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section 100-tool-kit?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section 100-tool-kit, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section 100-tool-kit suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

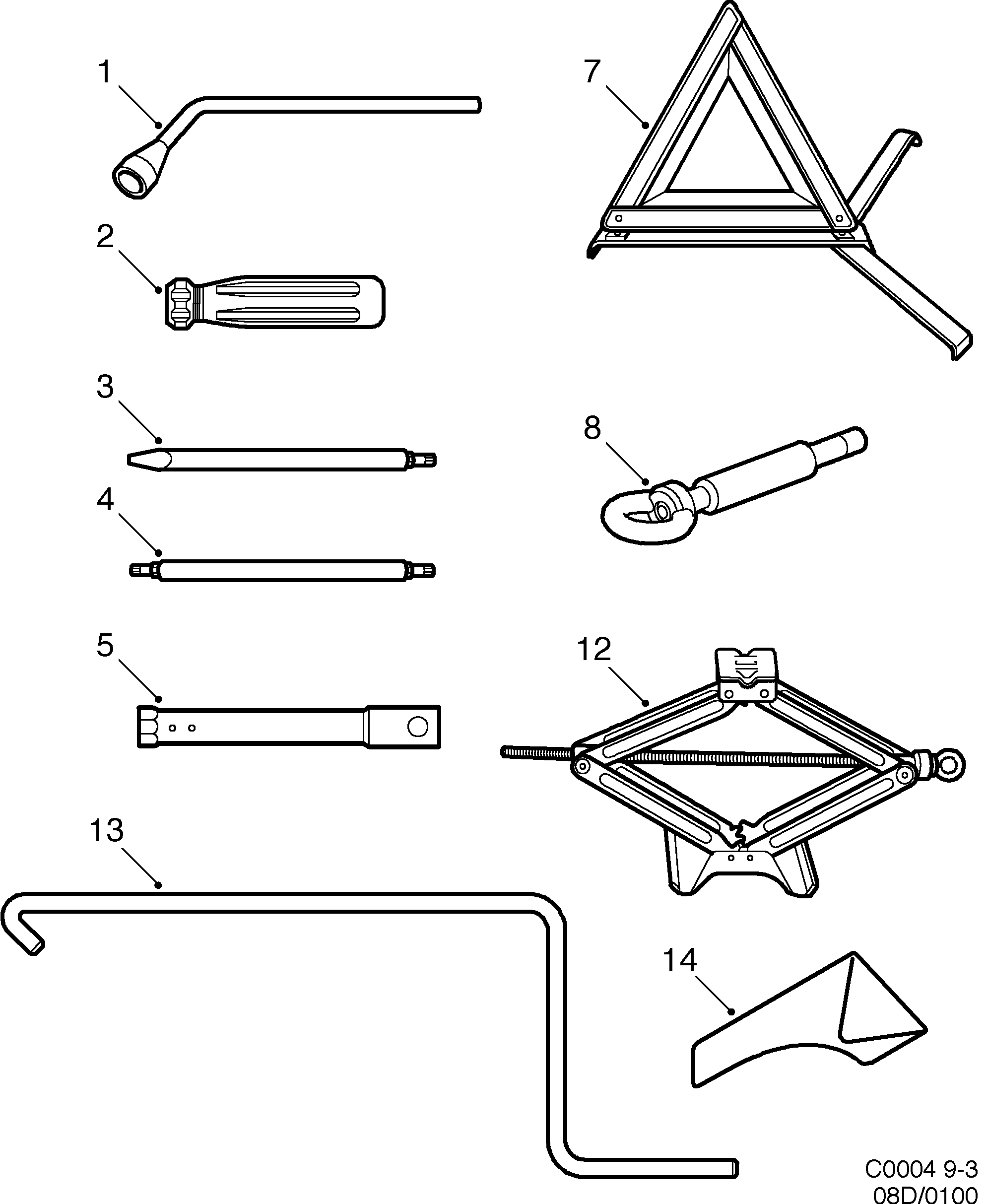

Pos.	Part No.	Description	Usage	Qty
1	54 37 231 13 107 800 Socket wrench 2002-2003 • WHEEL NUT	Socket wrench	2002-2003 WHEEL NUT	1
2	53 32 556 12 798 390 Handle 2001-2003	Handle	2001-2003	1
3	53 32 572 12 798 392 Screw driver bit 2001-2003 • TORX 25	Screw driver bit	2001-2003 TORX 25	1
4	53 32 564 12 798 391 Screw driver bit 2001-2003 • TORX 10/30	Screw driver bit	2001-2003 TORX 10/30	1
5	41 93 157 Spark plug spanner	Spark plug spanner		1
7	400128013 12 767 176 Warning triangle 2000-2003	Warning triangle	2000-2003	1
8	51 22 684 Towing eye ''VIGGEN''	Towing eye	''VIGGEN''	1
12	49 07 747 13 255 679 Jack When fitting part 13162852...	Jack	When fitting part 13162852...	1
13	49 07 754 Crank	Crank		1
14	49 08 091 Bag 1998-2003	Bag	1998-2003	1

Pos.	Part No.	Description	Usage	Qty
1	54 37 231 13 107 800 Socket wrench 2002-2003 • WHEEL NUT	Socket wrench	2002-2003 WHEEL NUT	1
2	53 32 556 12 798 390 Handle 2001-2003	Handle	2001-2003	1
3	53 32 572 12 798 392 Screw driver bit 2001-2003 • TORX 25	Screw driver bit	2001-2003 TORX 25	1
4	53 32 564 12 798 391 Screw driver bit 2001-2003 • TORX 10/30	Screw driver bit	2001-2003 TORX 10/30	1
5	41 93 157 Spark plug spanner	Spark plug spanner		1
7	400128013 12 767 176 Warning triangle 2000-2003	Warning triangle	2000-2003	1
8	51 22 684 Towing eye ''VIGGEN''	Towing eye	''VIGGEN''	1
12	49 07 747 13 255 679 Jack When fitting part 13162852...	Jack	When fitting part 13162852...	1
13	49 07 754 Crank	Crank		1
14	49 08 091 Bag 1998-2003	Bag	1998-2003	1

100: Tool, labels - Tool kit
