Question 1

Where to find the exploded diagram for Short block on my Saab 9-3 (9440) 2003?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Short block on Saab 9-3 (9440) 2003. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Short block?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Short block?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Short block, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Short block suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

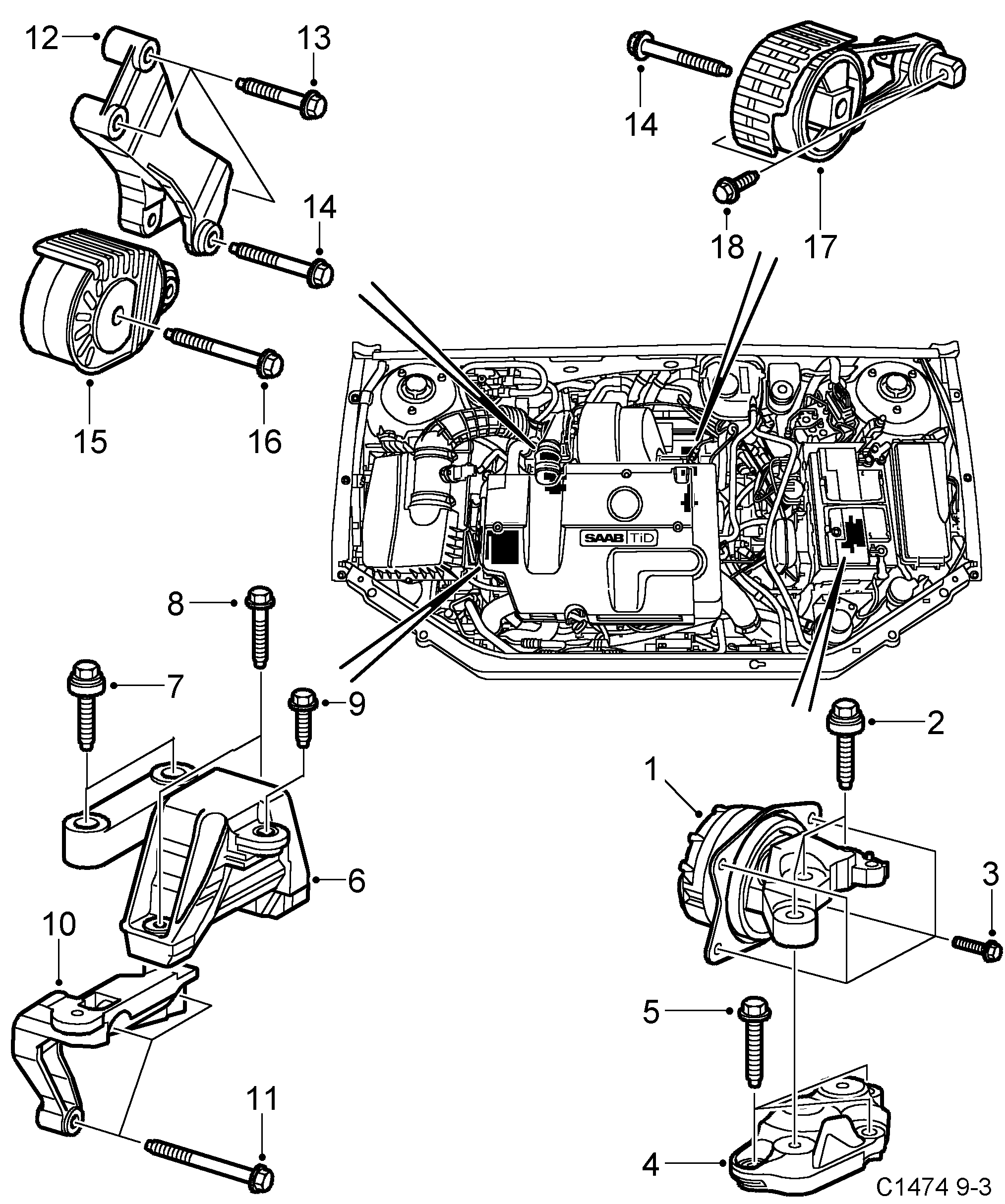

Pos.	Part No.	Description	Usage	Qty
1	12 789 101 Vibration damper D223L • LH	Vibration damper	D223L LH	1
2	92 152 200 92 23 092 Hexagon screw D223L	Hexagon screw	D223L	X
3	92 152 134 Hexagon screw D223L	Hexagon screw	D223L	X
4	12 789 102 Motor bracket D223L • LH	Motor bracket	D223L LH	1
5	11 900 202 Hexagon screw D223L	Hexagon screw	D223L	X
6	12 785 091 Vibration damper D223L • RH	Vibration damper	D223L RH	1
7	92 152 201 93 169 393 Hexagon screw D223L	Hexagon screw	D223L	X
8	92 152 138 Hexagon screw D223L	Hexagon screw	D223L	X
9	92 152 199 Hexagon screw D223L	Hexagon screw	D223L	X
10	12 785 094 Motor bracket D223L • RH	Motor bracket	D223L RH	1
11	92 152 139 Hexagon screw D223L	Hexagon screw	D223L	X
12	12 785 103 Motor bracket D223L • Rear.	Motor bracket	D223L Rear.	1
13	92 152 140 11 589 278 Hexagon screw D223L	Hexagon screw	D223L	X
14	11 900 208 Hexagon screw D223L	Hexagon screw	D223L	X
15	12 785 099 Torque rod D223L • LH	Torque rod	D223L LH	1
16	11 900 209 Hexagon screw D223L	Hexagon screw	D223L	X
17	12 785 096 Torque rod D223L • RH	Torque rod	D223L RH	1
18	92 150 029 92 153 206 Hexagon screw D223L	Hexagon screw	D223L	X

Pos.	Part No.	Description	Usage	Qty
1	12 789 101 Vibration damper D223L • LH	Vibration damper	D223L LH	1
2	92 152 200 92 23 092 Hexagon screw D223L	Hexagon screw	D223L	X
3	92 152 134 Hexagon screw D223L	Hexagon screw	D223L	X
4	12 789 102 Motor bracket D223L • LH	Motor bracket	D223L LH	1
5	11 900 202 Hexagon screw D223L	Hexagon screw	D223L	X
6	12 785 091 Vibration damper D223L • RH	Vibration damper	D223L RH	1
7	92 152 201 93 169 393 Hexagon screw D223L	Hexagon screw	D223L	X
8	92 152 138 Hexagon screw D223L	Hexagon screw	D223L	X
9	92 152 199 Hexagon screw D223L	Hexagon screw	D223L	X
10	12 785 094 Motor bracket D223L • RH	Motor bracket	D223L RH	1
11	92 152 139 Hexagon screw D223L	Hexagon screw	D223L	X
12	12 785 103 Motor bracket D223L • Rear.	Motor bracket	D223L Rear.	1
13	92 152 140 11 589 278 Hexagon screw D223L	Hexagon screw	D223L	X
14	11 900 208 Hexagon screw D223L	Hexagon screw	D223L	X
15	12 785 099 Torque rod D223L • LH	Torque rod	D223L LH	1
16	11 900 209 Hexagon screw D223L	Hexagon screw	D223L	X
17	12 785 096 Torque rod D223L • RH	Torque rod	D223L RH	1
18	92 150 029 92 153 206 Hexagon screw D223L	Hexagon screw	D223L	X

150: Engine - Short block - Engine suspension
