Pos.	Part No.	Description	Usage	Qty
1	24 426 999 Cover D223L	Cover	D223L	1
2	90 500 805 Seal D223L	Seal	D223L	1
3	92 28 266 Pump impeller D223L	Pump impeller	D223L	1
4	92 28 265 Pump impeller D223L	Pump impeller	D223L	1
5	91 29 049 Cover D223L	Cover	D223L	1
6	11 093 893 Screw D223L	Screw	D223L	7
7	90 502 640 Piston D223L	Piston	D223L	1
8	90 502 641 Spring D223L	Spring	D223L	1
9	90 502 639 Piston D223L	Piston	D223L	1
10	91 48 404 11 093 042 Seal D223L	Seal	D223L	1
11	11 097 551 Plug D223L	Plug	D223L	1
12	90 502 642 Plunger D223L	Plunger	D223L	1
13	90 502 643 Spring D223L	Spring	D223L	1
14	11 016 289 11 016 282 Sealing ring D223L	Sealing ring	D223L	1
15	90 528 616 Plug D223L	Plug	D223L	1
16	11 097 541 Plug D223L	Plug	D223L	1
17	11 017 111 Gasket D223L	Gasket	D223L	1
18	90 281 475 Roll pin D223L	Roll pin	D223L	2
19	92 02 219 Gasket D223L	Gasket	D223L	1
20	11 093 792 Screw D223L	Screw	D223L	11
21	11 093 612 Screw D223L	Screw	D223L	2
22	90 530 170 Cover D223L	Cover	D223L	1
23	Gasket D223L	Gasket	D223L	1
24	11 093 893 Screw D223L	Screw	D223L	6

Pos.	Part No.	Description	Usage	Qty
1	24 426 999 Cover D223L	Cover	D223L	1
2	90 500 805 Seal D223L	Seal	D223L	1
3	92 28 266 Pump impeller D223L	Pump impeller	D223L	1
4	92 28 265 Pump impeller D223L	Pump impeller	D223L	1
5	91 29 049 Cover D223L	Cover	D223L	1
6	11 093 893 Screw D223L	Screw	D223L	7
7	90 502 640 Piston D223L	Piston	D223L	1
8	90 502 641 Spring D223L	Spring	D223L	1
9	90 502 639 Piston D223L	Piston	D223L	1
10	91 48 404 11 093 042 Seal D223L	Seal	D223L	1
11	11 097 551 Plug D223L	Plug	D223L	1
12	90 502 642 Plunger D223L	Plunger	D223L	1
13	90 502 643 Spring D223L	Spring	D223L	1
14	11 016 289 11 016 282 Sealing ring D223L	Sealing ring	D223L	1
15	90 528 616 Plug D223L	Plug	D223L	1
16	11 097 541 Plug D223L	Plug	D223L	1
17	11 017 111 Gasket D223L	Gasket	D223L	1
18	90 281 475 Roll pin D223L	Roll pin	D223L	2
19	92 02 219 Gasket D223L	Gasket	D223L	1
20	11 093 792 Screw D223L	Screw	D223L	11
21	11 093 612 Screw D223L	Screw	D223L	2
22	90 530 170 Cover D223L	Cover	D223L	1
23	Gasket D223L	Gasket	D223L	1
24	11 093 893 Screw D223L	Screw	D223L	6

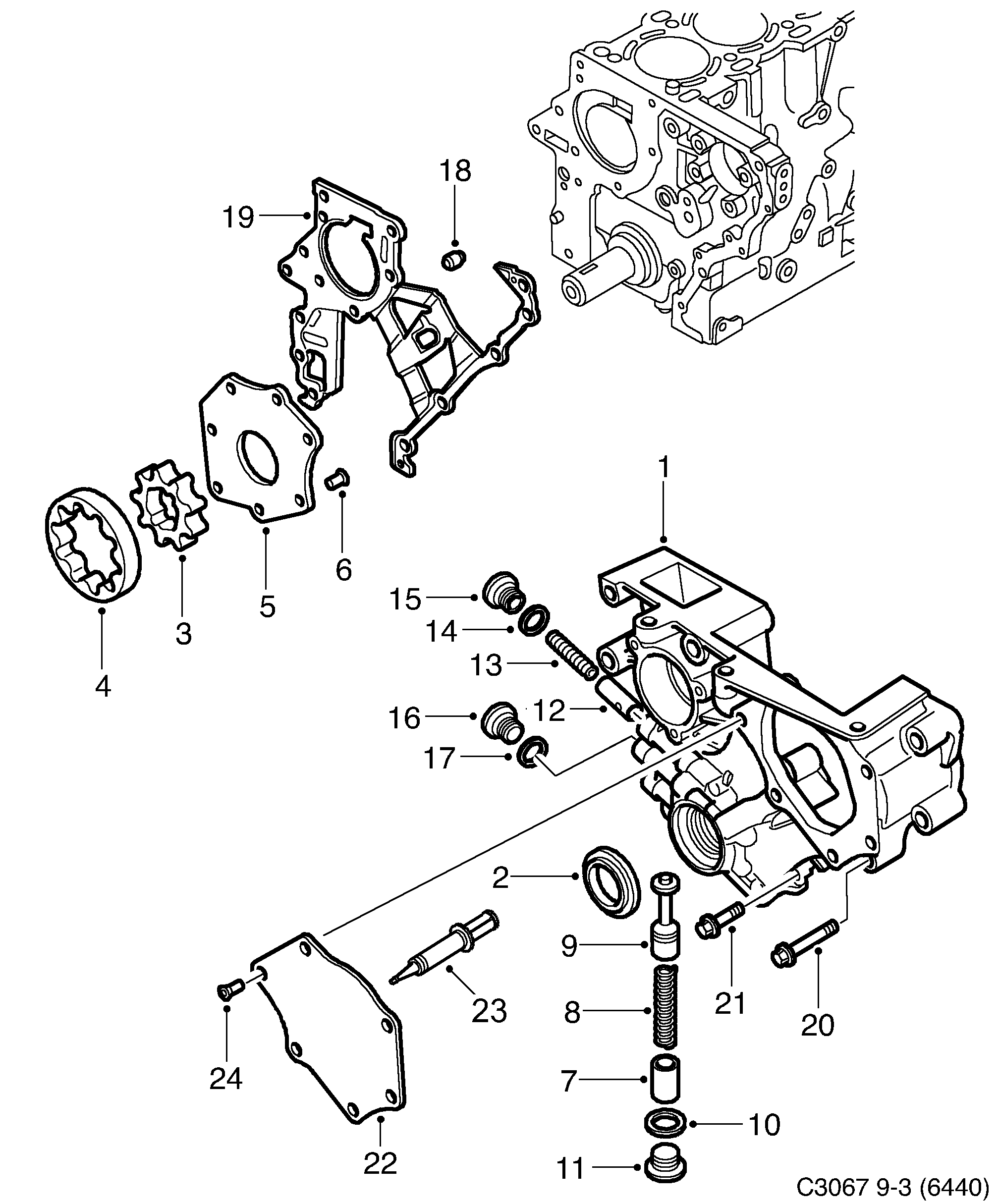

2151: Engine - Lubricating system - Oil pump
