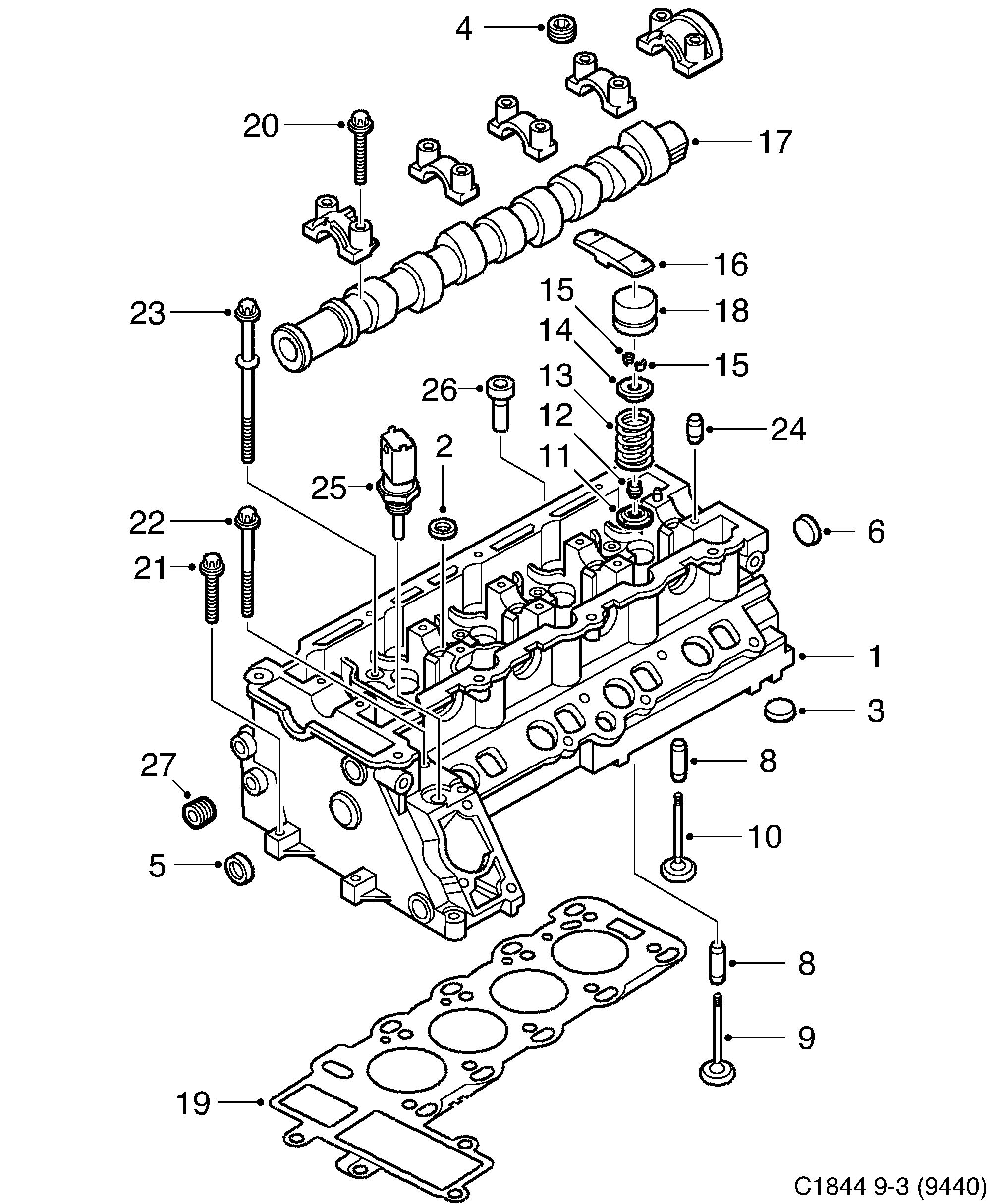

250: Engine - Short block - Cylinder head

(2003 - 2004 | D223L) | For 9-3 (9440) (2003)

100%

(N°200)

Section 250

(N°300)

Pos.	Part No.	Description	Usage	Qty
1	55 353 380 Cylinder head D223L	Cylinder head	D223L	1
2	90 529 032 Sealing washer D223L	Sealing washer	D223L	2
3	11 071 923 Sealing washer D223L	Sealing washer	D223L	6
4	11 056 321 Screw plug D223L	Screw plug	D223L	4
5	90 502 542 Sealing washer D223L	Sealing washer	D223L	2
6	11 094 191 Sealing washer D223L	Sealing washer	D223L	6
8	90 572 642 Valve guide D223L • STD	Valve guide	D223L STD	16
8	90 528 683 Valve guide D223L • OD 1	Valve guide	D223L OD 1	16
8	90 528 685 Valve guide D223L • OD 2	Valve guide	D223L OD 2	16
9	90 502 319 Inlet valve D223L • STD	Inlet valve	D223L STD	8
9	90 502 321 Inlet valve D223L • 0,075	Inlet valve	D223L 0,075	8
9	90 502 322 Inlet valve D223L • 0,15	Inlet valve	D223L 0,15	8
10	90 502 326 12 992 480 Exhaust valve D223L • STD	Exhaust valve	D223L STD	8
10	90 502 327 Exhaust valve D223L • 0,075	Exhaust valve	D223L 0,075	8
10	90 502 328 Exhaust valve D223L • 0,15	Exhaust valve	D223L 0,15	8
11	90 410 740 Spring washer D223L	Spring washer	D223L	16
12	90 410 741 Seal D223L	Seal	D223L	16
13	90 500 731 Valve spring D223L	Valve spring	D223L	16
14	90 354 649 Valve spring washer D223L	Valve spring washer	D223L	16
15	90 354 648 Valve cone D223L	Valve cone	D223L	32
16	90 502 753 Camshaft bridge D223L	Camshaft bridge	D223L	8
17	91 20 253 Camshaft D223L	Camshaft	D223L	1
18	91 17 905 Tappet D223L	Tappet	D223L	16
19	90 540 459 93 179 232 Gasket 2003-2003 • D223L • T=1,2 MM. IDENT NONE	Gasket	2003-2003 D223L T=1,2 MM. IDENT NONE	1
19	90 540 460 93 179 232 Gasket D223L • T=1,3 MM. IDENT 1...	Gasket	D223L T=1,3 MM. IDENT 1...	1
19	90 540 461 93 179 233 Gasket 2003-2003 • D223L • T=1,4 MM. IDENT 2...	Gasket	2003-2003 D223L T=1,4 MM. IDENT 2...	1
19	93 189 314 Cylinder head gasket D223L • T=1,5 MM. IDENT 3...	Cylinder head gasket	D223L T=1,5 MM. IDENT 3...	1
20	11 093 792 Screw D223L	Screw	D223L	10
21	11 097 441 Screw D223L	Screw	D223L	3
22	11 096 621 Screw D223L	Screw	D223L	1
23	90 502 072 Screw D223L	Screw	D223L	10
24	90 281 475 Roll pin D223L	Roll pin	D223L	2
25	90 570 185 90 542 063 Engine coolant temperature sensor D223L	Engine coolant temperature sensor	D223L	1
26	11 095 821 Screw D223L	Screw	D223L	5
27	11 095 512 Screw plug D223L	Screw plug	D223L	5
