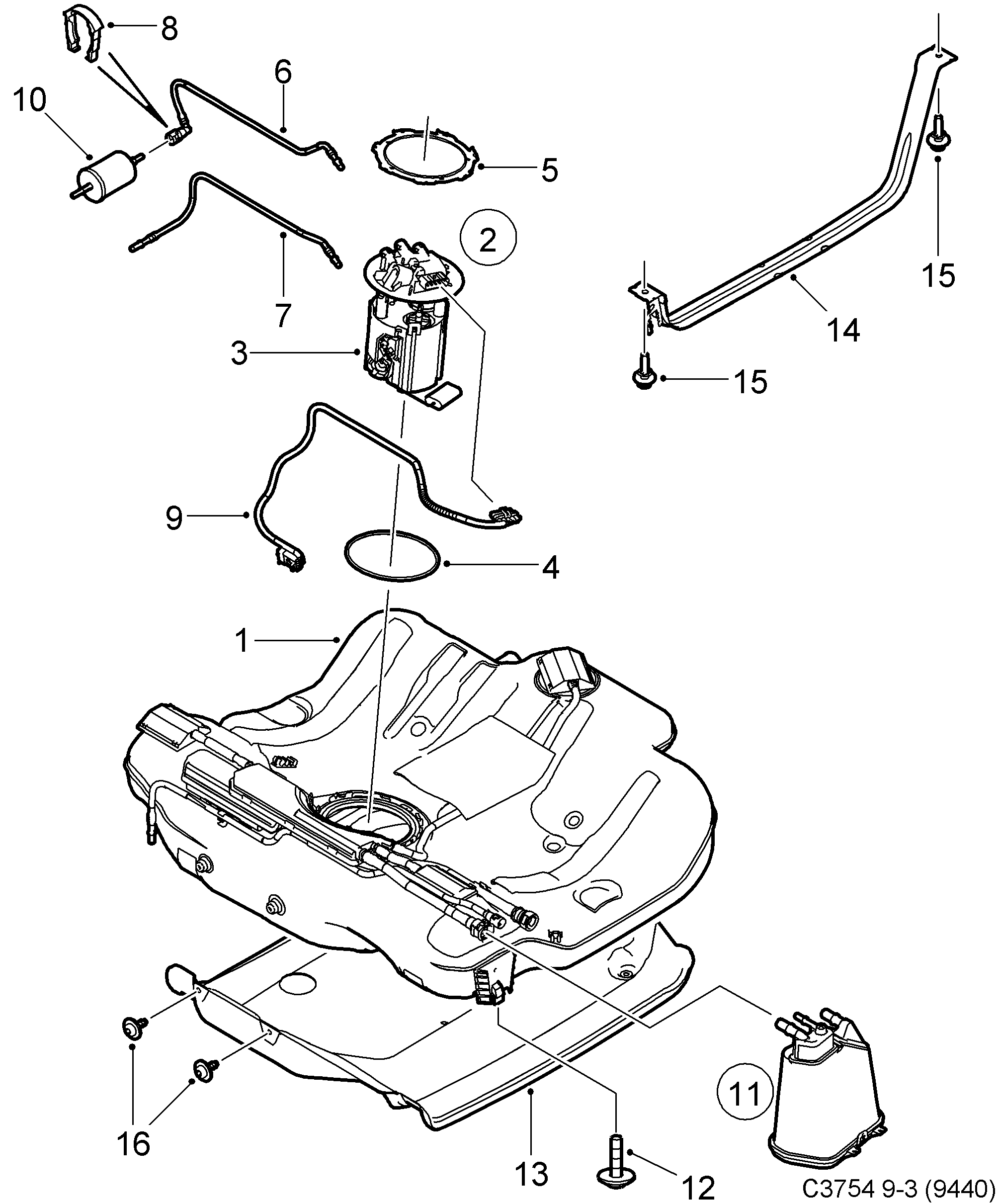

3100: Engine - Fuel system - Fuel tank
(2003 - 2012 | B207E, B207L, B207R) | For 9-3 (9440) (2003)
Not for USA and Canada. | Less All Wheel Drive (XWD)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 787 800 12 804 945 Tank 2003-2003 • B207 • (NON OBD II) | 1 | |
| 2 | 12 805 467 Fuel pump 2003-2003 • B207 • (NON OBD II) | 1 | |
| 3 | 22 672 171 Fuel gauge sensor B207E, B207L, B207R | 1 | |
| 4 | 22 672 293 Seal 2003-2003 • B207, B207E | 1 | |
| 8 | 21 992 746 Clip 2003-2003 • B207E, B207L, B207R • 5/8'' | 1 | |
| 9 | 12 788 302 12 798 685 Cable harness 2003-2003 • B207 | 1 | |
| 11 | 22 680 484 12 756 532 Evaporative emission canister 2003-2003 • B207 | 1 | |
| 13 | 22 629 654 Heat shield 2003-2003 • B207, B207E, B207L | 1 | |
| 14 | 22 629 652 Tensioning band 2003-2003 • B207E, B207L, B207R • LH | 1 | |
| 14 | 22 629 651 Tensioning band 2003-2003 • B207E, B207L, B207R • RH | 1 | |
| 15 | Screw B207E, B207L, B207R • Not as separate spare... | ||
| 16 | 25 612 415 Plastic rivet 2003-2003 • B207 | 3 |
