Question 1

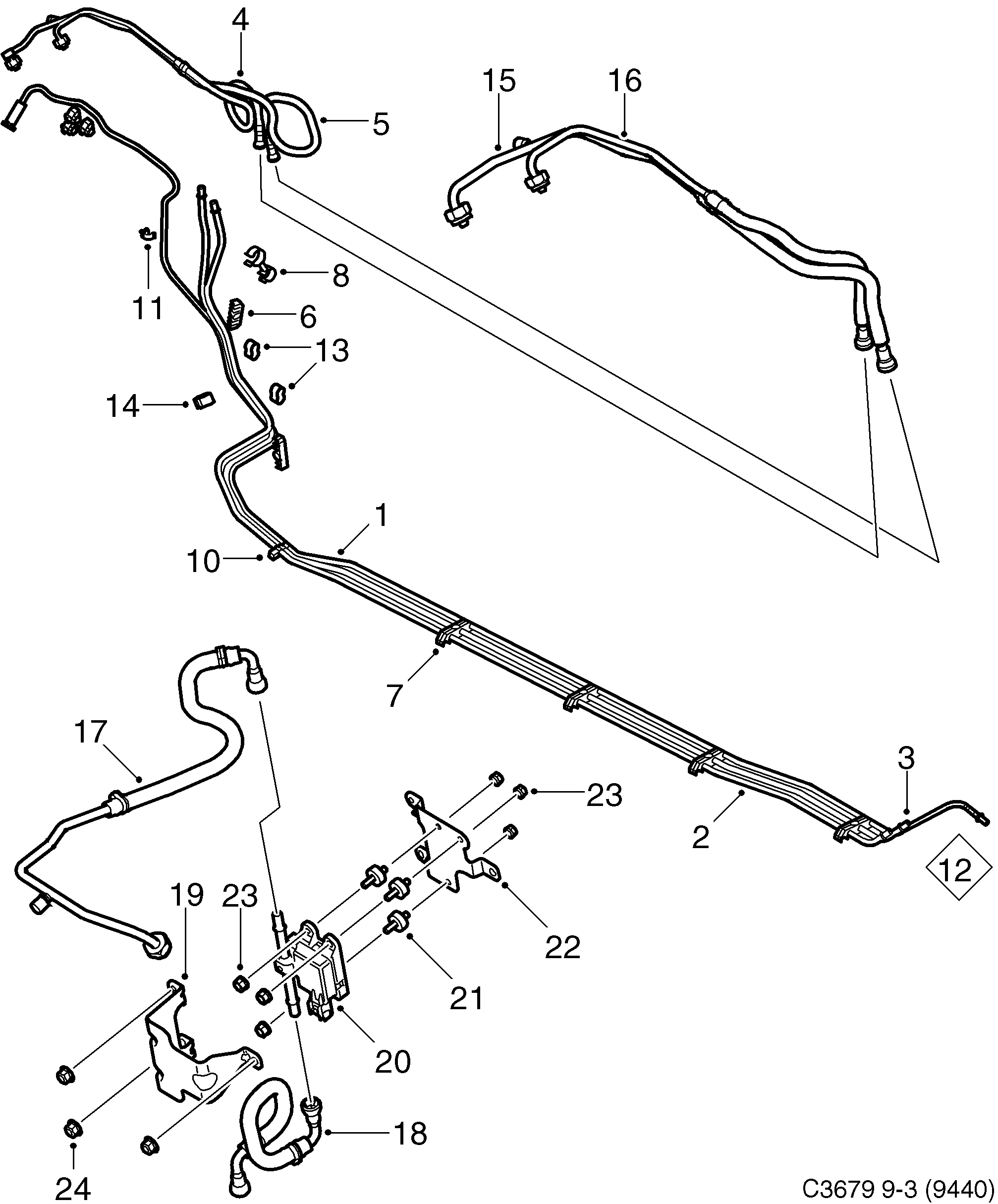

Where to find the exploded diagram for Fuel system on my Saab 9-3 (9440) 2003?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 9-3 (9440) 2003. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	12 789 824 Vent hose 2003-2003 • B207E, B207L, B207R	Vent hose	2003-2003 B207E, B207L, B207R	1
1	12 802 434 Vent hose 2003-2003 • B207	Vent hose	2003-2003 B207	1
2	12 789 826 Fuel pipe 2003-2003 • B207E, B207L, B207R • Connection: Delivery	Fuel pipe	2003-2003 B207E, B207L, B207R Connection: Delivery	1
3	12 789 825 Fuel pipe 2003-2003 • B207E, B207L, B207R • Connection: Return to return...	Fuel pipe	2003-2003 B207E, B207L, B207R Connection: Return to return...	1
4	12 789 823 Fuel pipe 2003-2011 • B207 • Connection: Return to return...	Fuel pipe	2003-2011 B207 Connection: Return to return...	1
5	12 789 822 Fuel pipe 2003-2011 • B207 • Connection: Delivery	Fuel pipe	2003-2011 B207 Connection: Delivery	1
6	12 789 827 Clamp B207E, B207L, B207R	Clamp	B207E, B207L, B207R	X
7	12 792 583 Clamp B207E, B207L, B207R	Clamp	B207E, B207L, B207R	X
10	12 792 582 Clamp B207E, B207L, B207R	Clamp	B207E, B207L, B207R	X
11	12 799 710 90 243 382 Clamp -2003 • B207	Clamp	-2003 B207	1
11	90 243 382 Clamp 2003-2011 • B207	Clamp	2003-2011 B207	1
11	12 789 828 Clamp B284	Clamp	B284	1
12	Vent hoseFuel system B207E, B207L, B207R • Not for USA and Canada.	Vent hoseFuel system B207E, B207L, B207R • Not for USA and Canada.
12	Vent hoseFuel system B207E, B207L, B207R • Market: CA, US	Vent hoseFuel system B207E, B207L, B207R • Market: CA, US
14	90 345 430 Clamp 2003-2011 • B207	Clamp	2003-2011 B207	1

Pos.	Part No.	Description	Usage	Qty
1	12 789 824 Vent hose 2003-2003 • B207E, B207L, B207R	Vent hose	2003-2003 B207E, B207L, B207R	1
1	12 802 434 Vent hose 2003-2003 • B207	Vent hose	2003-2003 B207	1
2	12 789 826 Fuel pipe 2003-2003 • B207E, B207L, B207R • Connection: Delivery	Fuel pipe	2003-2003 B207E, B207L, B207R Connection: Delivery	1
3	12 789 825 Fuel pipe 2003-2003 • B207E, B207L, B207R • Connection: Return to return...	Fuel pipe	2003-2003 B207E, B207L, B207R Connection: Return to return...	1
4	12 789 823 Fuel pipe 2003-2011 • B207 • Connection: Return to return...	Fuel pipe	2003-2011 B207 Connection: Return to return...	1
5	12 789 822 Fuel pipe 2003-2011 • B207 • Connection: Delivery	Fuel pipe	2003-2011 B207 Connection: Delivery	1
6	12 789 827 Clamp B207E, B207L, B207R	Clamp	B207E, B207L, B207R	X
7	12 792 583 Clamp B207E, B207L, B207R	Clamp	B207E, B207L, B207R	X
10	12 792 582 Clamp B207E, B207L, B207R	Clamp	B207E, B207L, B207R	X
11	12 799 710 90 243 382 Clamp -2003 • B207	Clamp	-2003 B207	1
11	90 243 382 Clamp 2003-2011 • B207	Clamp	2003-2011 B207	1
11	12 789 828 Clamp B284	Clamp	B284	1
12	Vent hoseFuel system B207E, B207L, B207R • Not for USA and Canada.	Vent hoseFuel system B207E, B207L, B207R • Not for USA and Canada.
12	Vent hoseFuel system B207E, B207L, B207R • Market: CA, US	Vent hoseFuel system B207E, B207L, B207R • Market: CA, US
14	90 345 430 Clamp 2003-2011 • B207	Clamp	2003-2011 B207	1

3300: Engine - Fuel system - Fuel pipe
