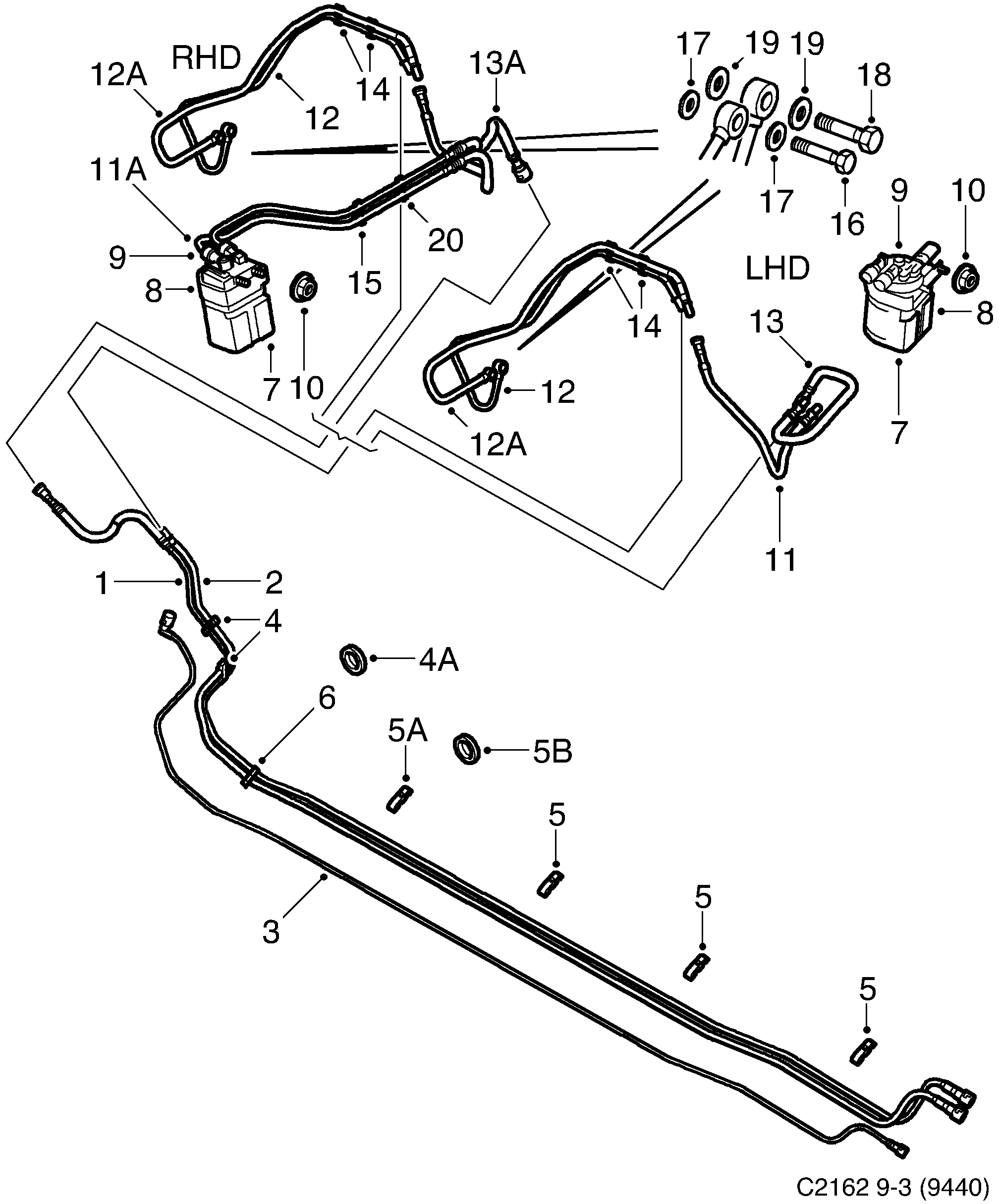

3350: Engine - Fuel system - Fuel pipe - Fuel filter

(2003 - 2004 | D223L) | For 9-3 (9440) (2003)

100%

(N°3300)

Section 3350

(N°3450)

Pos.	Part No.	Description	Usage	Qty
1	12 800 922 Fuel pipe D223L • Connection: Return to return...	Fuel pipe	D223L Connection: Return to return...	1
2	12 789 873 Fuel pipe D223L • Connection: Delivery	Fuel pipe	D223L Connection: Delivery	1
3	12 789 844 Fuel pipe LHD • D223L • Connection: Auxiliary heater	Fuel pipe	LHD D223L Connection: Auxiliary heater	1
4	12 800 494 Clamp D223L	Clamp	D223L	2
4A	12 800 496 Sound insulation D223L	Sound insulation	D223L	2
5	12 789 833 12 800 495 Clamp D223L	Clamp	D223L	3
5A	12 800 495 Clamp D223L • Front	Clamp	D223L Front	1
5B	12 800 496 Sound insulation D223L • Front	Sound insulation	D223L Front	1
6	12 792 585 Clamp D223L	Clamp	D223L	1
7	24 416 213 Fuel filter LHD • D223L • Name of the substance...	Fuel filter	LHD D223L Name of the substance...	1
7	24 430 379 Fuel filter RHD • D223L • Name of the substance...	Fuel filter	RHD D223L Name of the substance...	1
8	93 185 604 95 507 489 Filter insert D223L • (90 542 912)	Filter insert	D223L (90 542 912)	1
9	12 793 469 Bracket LHD • D223L	Bracket	LHD D223L	1
9	12 793 470 Bracket RHD • D223L	Bracket	RHD D223L	1
10	11 900 452 Nut D223L	Nut	D223L	X
11	12 796 025 Fuel pipe LHD • D223L • Connection: Fuel filter out	Fuel pipe	LHD D223L Connection: Fuel filter out	1
11A	12 789 832 Fuel pipe RHD • D223L • Connection: Fuel filter out	Fuel pipe	RHD D223L Connection: Fuel filter out	1
12	12 800 484 Fuel pipe D223L • Return	Fuel pipe	D223L Return	1
12A	12 789 885 Fuel pipe D223L • Pressure	Fuel pipe	D223L Pressure	1
13	12 789 874 Fuel pipe LHD • D223L • Connection: Fuel filter in...	Fuel pipe	LHD D223L Connection: Fuel filter in...	1
13A	12 789 879 Fuel pipe RHD • D223L • Connection: Fuel filter in	Fuel pipe	RHD D223L Connection: Fuel filter in	1
14	12 792 586 Clamp D223L	Clamp	D223L	X
15	91 57 870 Clamp D223L	Clamp	D223L	2
16	12 794 638 Banjo bolt D223L • (M12)	Banjo bolt	D223L (M12)	1
17	11 066 422 Gasket D223L • (12,2 X 15,4)	Gasket	D223L (12,2 X 15,4)	2
18	13 103 436 Banjo bolt D223L • (M14)	Banjo bolt	D223L (M14)	1
19	92 150 435 Gasket D223L • (14,2 X 17,9 X...	Gasket	D223L (14,2 X 17,9 X...	2
20	12 792 842 Clamp D223L	Clamp	D223L	1
