Pos.	Part No.	Description	Usage	Qty
1	12 992 763 55 352 883 Injection pump 2003-2003 • D223L • SPS programming (service programming...	Injection pump	2003-2003 D223L SPS programming (service programming...	1
2	92 02 068 Bracket D223L	Bracket	D223L	1
3	90 502 873 Screw D223L	Screw	D223L	4
4	24 416 344 Seal D223L	Seal	D223L	1
5	11 096 811 Screw D223L	Screw	D223L	2
6	11 095 071 Screw D223L	Screw	D223L	1
8	24 410 175 Chain gear D223L	Chain gear	D223L	1
9	90 500 699 Chain gear D223L	Chain gear	D223L	1
10	11 096 483 Screw D223L	Screw	D223L	4
11	24 436 134 55 353 028 Injection pipe D223L	Injection pipe	D223L	1
12	24 436 135 55 353 029 Injection pipe D223L	Injection pipe	D223L	1
13	92 02 474 91 96 701 Injector 2003-2003 • D223L	Injector	2003-2003 D223L	4
14	90 573 868 Carrier D223L	Carrier	D223L	4
15	90 502 704 Seal D223L	Seal	D223L	4
16	91 28 304 91 17 693 Seal D223L	Seal	D223L	4
17	90 500 732 O-ring D223L	O-ring	D223L	4
18	11 096 852 Screw D223L	Screw	D223L	4

Pos.	Part No.	Description	Usage	Qty
1	12 992 763 55 352 883 Injection pump 2003-2003 • D223L • SPS programming (service programming...	Injection pump	2003-2003 D223L SPS programming (service programming...	1
2	92 02 068 Bracket D223L	Bracket	D223L	1
3	90 502 873 Screw D223L	Screw	D223L	4
4	24 416 344 Seal D223L	Seal	D223L	1
5	11 096 811 Screw D223L	Screw	D223L	2
6	11 095 071 Screw D223L	Screw	D223L	1
8	24 410 175 Chain gear D223L	Chain gear	D223L	1
9	90 500 699 Chain gear D223L	Chain gear	D223L	1
10	11 096 483 Screw D223L	Screw	D223L	4
11	24 436 134 55 353 028 Injection pipe D223L	Injection pipe	D223L	1
12	24 436 135 55 353 029 Injection pipe D223L	Injection pipe	D223L	1
13	92 02 474 91 96 701 Injector 2003-2003 • D223L	Injector	2003-2003 D223L	4
14	90 573 868 Carrier D223L	Carrier	D223L	4
15	90 502 704 Seal D223L	Seal	D223L	4
16	91 28 304 91 17 693 Seal D223L	Seal	D223L	4
17	90 500 732 O-ring D223L	O-ring	D223L	4
18	11 096 852 Screw D223L	Screw	D223L	4

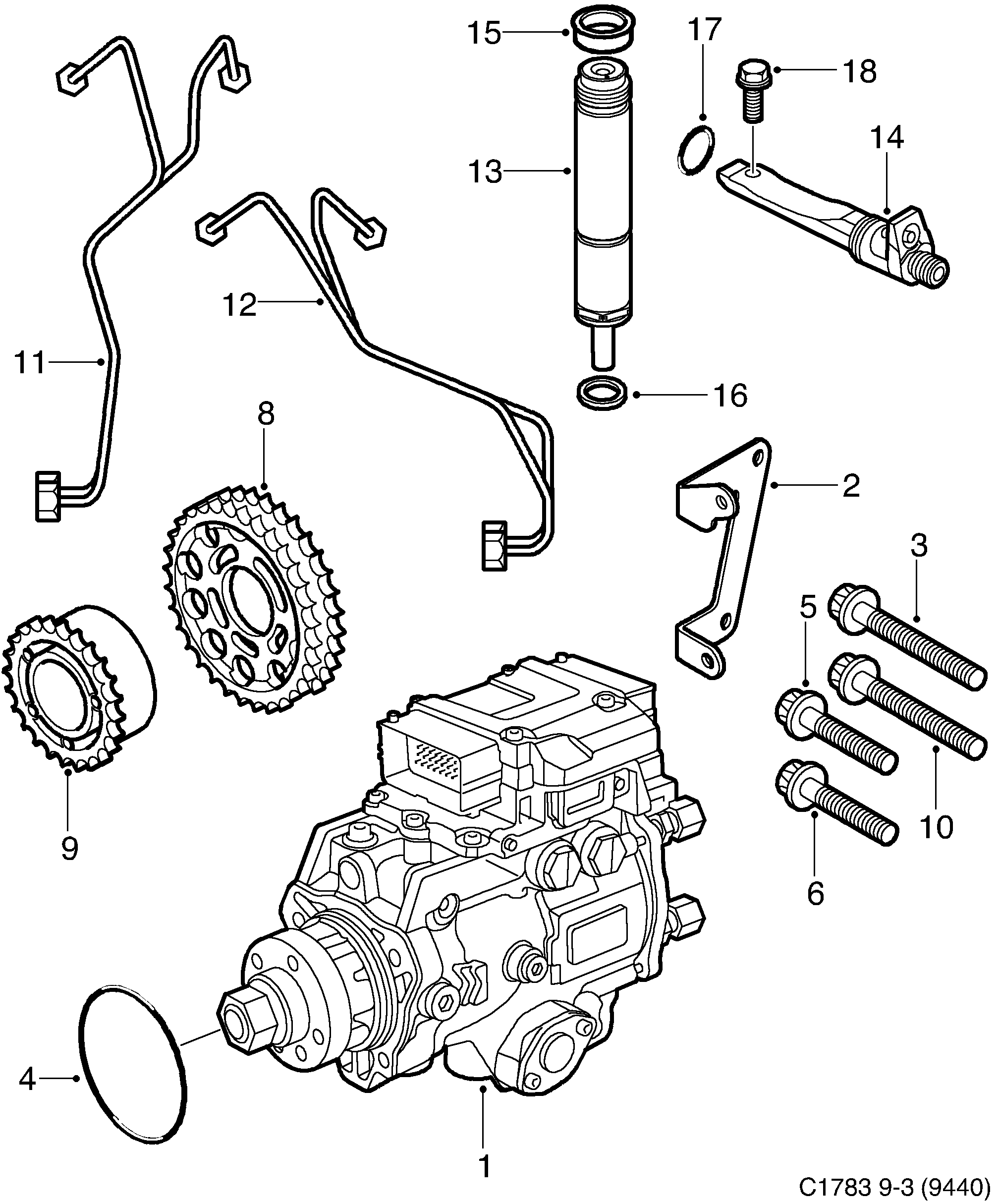

3500: Engine - Fuel system - Injection pump
