Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-3 (9440) 2003?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-3 (9440) 2003. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

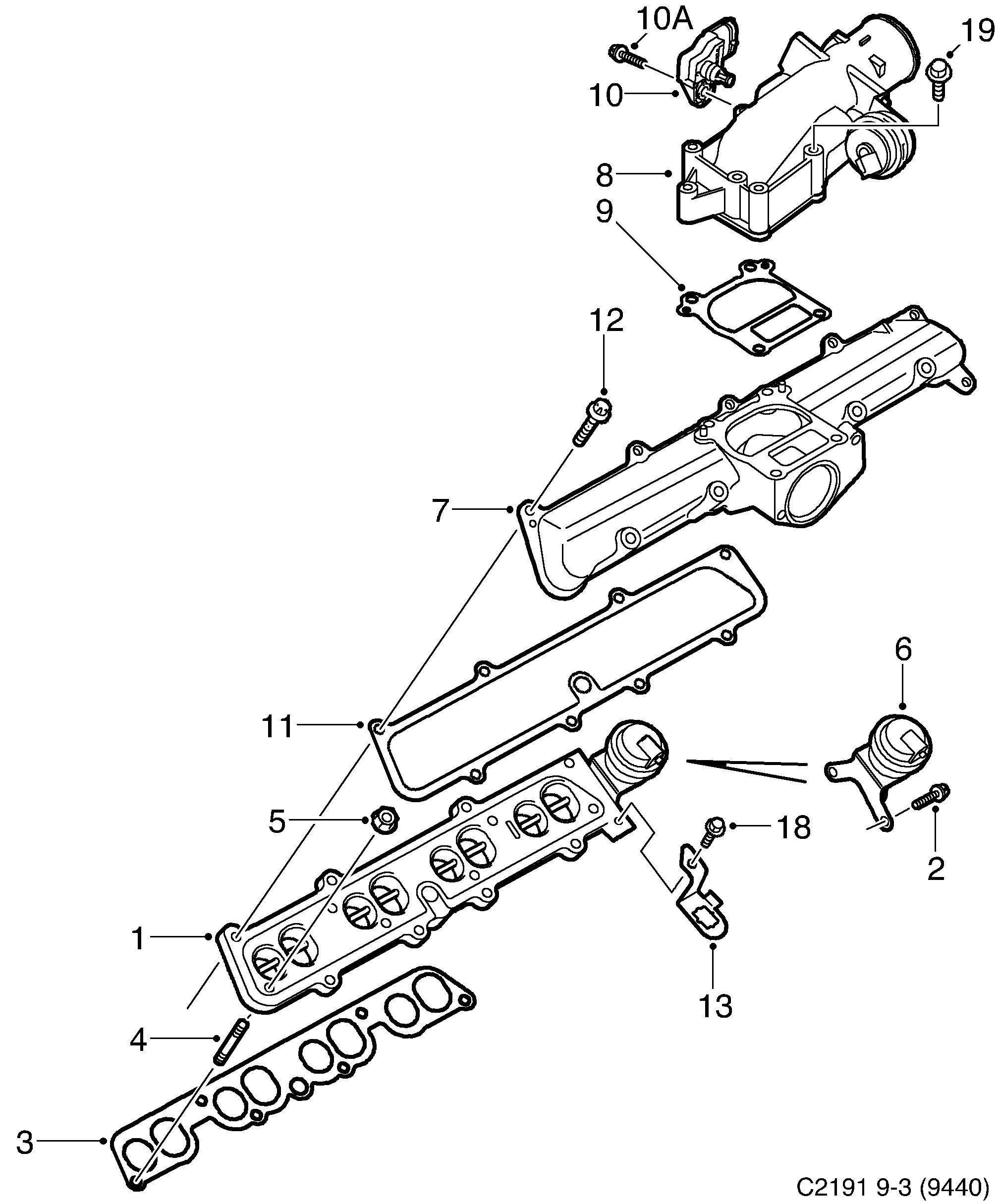

Pos.	Part No.	Description	Usage	Qty
1	55 351 529 Intake manifold D223L	Intake manifold	D223L	1
2	11 093 881 Screw D223L	Screw	D223L	2
3	90 500 940 Gasket D223L	Gasket	D223L	1
4	91 28 191 Stud D223L	Stud	D223L	7
5	90 502 418 Nut D223L	Nut	D223L	7
6	53 33 950 Vacuum box D223L	Vacuum box	D223L	1
7	24 461 453 55 351 994 Intake manifold D223L	Intake manifold	D223L	1
7	55 351 994 Intake manifold D223L	Intake manifold	D223L	1
8	55 350 621 Intake manifold D223L	Intake manifold	D223L	1
9	92 26 544 Gasket D223L	Gasket	D223L	1
10	24 459 853 93 171 176 Intake air temperature sensor D223L	Intake air temperature sensor	D223L	1
10A	11 095 001 Screw D223L	Screw	D223L	1
11	92 26 543 Gasket D223L	Gasket	D223L	1
12	11 093 871 11 093 872 Screw D223L	Screw	D223L	8
13	90 568 019 Bracket D223L	Bracket	D223L	1
18	11 900 322 Screw D223L	Screw	D223L	1
19	11 095 271 Screw D223L	Screw	D223L	4

Pos.	Part No.	Description	Usage	Qty
1	55 351 529 Intake manifold D223L	Intake manifold	D223L	1
2	11 093 881 Screw D223L	Screw	D223L	2
3	90 500 940 Gasket D223L	Gasket	D223L	1
4	91 28 191 Stud D223L	Stud	D223L	7
5	90 502 418 Nut D223L	Nut	D223L	7
6	53 33 950 Vacuum box D223L	Vacuum box	D223L	1
7	24 461 453 55 351 994 Intake manifold D223L	Intake manifold	D223L	1
7	55 351 994 Intake manifold D223L	Intake manifold	D223L	1
8	55 350 621 Intake manifold D223L	Intake manifold	D223L	1
9	92 26 544 Gasket D223L	Gasket	D223L	1
10	24 459 853 93 171 176 Intake air temperature sensor D223L	Intake air temperature sensor	D223L	1
10A	11 095 001 Screw D223L	Screw	D223L	1
11	92 26 543 Gasket D223L	Gasket	D223L	1
12	11 093 871 11 093 872 Screw D223L	Screw	D223L	8
13	90 568 019 Bracket D223L	Bracket	D223L	1
18	11 900 322 Screw D223L	Screw	D223L	1
19	11 095 271 Screw D223L	Screw	D223L	4

4050: Engine - Intake and exhaust system - Inlet pipe
