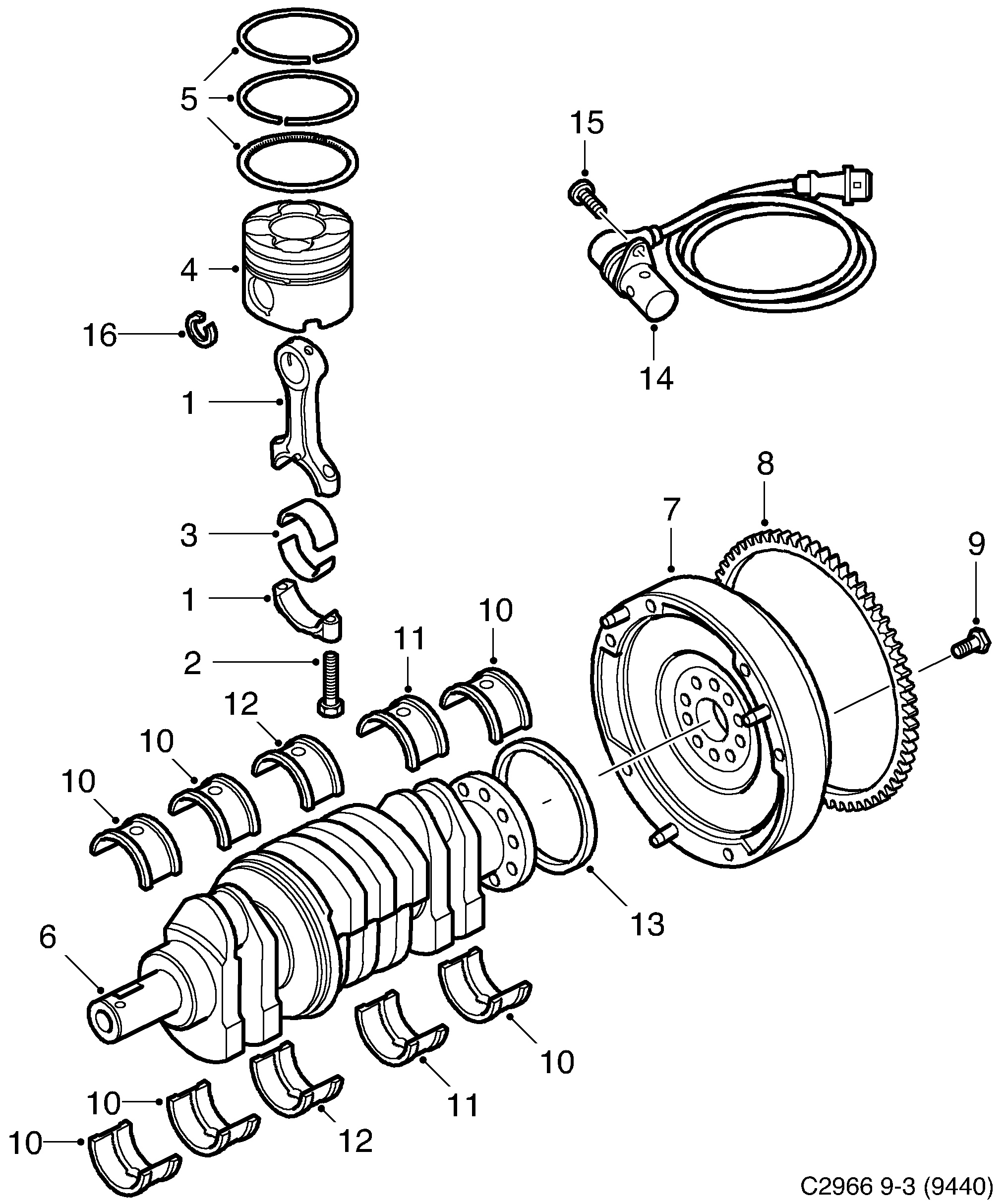

Pos.	Part No.	Description	Usage	Qty
1	90 528 646 Connecting rod D223L	Connecting rod	D223L	4
2	90 467 192 Screw D223L	Screw	D223L	8
3	93 170 296 Connecting rod bearing D223L • STD	Connecting rod bearing	D223L STD	4
3	93 170 297 Connecting rod bearing D223L • -0,25	Connecting rod bearing	D223L -0,25	4
4	53 42 266 91 58 545 Piston D223L • Klass 99	Piston	D223L Klass 99	4
4	91 58 546 Piston D223L • Klass 00	Piston	D223L Klass 00	4
4	91 58 547 Piston D223L • Klass 01	Piston	D223L Klass 01	4
4	53 42 415 Piston D223L • Klass 02	Piston	D223L Klass 02	4
4	53 42 191 Piston D223L • Klass 08	Piston	D223L Klass 08	4
4	91 28 052 Piston D223L • 0,5 Klass 07	Piston	D223L 0,5 Klass 07	4
5	91 96 520 Piston rings, set D223L • STD	Piston rings, set	D223L STD	4
5	91 96 523 Piston rings, set D223L • 0,5	Piston rings, set	D223L 0,5	4
6	24 439 871 Crankshaft D223L	Crankshaft	D223L	1
7	93 173 058 Flywheel D223L	Flywheel	D223L	1
7	24 410 096 Flywheel D223L	Flywheel	D223L	1
9	91 92 342 Screw D223L	Screw	D223L	10
9	90 295 195 Screw D223L	Screw	D223L	10
10	53 42 811 93 170 278 Main bearing D223L • STD	Main bearing	D223L STD	3
10	53 43 264 93 170 279 Main bearing D223L • -0,25	Main bearing	D223L -0,25	3
11	53 43 421 93 170 284 Main bearing D223L • STD	Main bearing	D223L STD	1
11	53 43 439 93 170 285 Main bearing D223L • -0,25	Main bearing	D223L -0,25	1
12	53 43 710 93 170 320 Main bearing D223L • STD	Main bearing	D223L STD	1
12	53 43 728 93 170 321 Main bearing D223L • -0,25	Main bearing	D223L -0,25	1
13	90 570 322 Sealing ring D223L	Sealing ring	D223L	1
14	90 540 188 Crankshaft position sensor D223L	Crankshaft position sensor	D223L	1
15	11 093 881 Screw D223L	Screw	D223L	1
16	90 500 815 Lock ring D223L	Lock ring	D223L	1

Pos.	Part No.	Description	Usage	Qty
1	90 528 646 Connecting rod D223L	Connecting rod	D223L	4
2	90 467 192 Screw D223L	Screw	D223L	8
3	93 170 296 Connecting rod bearing D223L • STD	Connecting rod bearing	D223L STD	4
3	93 170 297 Connecting rod bearing D223L • -0,25	Connecting rod bearing	D223L -0,25	4
4	53 42 266 91 58 545 Piston D223L • Klass 99	Piston	D223L Klass 99	4
4	91 58 546 Piston D223L • Klass 00	Piston	D223L Klass 00	4
4	91 58 547 Piston D223L • Klass 01	Piston	D223L Klass 01	4
4	53 42 415 Piston D223L • Klass 02	Piston	D223L Klass 02	4
4	53 42 191 Piston D223L • Klass 08	Piston	D223L Klass 08	4
4	91 28 052 Piston D223L • 0,5 Klass 07	Piston	D223L 0,5 Klass 07	4
5	91 96 520 Piston rings, set D223L • STD	Piston rings, set	D223L STD	4
5	91 96 523 Piston rings, set D223L • 0,5	Piston rings, set	D223L 0,5	4
6	24 439 871 Crankshaft D223L	Crankshaft	D223L	1
7	93 173 058 Flywheel D223L	Flywheel	D223L	1
7	24 410 096 Flywheel D223L	Flywheel	D223L	1
9	91 92 342 Screw D223L	Screw	D223L	10
9	90 295 195 Screw D223L	Screw	D223L	10
10	53 42 811 93 170 278 Main bearing D223L • STD	Main bearing	D223L STD	3
10	53 43 264 93 170 279 Main bearing D223L • -0,25	Main bearing	D223L -0,25	3
11	53 43 421 93 170 284 Main bearing D223L • STD	Main bearing	D223L STD	1
11	53 43 439 93 170 285 Main bearing D223L • -0,25	Main bearing	D223L -0,25	1
12	53 43 710 93 170 320 Main bearing D223L • STD	Main bearing	D223L STD	1
12	53 43 728 93 170 321 Main bearing D223L • -0,25	Main bearing	D223L -0,25	1
13	90 570 322 Sealing ring D223L	Sealing ring	D223L	1
14	90 540 188 Crankshaft position sensor D223L	Crankshaft position sensor	D223L	1
15	11 093 881 Screw D223L	Screw	D223L	1
16	90 500 815 Lock ring D223L	Lock ring	D223L	1
