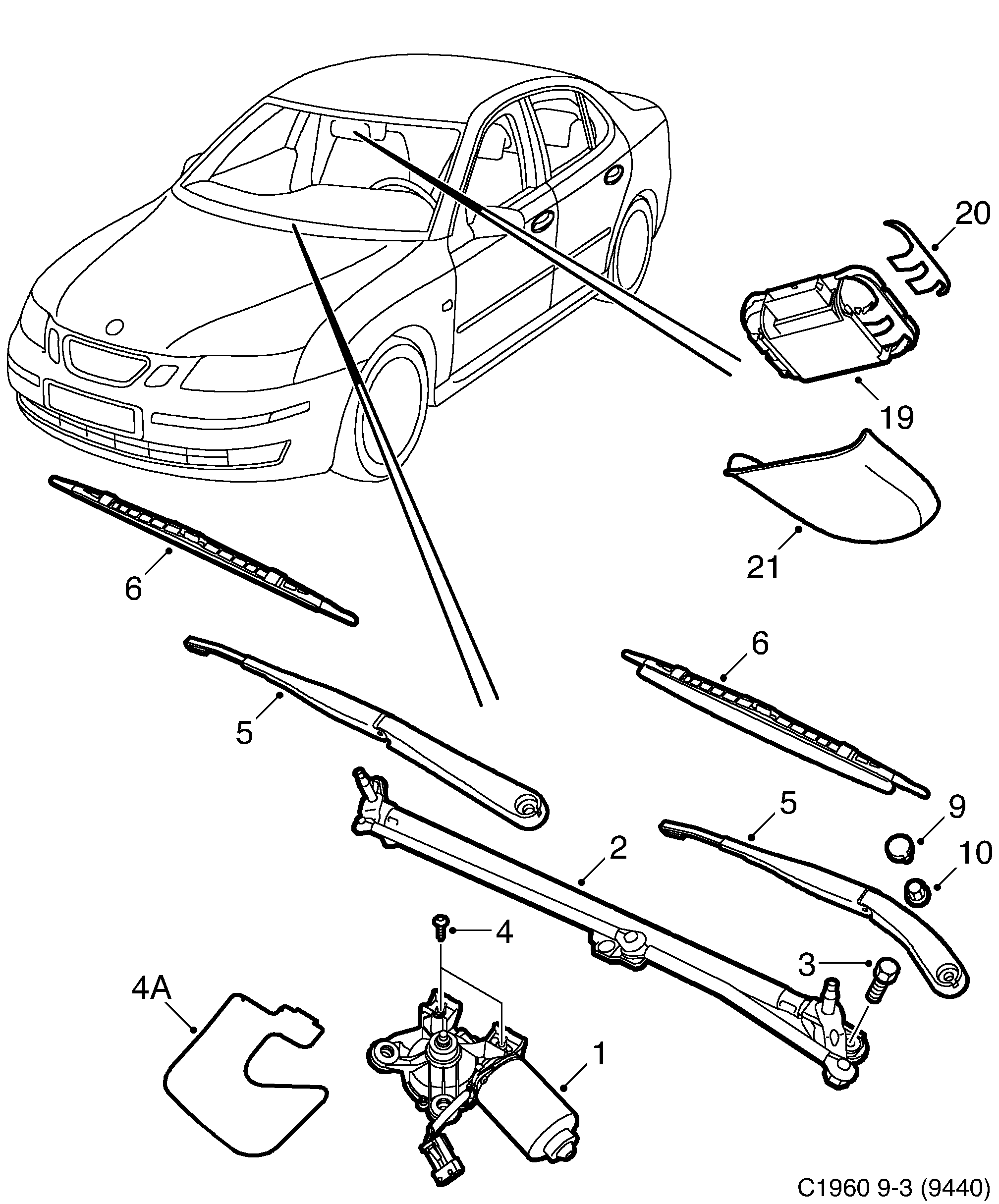

1701: Electrical, general - Electric equipment, other - Windscreen wiper
(2003 - 2005 | 4D, CV) | For 9-3 (9440) (2003)
Ch. 4D --51046706, CV LHD --56012610, CV RHD --56012281.
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 805 859 NLS Electric motor NLS use Wiper unit... | 1 | |
| 2 | 12 785 919 12 755 304 Spindle frame LHD • NLS use Wiper unit... | 1 | |
| 2 | 12 785 932 12 755 305 Spindle frame RHD • NLS use Wiper unit... | 1 | |
| 3 | 12 785 920 Hexagon screw For Wiper unit 12... | 4 | |
| 4 | 93 171 522 Screw For Wiper unit 12... | 2 | |
| 4A | 12 796 162 Cover -2003 | 1 | |
| 5 | 12 785 925 12 755 306 Wiper arm LHD • driver's side | 1 | |
| 5 | 12 785 933 12 755 307 Wiper arm RHD • driver's side | 1 | |
| 5 | 12 785 929 12 755 308 Wiper arm passenger side | 1 | |
| 6 | 12 755 312 93 196 010 Wiper blade LHD • driver's side | 1 | |
| 6 | 12 755 313 93 196 010 Wiper blade RHD • driver's side | 1 | |
| 6 | 12 755 314 93 196 007 Wiper blade LHD • passenger side | 1 | |
| 6 | 12 755 315 93 196 007 Wiper blade RHD • passenger side | 1 | |
| 6 | 12 800 768 Wiper blade 2003-, LHD • ALT. TO 12 755... | 1 | |
| 6 | 93 194 638 Wiper blade kit LHD • Contains the LH and... | 1 | |
| 6 | 93 194 639 Wiper blade kit RHD • Contains the LH and... | 1 | |
| 9 | 12 785 917 Nut cap -2003 | 2 | |
| 9 | 90 347 857 Nut cap 2003- | 2 | |
| 10 | 11 900 429 Nut | 2 | |
| 19 | 12 785 535 12 803 629 Sensor -2003 | 1 | |
| 19 | 12 803 629 Sensor 2003- • RAIN SENSOR | 1 | |
| 20 | 12 799 937 Catch | 2 | |
| 21 | 12 796 773 Cover | 1 |
