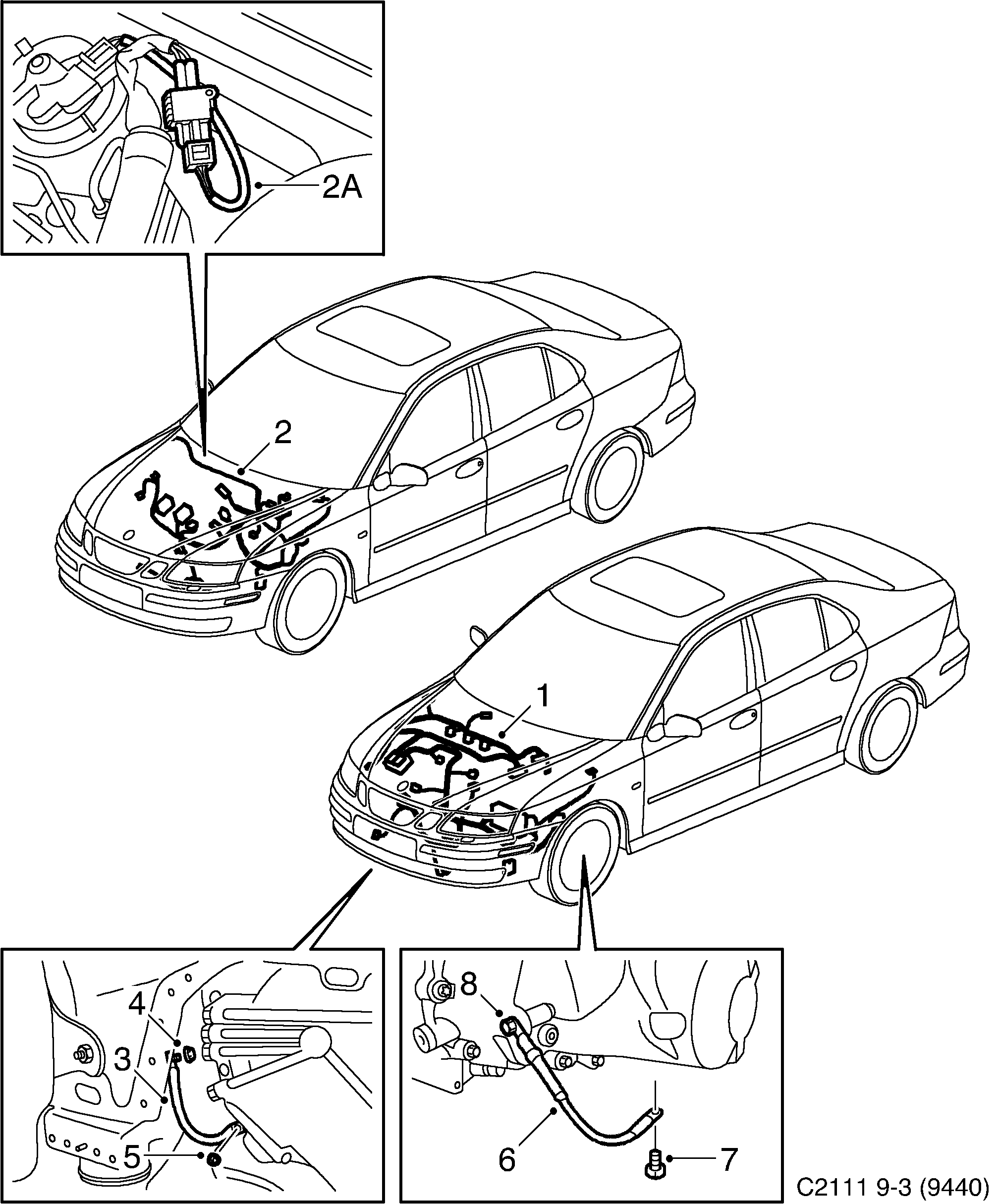

3110: Electrical, general - Wiring and fuses - Engine, gearbox
(2003 | 4D) | For 9-3 (9440) (2003)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 799 742 Cable harness B207 • Cold climate. engine | 1 | |
| 1 | 12 785 853 12 799 742 Cable harness B207 • Hot climate. engine | 1 | |
| 1 | 12 799 741 Cable harness B207 • SAI | Cold climate.... | 1 | |
| 1 | 12 785 855 12 799 741 Cable harness B207 • SAI | Hot climate.... | 1 | |
| 2 | 12 785 861 Cable harness D223L • engine | 1 | |
| 2A | 12 799 634 Cable harness RHD • D223L • fuel filter | 1 | |
| 3 | 12 785 584 Battery cable 5-SPEED | 1 | |
| 4 | 11 900 451 Nut | 1 | |
| 5 | 11 900 452 Nut | 1 | |
| 6 | 12 785 584 Battery cable 6-SPEED | 1 | |
| 7 | 92 151 008 11 094 891 Hexagon screw | 1 | |
| 8 | 11 900 172 Hexagon screw | 1 |
