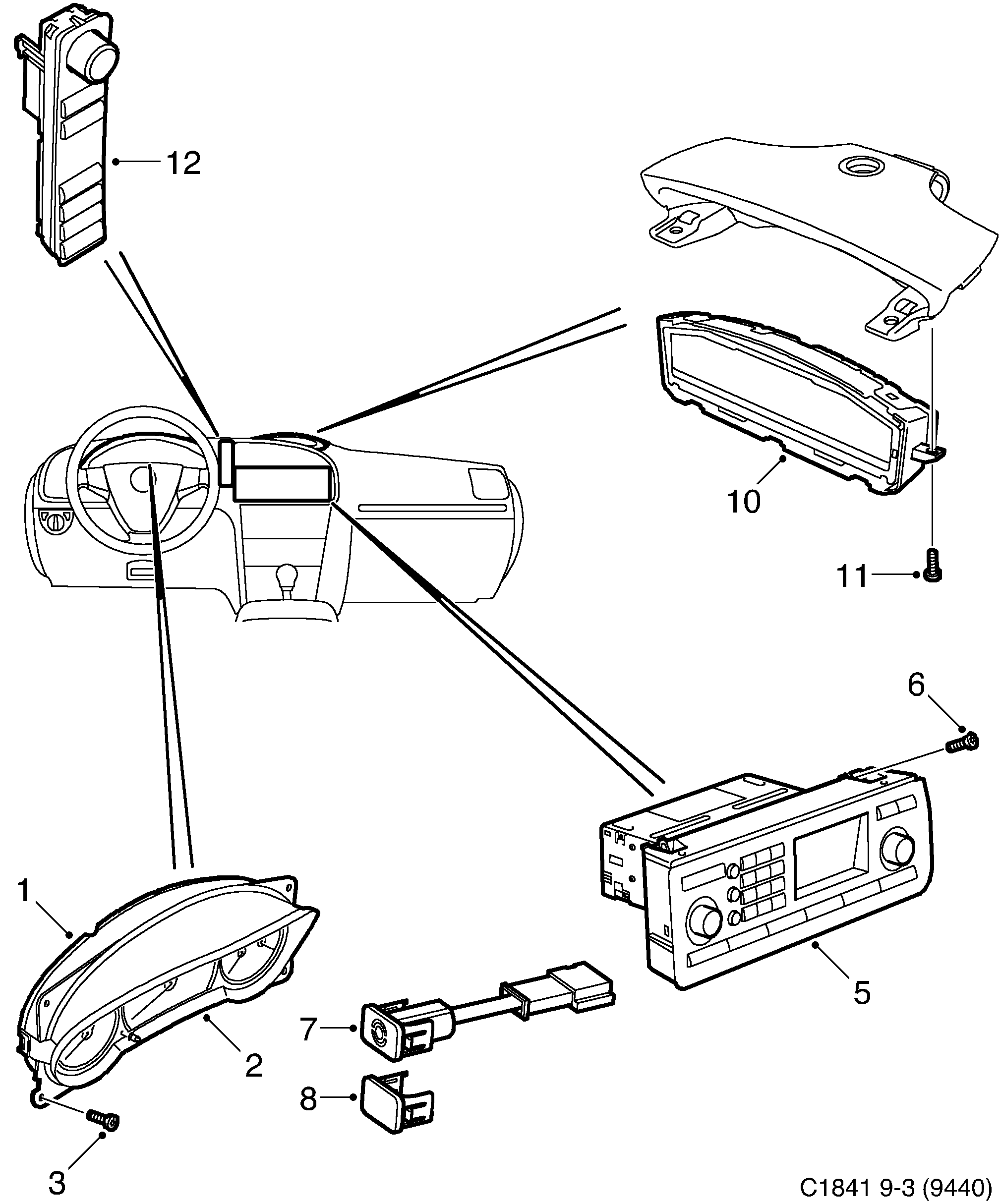

5000: Electrical, general - Wiring and fuses - Instrument
(2003 - 2005 | 4D, CV) | For 9-3 (9440) (2003)
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 785 194 12 802 330 Main instrument unit -2003 • B207E • KM/H | Black | 1 | |
| 1 | 12 800 505 Main instrument unit 2003-2003 • B207E • KM/H | Black | 1 | |
| 1 | 12 785 195 Main instrument unit -2003 • B207E • MPH | Black | 1 | |
| 1 | 12 800 506 12 802 331 Main instrument unit 2003-2003 • B207E • MPH | Black | 1 | |
| 1 | 12 785 196 12 802 332 Main instrument unit -2003 • B207L, B207R • KM/H | Black | 1 | |
| 1 | 12 800 507 Main instrument unit 2003-2003 • B207L, B207R • KM/H | Black | 1 | |
| 1 | 12 785 197 12 802 333 Main instrument unit -2003 • B207L, B207R • MPH | Black | 1 | |
| 1 | 12 800 508 12 802 333 Main instrument unit 2003-2003 • B207L, B207R • MPH | Black | 1 | |
| 1 | 12 785 198 12 802 334 Main instrument unit -2003 • D223L • KM/H | Black | 1 | |
| 1 | 12 800 509 12 802 334 Main instrument unit 2003-2003 • D223L • KM/H | Black | 1 | |
| 1 | 12 785 199 12 802 335 Main instrument unit -2003 • D223L • MPH | Black | 1 | |
| 1 | 12 800 510 12 802 335 Main instrument unit 2003-2003 • D223L • MPH | Black | 1 | |
| 1 | 12 798 587 12 768 227 Main instrument unit -2003 • B207E • KM/H | Metallic Finish | 1 | |
| 1 | 12 800 511 12 768 227 Main instrument unit 2003-2003 • B207E • KM/H | Metallic Finish | 1 | |
| 1 | 12 798 588 12 759 334 Main instrument unit -2003 • B207E • MPH | Metallic Finish | 1 | |
| 1 | 12 800 512 12 759 334 Main instrument unit 2003-2003 • B207E • MPH | Metallic Finish | 1 | |
| 1 | 12 790 786 12 768 229 Main instrument unit -2003 • B207L, B207R • KM/H | Metallic Finish | 1 | |
| 1 | 12 800 513 12 768 229 Main instrument unit 2003-2003 • B207L, B207R • KM/H | Metallic Finish | 1 | |
| 1 | 12 790 787 12 768 230 Main instrument unit -2003 • B207L, B207R • MPH | Metallic Finish | 1 | |
| 1 | 12 800 514 12 768 230 Main instrument unit 2003-2003 • B207L, B207R • MPH | Metallic Finish | 1 | |
| 1 | 12 798 589 12 759 337 Main instrument unit -2003 • D223L • KM/H | Metallic Finish | 1 | |
| 1 | 12 800 515 12 759 337 Main instrument unit 2003-2003 • D223L • KM/H | Metallic Finish | 1 | |
| 1 | 12 798 590 12 768 232 Main instrument unit -2003 • D223L • MPH | Metallic Finish | 1 | |
| 1 | 12 800 516 12 768 232 Main instrument unit 2003-2003 • D223L • MPH | Metallic Finish | 1 | |
| 2 | 12 791 463 Instrument bezel 2003-2004 • Black | 1 | |
| 2 | 12 787 874 Instrument bezel 2003-2004 • (12 802 042) |... | 1 | |
| 3 | 92 152 214 12 780 283 Screw | 4 | |
| 5 | 12 799 716 12 804 425 Control panel 2003-2003, LHD • ICM (Infotainment Control Module) | 1 | |
| 5 | 12 799 717 12 801 813 Control panel 2003-2003, RHD • ICM (Infotainment Control Module) | 1 | |
| 5 | 12 799 722 12 799 617 Control panel 2003-2003, LHD • ICM (Infotainment Control Module)... | 1 | |
| 5 | 12 799 718 12 804 427 Control panel 2003-2003, LHD • ICM (Infotainment Control Module)... | 1 | |
| 5 | 12 799 719 12 799 618 Control panel 2003-2003, RHD • For all markets with... | 1 | |
| 5 | 12 799 720 12 799 615 Control panel 2003-2003, LHD • ICM (Infotainment Control Module)... | 1 | |
| 5 | 12 799 721 12 799 616 Control panel 2003-2003, RHD • ICM (Infotainment Control Module)... | 1 | |
12 775 793 Knob For cars with ICM... | 1 | ||
Knob Not as separate spare... | 3 | ||
RadioWiring and fuses | |||
| 6 | 92 152 214 12 780 283 Screw | 2 | |
| 7 | 12 797 129 Contact AUX | 1 | |
| 8 | 12 797 196 Cover | 1 | |
| 10 | 12 798 727 12 802 302 Information display -2004 | 1 | |
| 11 | 92 152 214 12 780 283 Screw | 2 | |
| 12 | 12 792 587 Switch | 1 | |
| 12 | 12 792 588 Switch For cars with Stabilisation... | 1 |
