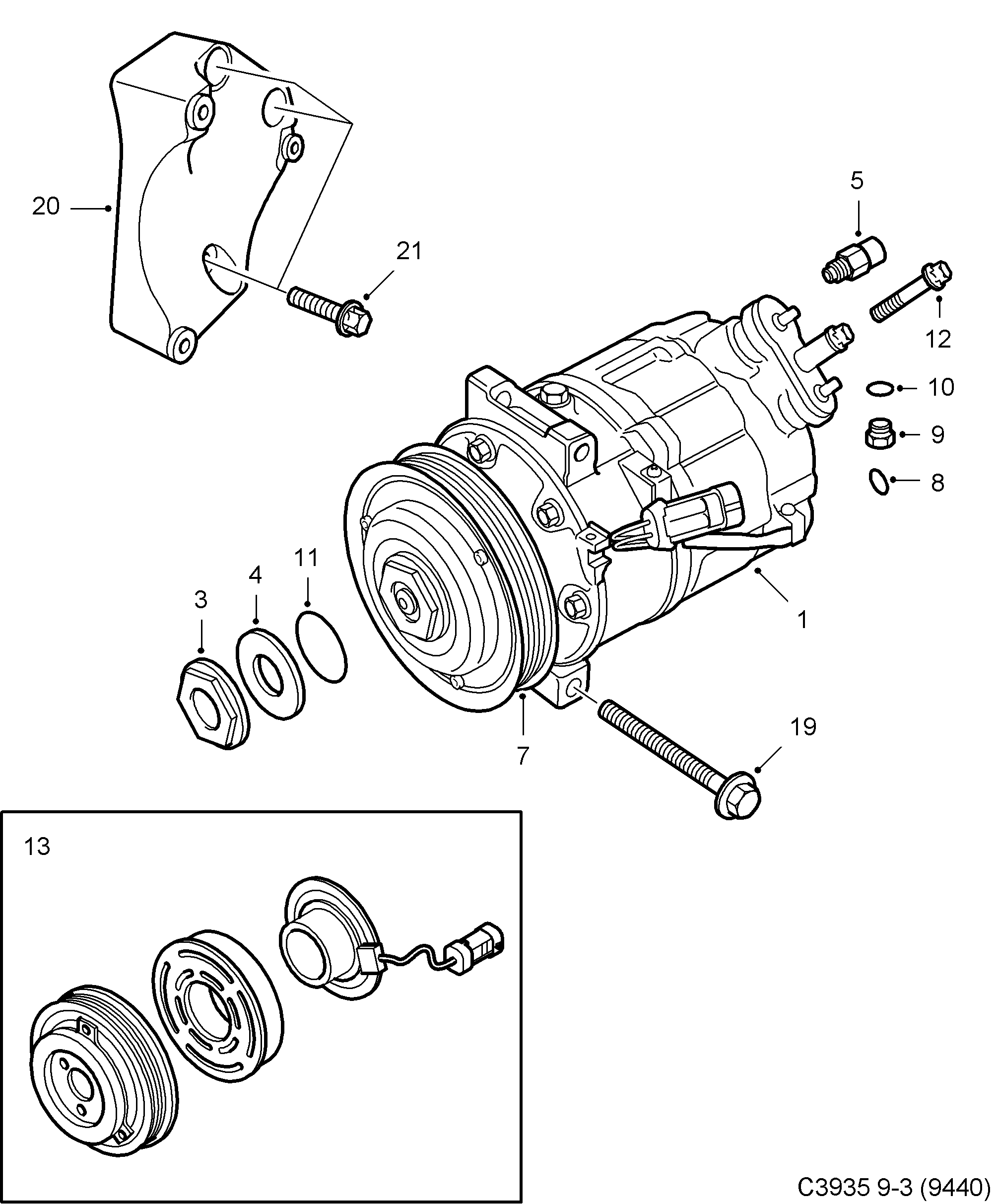

250: Heating and ventilation - AC compressor
(2003 - 2012 | 4D, CV, 5D) | For 9-3 (9440) (2003)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 24 411 280 12 758 381 Compressor -2005 • Z18XE, B207 • Also available as exchange... | 1 | |
| 1 | 12 792 669 Compressor 2003-2010 • B284 | 1 | |
| 1 | 24 411 249 13 171 593 Compressor 2003-2003 • D223L | 1 | |
| 1 | 13 140 505 13 171 593 Compressor 2003-2004 • D223L • Also available as exchange... | 1 | |
| 1 | 13 191 997 Compressor 2003-2004 • D223L | 1 | |
| 1 | 24 411 270 13 191 995 Compressor 2003-2005 • Z18XE | 1 | |
| 4 | 90 543 271 Raceway washer | 1 | |
| 5 | 91 94 582 Valve | 1 | |
| 7 | 93 184 431 Clutch -2005 • B207 | 1 | |
| 7 | 93 184 285 Clutch Z19DT, Z19DTH, Z19DTR, A19DTR, A20NFT | 1 | |
| 7 | 93 185 794 Clutch 2003-2010 • B284 • With pulley and coil | 1 | |
| 7 | 93 184 432 Conversion kit 2003-2005 • D223L | 1 | |
| 8 | 90 543 272 Lock ring | 1 | |
| 9 | 93 182 417 Screw | 1 | |
| 10 | 90 543 274 O-ring | 1 | |
| 11 | 93 184 284 Part kit | 1 | |
| 11 | 93 182 516 Sealing ring kit 2003-2010 • D223L, Z19DT, Z19DTH | 1 | |
| 12 | 93 173 699 Screw | 1 | |
| 19 | 11 519 177 24 447 549 Screw 2003-2003 | 3 | |
| 20 | 92 26 302 55 558 799 Bracket 2003-2005 • Z18XE | 1 | |
| 20 | BracketSteering assembly 2003-2005 • D223L • Not as separate spare part. | ||
| 21 | 11 097 651 Screw 2003-2004 • D223L • M10 x 45 | 3 | |
| 21 | 11 094 051 Screw 2003-2004 • D223L • M10 x 105 | 1 | |
| 21 | 11 094 791 Screw 2003-2004 • D223L • M10X45 | 3 |
