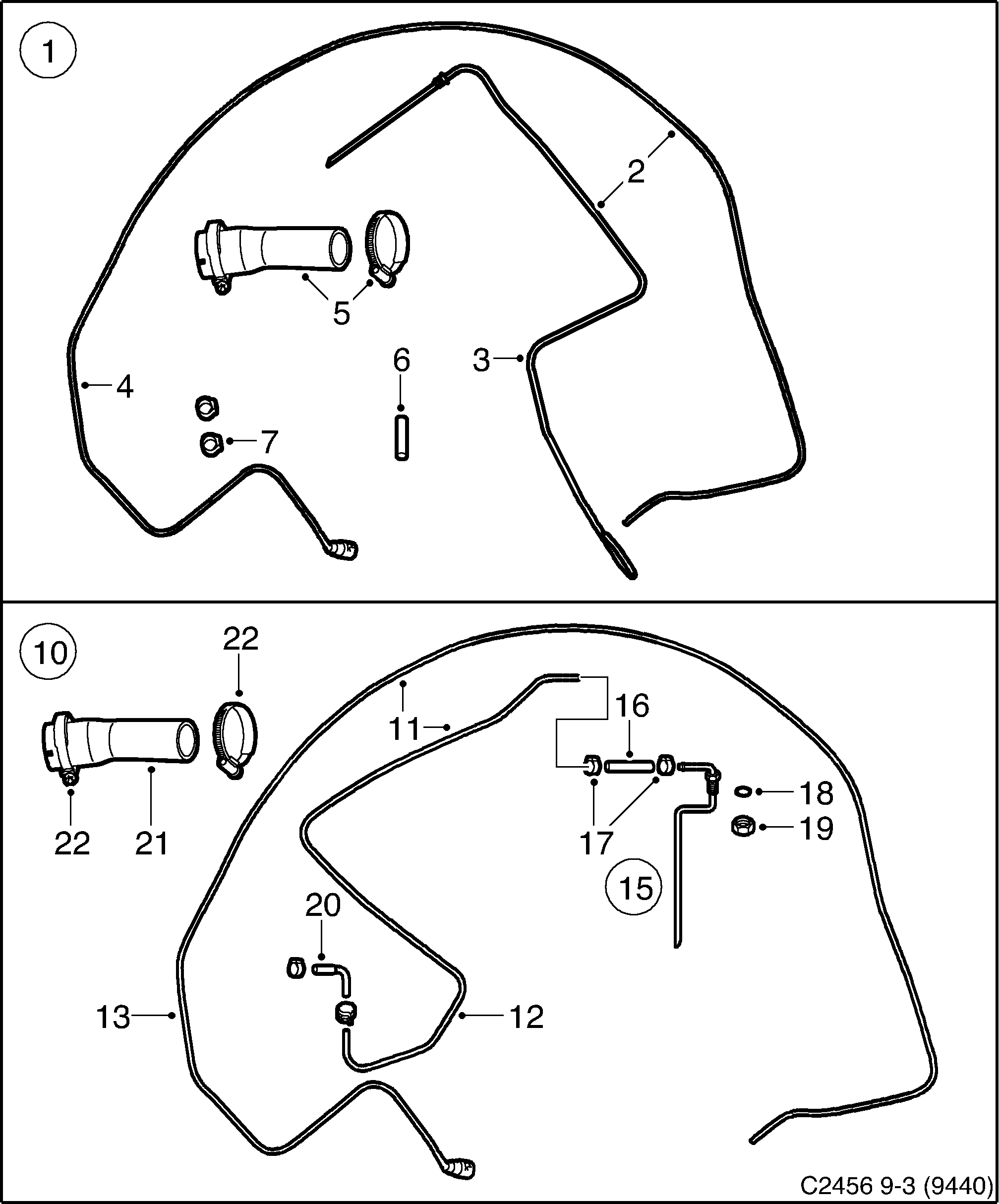

651: Accessories - Accessories body - Climate control - Tank connection
(2003 - 2006 | B207E, B207L, B207R | 4D, CV) | For 9-3 (9440) (2003)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 804 145 Tank connection 2003-2003 • B207E, B207L, B207R | 1 | |
| 2 | 12 793 767 Fuel pipe B207E, B207L, B207R • assembly | 1 | |
| 3 | 12 791 980 Fuel pipe B207E, B207L, B207R | 1 | |
| 4 | 12 791 310 Fuel pipe B207E, B207L, B207R | 1 | |
| 5 | 12 800 324 Tank connection B207E, B207L, B207R • kit | 1 | |
| 6 | 12 791 736 Junction hose B207E, B207L, B207R | 1 | |
| 7 | 92 152 367 Hose clamp B207E, B207L, B207R | 2 | |
| 11 | 12 803 751 Fuel pipe B207E, B207L, B207R • assembly | 1 | |
| 12 | 12 803 401 Fuel pipe B207E, B207L, B207R | 1 | |
| 13 | 12 791 310 Fuel pipe B207E, B207L, B207R | 1 | |
| 15 | 12 804 147 Supplementary kit, fuel connection B207E, B207L, B207R | 1 | |
| 16 | 12 804 148 Fuel hose B207E, B207L, B207R | 1 | |
| 17 | 92 152 367 Hose clamp B207E, B207L, B207R | 2 | |
| 18 | 12 805 052 O-ring B207E, B207L, B207R | 1 | |
| 19 | 12 805 051 Hexagon nut B207E, B207L, B207R | 1 | |
| 20 | 12 804 127 Junction hose B207E, B207L, B207R | 1 | |
| 21 | 24 435 113 Hose B207E, B207L, B207R | 1 | |
92 151 159 Hose clamp B207E, B207L, B207R | 1 | ||
92 152 409 Hose clamp B207E, B207L, B207R | 1 | ||
| 22 | 24 442 223 93 178 164 Hose clamp B207E, B207L, B207R | 1 | |
11 083 891 Hose clamp B207E, B207L, B207R | 1 |
