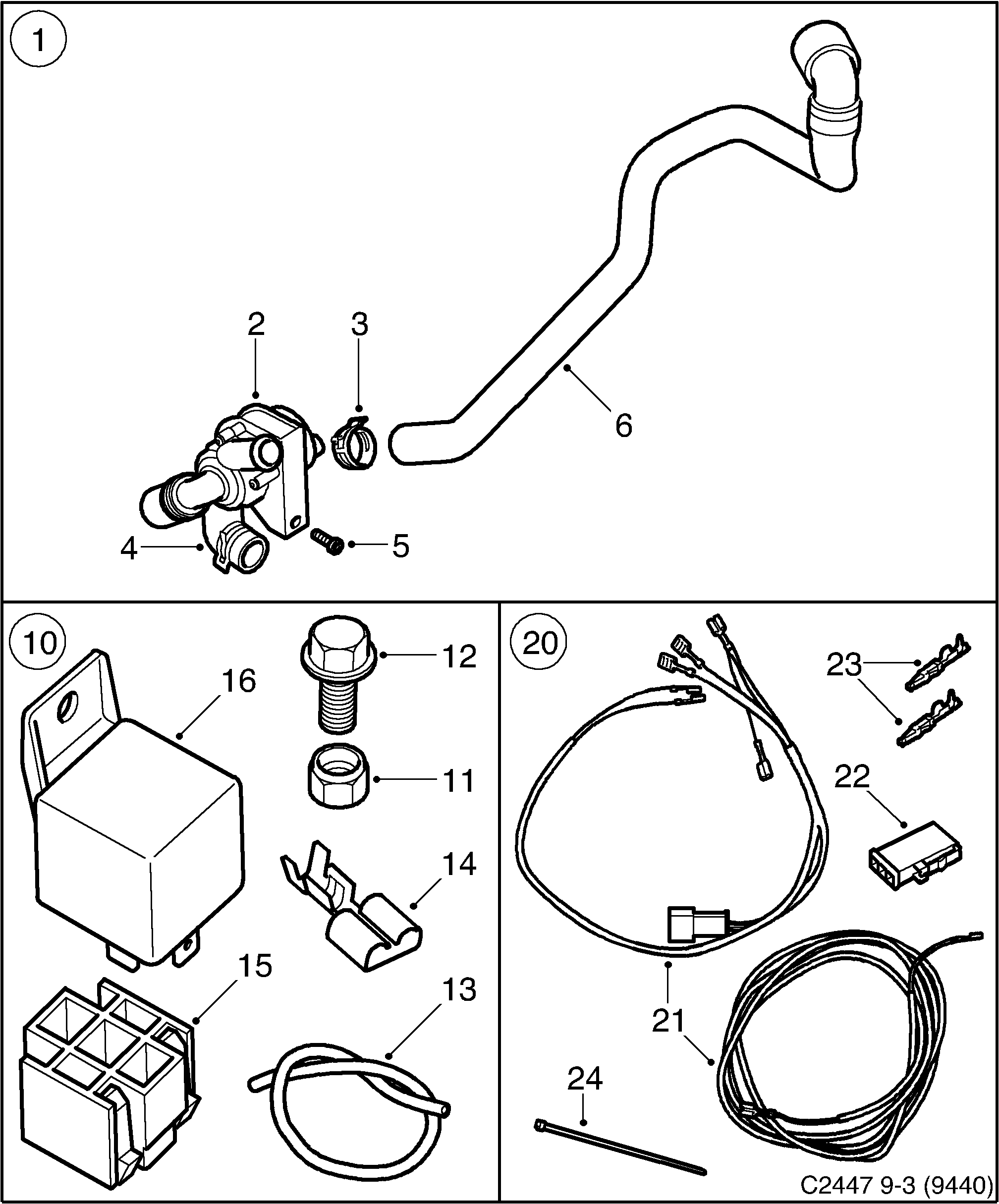

660: Accessories - Accessories body - Climate control - Parking heater
(2003 - 2004 | D223L | 4D) | For 9-3 (9440) (2003)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 787 160 Parking heater LHD • D223L • Must be complemented with... | X | |
| 2 | 24 422 797 Circulation pump D223L | 1 | |
| 3 | 90 572 594 Hose clamp D223L | 1 | |
| 4 | 24 436 240 Radiator hose D223L • Heater/pump | 1 | |
| 5 | 11 097 792 Screw D223L | 1 | |
| 6 | 12 790 038 Radiator hose D223L • Pump/heatexchanger | 1 | |
| 10 | 12 798 934 Relay 2003- • D223L • For cars with manual... | 1 | |
| 11 | 92 153 050 Nut D223L | 1 | |
| 12 | 11 900 380 Screw D223L | 1 | |
| 13 | 12 800 278 Extension cable D223L • L=60mm | 1 | |
| 14 | 91 21 369 Cable terminal D223L | 5 | |
| 15 | 12 799 557 Connector housing D223L | 1 | |
| 16 | 12 796 772 Relay D223L | 1 | |
| 20 | 12 805 414 Supplementary kit, cable harness 2003-2003 • D223L | 1 | |
| 21 | 12 803 725 Cable harness D223L • Not as separate spare... | 1 | |
| 22 | 12 789 411 Connector housing D223L | 1 | |
| 23 | 12 790 413 Cable terminal D223L | 2 | |
| 24 | 92 150 191 11 900 513 Tensioning band D223L | 10 |
