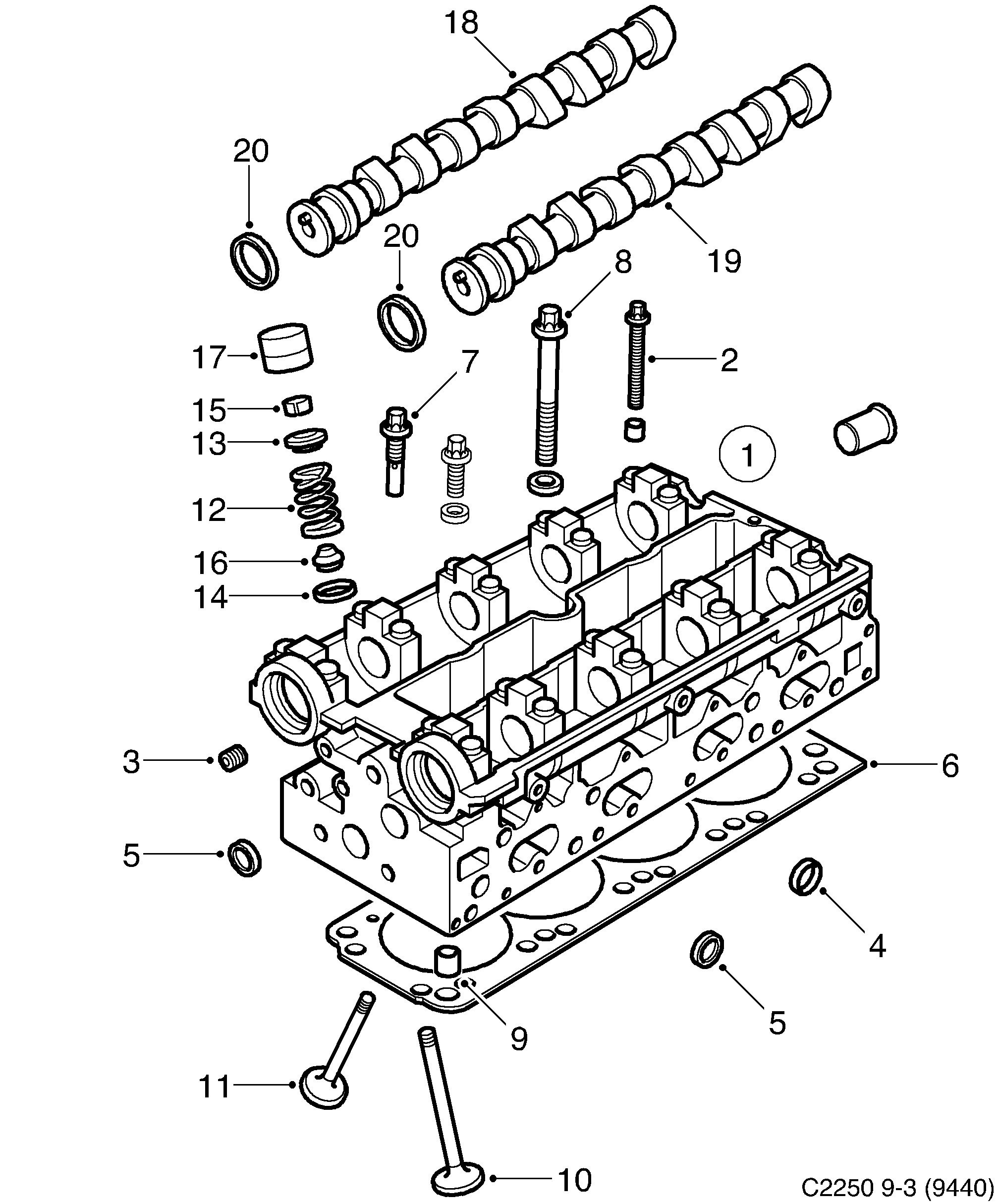

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Short block?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Short block, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Short block suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	90 543 904 Cylinder head PETROL	Cylinder head	PETROL	1
2	11 093 782 Stud PETROL	Stud	PETROL	20
3	11 099 651 Screw plug PETROL	Screw plug	PETROL	4
3	11 095 512 Screw plug PETROL	Screw plug	PETROL	1
4	90 529 032 Sealing washer PETROL • D=18MM	Sealing washer	PETROL D=18MM	1
4	11 052 823 Plug 2004-2007 • PETROL • D=22MM	Plug	2004-2007 PETROL D=22MM	2
5	11 044 142 Plug PETROL	Plug	PETROL	1
5	11 084 312 Plug PETROL • D=28MM	Plug	PETROL D=28MM	X
6	93 179 932 Gasket PETROL	Gasket	PETROL	1
7	90 572 700 Sleeve PETROL	Sleeve	PETROL	1
8	90 412 701 Screw PETROL	Screw	PETROL	10
9	90 351 710 Sleeve PETROL	Sleeve	PETROL	2
10	90 536 095 Inlet valve PETROL	Inlet valve	PETROL	8
10	90 536 430 Inlet valve PETROL • +0.075	Inlet valve	PETROL +0.075	8
10	90 536 431 Inlet valve PETROL • +0.150	Inlet valve	PETROL +0.150	8
11	90 536 164 55 556 689 Exhaust valve 2004-2004 • PETROL	Exhaust valve	2004-2004 PETROL	8
11	90 536 432 Exhaust valve 2004-2004 • PETROL • +0.075	Exhaust valve	2004-2004 PETROL +0.075	8
11	90 536 433 Exhaust valve 2004-2004 • PETROL • +0.150	Exhaust valve	2004-2004 PETROL +0.150	8
12	90 536 234 Valve spring PETROL	Valve spring	PETROL	16
13	90 529 532 Washer PETROL	Washer	PETROL	16
14	90 531 107 Spring washer PETROL	Spring washer	PETROL	16
15	90 529 533 Valve cone PETROL	Valve cone	PETROL	32
16	91 58 057 Seal PETROL	Seal	PETROL	16
17	93 174 076 Tappet 2004-2004 • PETROL	Tappet	2004-2004 PETROL	16
18	91 58 623 Camshaft PETROL • Intake	Camshaft	PETROL Intake	1
19	91 58 629 Camshaft PETROL • Exhaust	Camshaft	PETROL Exhaust	1
20	90 285 291 90 298 390 Sealing ring 2004-2004 • PETROL	Sealing ring	2004-2004 PETROL	2
	Gasket kitKits PETROL	Gasket kitKits PETROL			2

Pos.	Part No.	Description	Usage	Qty
1	90 543 904 Cylinder head PETROL	Cylinder head	PETROL	1
2	11 093 782 Stud PETROL	Stud	PETROL	20
3	11 099 651 Screw plug PETROL	Screw plug	PETROL	4
3	11 095 512 Screw plug PETROL	Screw plug	PETROL	1
4	90 529 032 Sealing washer PETROL • D=18MM	Sealing washer	PETROL D=18MM	1
4	11 052 823 Plug 2004-2007 • PETROL • D=22MM	Plug	2004-2007 PETROL D=22MM	2
5	11 044 142 Plug PETROL	Plug	PETROL	1
5	11 084 312 Plug PETROL • D=28MM	Plug	PETROL D=28MM	X
6	93 179 932 Gasket PETROL	Gasket	PETROL	1
7	90 572 700 Sleeve PETROL	Sleeve	PETROL	1
8	90 412 701 Screw PETROL	Screw	PETROL	10
9	90 351 710 Sleeve PETROL	Sleeve	PETROL	2
10	90 536 095 Inlet valve PETROL	Inlet valve	PETROL	8
10	90 536 430 Inlet valve PETROL • +0.075	Inlet valve	PETROL +0.075	8
10	90 536 431 Inlet valve PETROL • +0.150	Inlet valve	PETROL +0.150	8
11	90 536 164 55 556 689 Exhaust valve 2004-2004 • PETROL	Exhaust valve	2004-2004 PETROL	8
11	90 536 432 Exhaust valve 2004-2004 • PETROL • +0.075	Exhaust valve	2004-2004 PETROL +0.075	8
11	90 536 433 Exhaust valve 2004-2004 • PETROL • +0.150	Exhaust valve	2004-2004 PETROL +0.150	8
12	90 536 234 Valve spring PETROL	Valve spring	PETROL	16
13	90 529 532 Washer PETROL	Washer	PETROL	16
14	90 531 107 Spring washer PETROL	Spring washer	PETROL	16
15	90 529 533 Valve cone PETROL	Valve cone	PETROL	32
16	91 58 057 Seal PETROL	Seal	PETROL	16
17	93 174 076 Tappet 2004-2004 • PETROL	Tappet	2004-2004 PETROL	16
18	91 58 623 Camshaft PETROL • Intake	Camshaft	PETROL Intake	1
19	91 58 629 Camshaft PETROL • Exhaust	Camshaft	PETROL Exhaust	1
20	90 285 291 90 298 390 Sealing ring 2004-2004 • PETROL	Sealing ring	2004-2004 PETROL	2
	Gasket kitKits PETROL	Gasket kitKits PETROL			2
