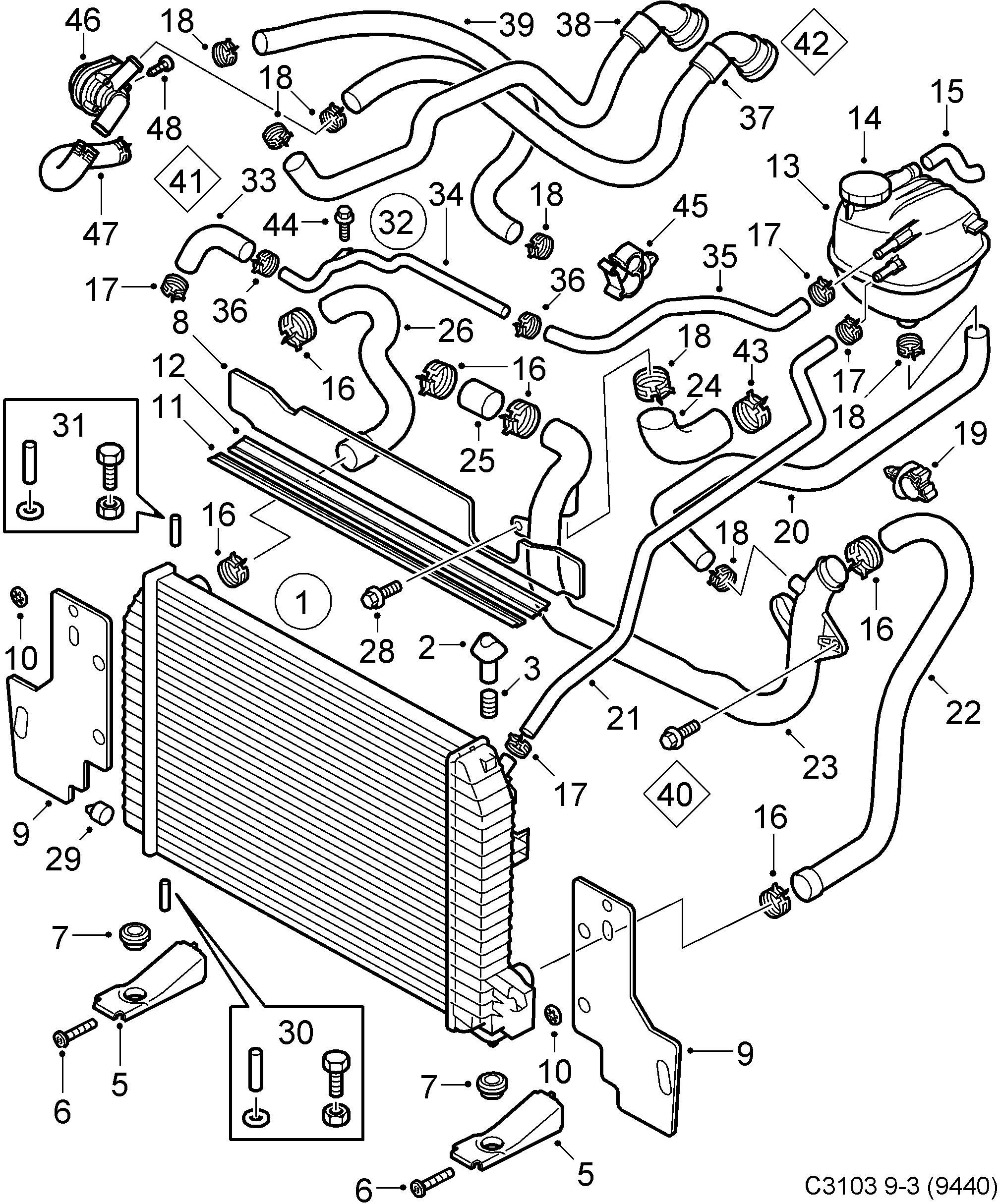

5100: Engine - Cooling system - Radiator - Expansion tank

(2003 - 2004 | D223L) | For 9-3 (9440) (2004)

100%

(N°5050)

Section 5100

(N°5300)

Pos.	Part No.	Description	Usage	Qty
1	24 418 341 Radiator -2004 • D223L	Radiator	-2004 D223L	1
1	24 418 338 Radiator 2004-2004 • D223L	Radiator	2004-2004 D223L	1
1	24 418 342 Radiator D223L	Radiator	D223L	1
2	92 02 609 13 186 475 Rubber bushing D223L	Rubber bushing	D223L	2
3	92 02 606 13 186 475 Spring D223L	Spring	D223L	2
5	12 789 871 Radiator bracket D223L	Radiator bracket	D223L	2
6	11 900 025 Screw D223L	Screw	D223L	2
7	90 091 989 Rubber bushing D223L	Rubber bushing	D223L	2
8	12 791 684 12 765 898 Air shield D223L • Upper	Air shield	D223L Upper	1
9	12 791 685 Air shield D223L • Side.	Air shield	D223L Side.	2
10	92 151 914 Clip D223L	Clip	D223L	4
11	12 791 687 Seal D223L • Front.	Seal	D223L Front.	1
12	12 797 880 Seal -2004 • D223L • Rear.	Seal	-2004 D223L Rear.	1
12	12 794 172 Seal -2004 • D223L • Rear.	Seal	-2004 D223L Rear.	1
13	92 02 200 Expansion tank D223L	Expansion tank	D223L	1
14	92 02 799 Cover D223L	Cover	D223L	1
15	12 791 427 Plastic pipe D223L	Plastic pipe	D223L	1
16	13 136 147 Hose clamp D223L • 43 MM	Hose clamp	D223L 43 MM	6
17	90 572 964 90 530 642 Hose clamp D223L • 14 MM	Hose clamp	D223L 14 MM	4
18	90 572 594 Hose clamp D223L • 27 MM	Hose clamp	D223L 27 MM	7
19	90 571 650 Clip D223L	Clip	D223L	1
20	12 798 283 Radiator hose D223L	Radiator hose	D223L	1
21	12 803 746 Radiator hose D223L • Assy	Radiator hose	D223L Assy	1
	12 788 427 Radiator hose D223L	Radiator hose	D223L	1
	12 803 341 Wear protection D223L	Wear protection	D223L	1
22	12 798 282 Radiator hose D223L • outlet	Radiator hose	D223L outlet	1
23	12 798 281 Plastic pipe D223L	Plastic pipe	D223L	1
24	92 02 148 Radiator hose D223L	Radiator hose	D223L	1
25	92 02 143 Radiator hose D223L	Radiator hose	D223L	1
26	92 02 112 Radiator hose D223L • inlet	Radiator hose	D223L inlet	1
28	11 900 025 Screw D223L • M10X20	Screw	D223L M10X20	1
29	24 411 010 Draining plug D223L	Draining plug	D223L	1
30	92 02 591 Pin D223L • Lower Kit	Pin	D223L Lower Kit	2
	Nut D223L • Not as separate spare...	Nut	D223L Not as separate spare...	2
	Washer D223L • Not as separate spare...	Washer	D223L Not as separate spare...	2
	Pin D223L • Not as separate spare...	Pin	D223L Not as separate spare...	2
	Screw D223L • Not as separate spare...	Screw	D223L Not as separate spare...	2
31	92 02 592 Pin D223L • Upper Kit	Pin	D223L Upper Kit	2
	Nut D223L • Not as separate spare...	Nut	D223L Not as separate spare...	2
	Washer D223L • Not as separate spare...	Washer	D223L Not as separate spare...	2
	Pin D223L • Not as separate spare...	Pin	D223L Not as separate spare...	2
	Screw D223L • Not as separate spare...	Screw	D223L Not as separate spare...	2
32	12 791 914 Radiator hose D223L	Radiator hose	D223L	1
33	12 799 134 Radiator hose D223L	Radiator hose	D223L	1
34	12 799 135 Tube D223L	Tube	D223L	1
35	12 799 136 Radiator hose D223L	Radiator hose	D223L	1
36	90 530 642 Hose clamp D223L • 14 MM	Hose clamp	D223L 14 MM	2
37	12 790 037 Hose -2004, LHD • D223L • For cars with parking...	Hose	-2004, LHD D223L For cars with parking...	1
37	12 790 038 Radiator hose 2004-, LHD • D223L • For cars with parking...	Radiator hose	2004-, LHD D223L For cars with parking...	1
37	12 800 911 Hose LHD • D223L • For cars without parking...	Hose	LHD D223L For cars without parking...	1
37	12 792 591 Hose RHD • D223L	Hose	RHD D223L	1
38	12 790 045 Hose LHD • D223L	Hose	LHD D223L	1
38	12 790 772 Hose RHD • D223L	Hose	RHD D223L	1
39	12 791 916 Hose LHD • D223L	Hose	LHD D223L	1
40	92 150 040 Screw D223L	Screw	D223L	1
41	HeaterCooling system D223L	HeaterCooling system D223L			1
42	Heat exchangerHeating and ventilation D223L	Heat exchangerHeating and ventilation D223L			1
43	90 572 968 Hose clamp D223L	Hose clamp	D223L	1
44	11 900 353 Screw D223L	Screw	D223L	1
45	24 424 961 Clip D223L	Clip	D223L	1
46	24 422 797 Circulation pump 2004- • D223L	Circulation pump	2004- D223L	1
47	24 436 240 Radiator hose 2004- • D223L	Radiator hose	2004- D223L	1
48	11 097 792 Screw 2004- • D223L	Screw	2004- D223L	1
