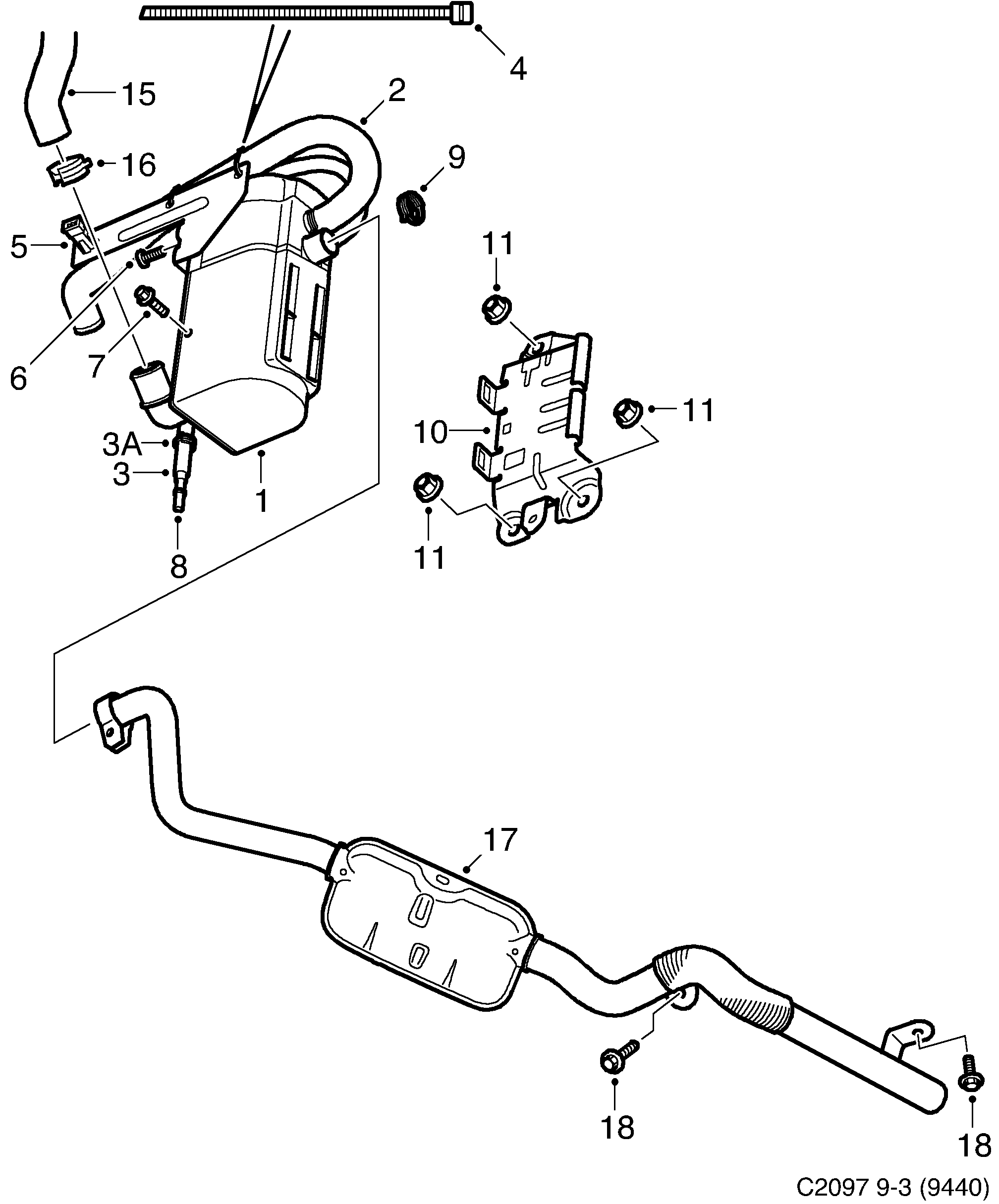

Pos.	Part No.	Description	Usage	Qty
1	12 787 817 12 803 313 Heater unit D223L • Name of the substance...	Heater unit	D223L Name of the substance...	1
2	24 422 523 Air hose D223L	Air hose	D223L	1
3	12 794 004 Fuel hose D223L	Fuel hose	D223L	1
3A	90 264 403 Hose clamp D223L	Hose clamp	D223L	2
4	90 044 312 11 900 512 Tensioning band D223L	Tensioning band	D223L	5
5	24 437 700 Bracket D223L	Bracket	D223L	1
6	11 101 281 Screw D223L	Screw	D223L	1
7	11 102 781 Screw D223L	Screw	D223L	1
8	24 436 636 Snap-on coupling D223L	Snap-on coupling	D223L	1
9	90 280 365 Hose clamp D223L	Hose clamp	D223L	1
10	24 422 536 Bracket D223L	Bracket	D223L	1
11	11 900 452 Nut D223L	Nut	D223L	3
15	HoseCooling system D223L	HoseCooling system D223L
16	Hose clampCooling system D223L	Hose clampCooling system D223L
17	12 787 818 Exhaust pipe D223L	Exhaust pipe	D223L	1
18	92 152 037 Nut D223L	Nut	D223L	2

Pos.	Part No.	Description	Usage	Qty
1	12 787 817 12 803 313 Heater unit D223L • Name of the substance...	Heater unit	D223L Name of the substance...	1
2	24 422 523 Air hose D223L	Air hose	D223L	1
3	12 794 004 Fuel hose D223L	Fuel hose	D223L	1
3A	90 264 403 Hose clamp D223L	Hose clamp	D223L	2
4	90 044 312 11 900 512 Tensioning band D223L	Tensioning band	D223L	5
5	24 437 700 Bracket D223L	Bracket	D223L	1
6	11 101 281 Screw D223L	Screw	D223L	1
7	11 102 781 Screw D223L	Screw	D223L	1
8	24 436 636 Snap-on coupling D223L	Snap-on coupling	D223L	1
9	90 280 365 Hose clamp D223L	Hose clamp	D223L	1
10	24 422 536 Bracket D223L	Bracket	D223L	1
11	11 900 452 Nut D223L	Nut	D223L	3
15	HoseCooling system D223L	HoseCooling system D223L
16	Hose clampCooling system D223L	Hose clampCooling system D223L
17	12 787 818 Exhaust pipe D223L	Exhaust pipe	D223L	1
18	92 152 037 Nut D223L	Nut	D223L	2

5300: Engine - Cooling system - Auxiliary heater
