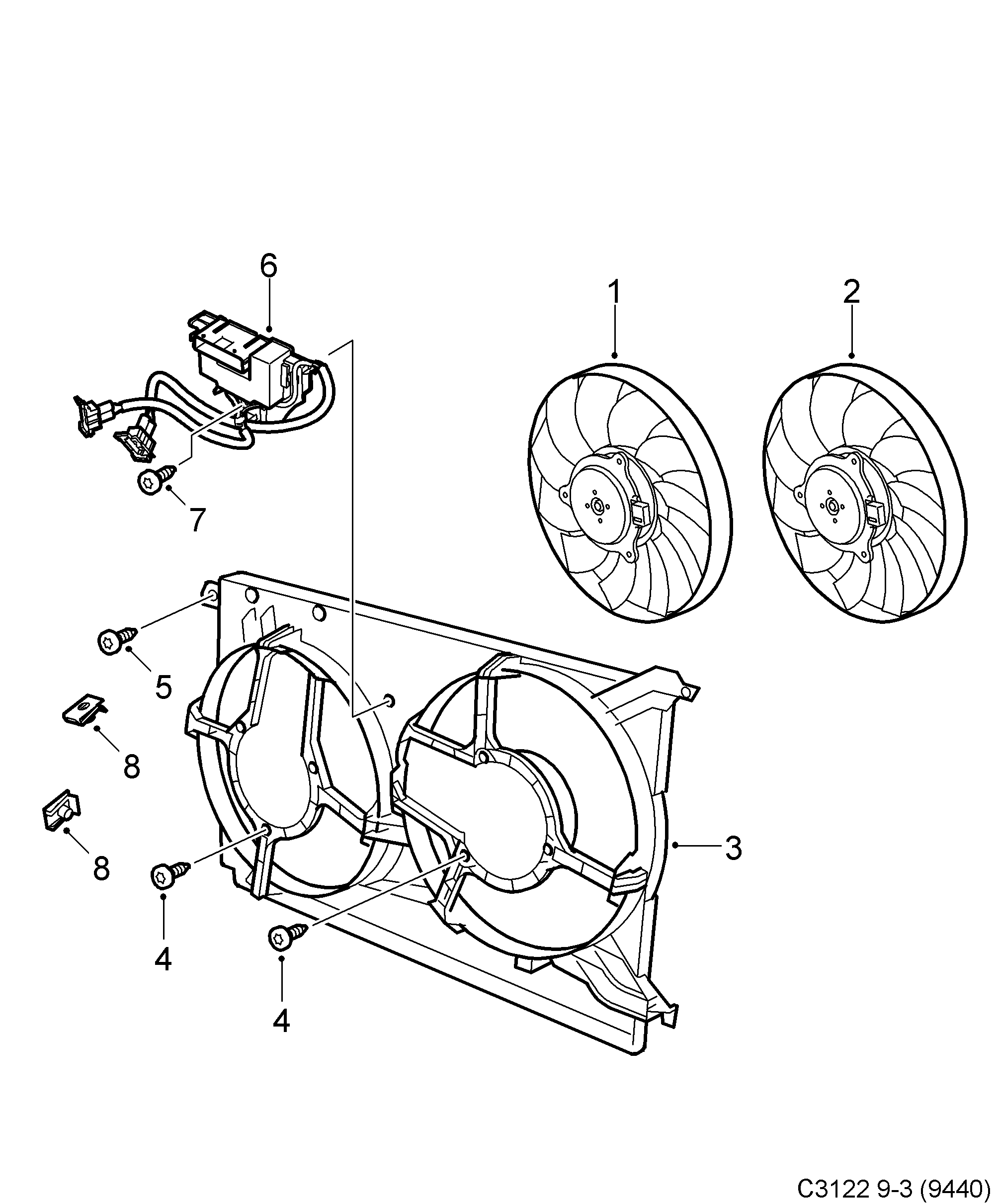

5400: Engine - Cooling system - Fan motor - Twin fan
(2003 - 2012 | PETROL) | For 9-3 (9440) (2004)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 801 549 Fan motor PETROL • LH | 1 | |
| 2 | 12 801 550 Fan motor PETROL • RH | 1 | |
| 3 | 24 410 993 Fan shroud PETROL | 1 | |
| 4 | 92 02 828 Screw PETROL | 6 | |
| 5 | 92 02 831 Screw PETROL | 6 | |
| 6 | 24 418 357 Relay box PETROL | 1 | |
| 7 | 92 02 831 Screw PETROL | 2 | |
| 8 | 90 495 359 12 773 488 Clip PETROL | X | |
| 8 | 12 773 488 Clip PETROL | X |
