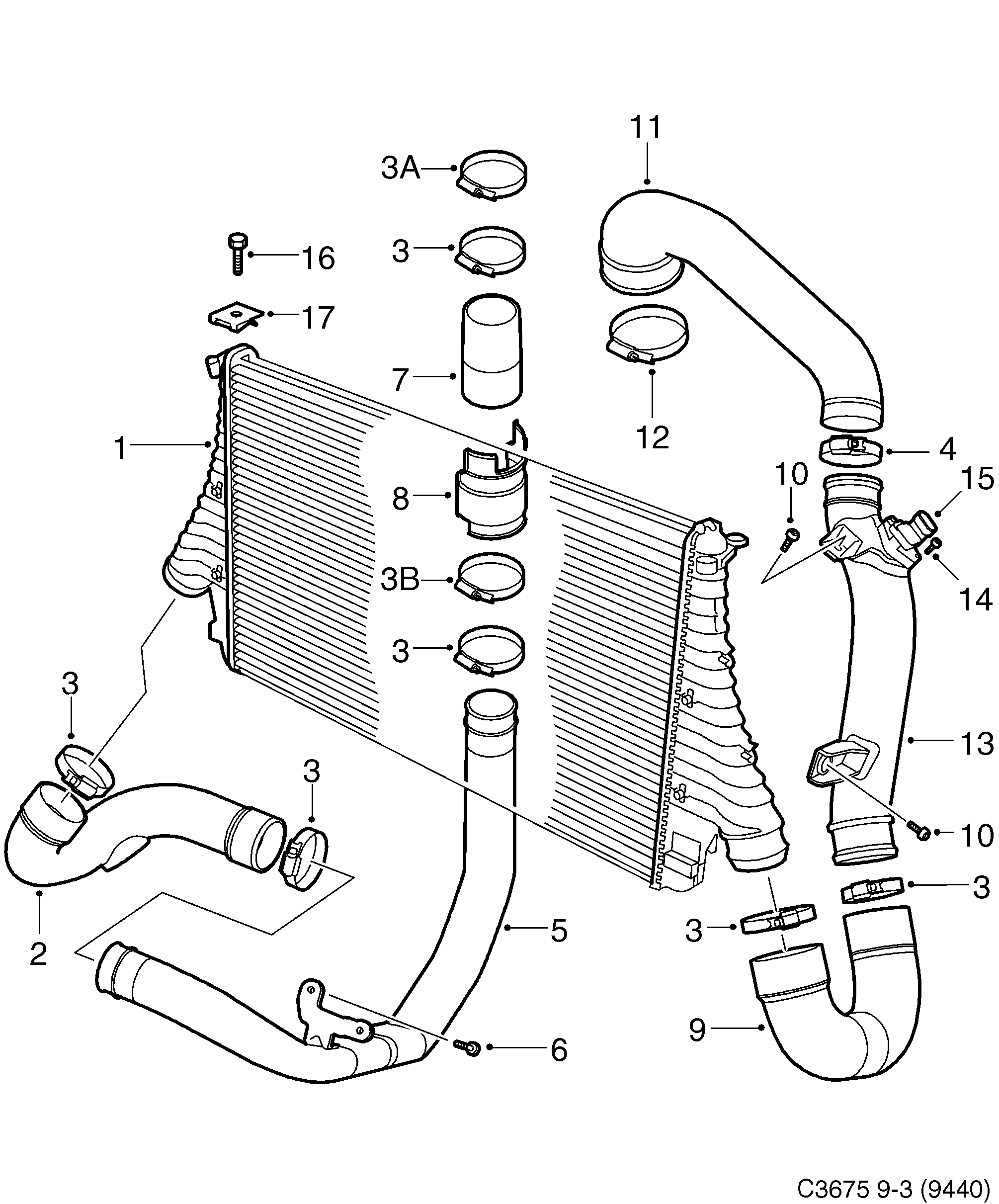

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Cooling system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Cooling system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Cooling system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	12 788 019 Charge air cooler PETROL	Charge air cooler	PETROL	1
2	12 787 693 Charge air hose PETROL	Charge air hose	PETROL	1
2	12 786 560 Charge air hose PETROL	Charge air hose	PETROL	1
3	92 150 222 92 153 079 Hose clamp 2003-2006 • PETROL	Hose clamp	2003-2006 PETROL	6
4	92 150 221 92 153 077 Hose clamp 2003-2006 • PETROL	Hose clamp	2003-2006 PETROL	1
5	12 786 559 Charge air pipe PETROL	Charge air pipe	PETROL	1
6	11 900 364 Screw PETROL	Screw	PETROL	2
7	12 786 558 Charge air hose PETROL	Charge air hose	PETROL	1
8	12 791 690 Heat shield PETROL	Heat shield	PETROL	1
9	12 787 694 Charge air hose PETROL	Charge air hose	PETROL	1
9	12 786 813 Charge air hose PETROL	Charge air hose	PETROL	1
10	11 900 354 Screw 2003-2005 • PETROL	Screw	2003-2005 PETROL	2
11	12 786 816 Charge air hose PETROL	Charge air hose	PETROL	1
12	92 150 223 92 153 080 Hose clamp 2003-2006 • PETROL	Hose clamp	2003-2006 PETROL	1
13	12 786 819 Charge air pipe PETROL	Charge air pipe	PETROL	1
14	11 900 492 Screw PETROL	Screw	PETROL	2
15	12 788 793 55 563 267 Sensor 2003-2007 • PETROL • Pressure sensor Temperature sensor	Sensor	2003-2007 PETROL Pressure sensor Temperature sensor	1
16	92 02 831 Screw PETROL	Screw	PETROL	2
17	90 495 359 12 773 488 Clip 2003-2011 • PETROL	Clip	2003-2011 PETROL	2

Pos.	Part No.	Description	Usage	Qty
1	12 788 019 Charge air cooler PETROL	Charge air cooler	PETROL	1
2	12 787 693 Charge air hose PETROL	Charge air hose	PETROL	1
2	12 786 560 Charge air hose PETROL	Charge air hose	PETROL	1
3	92 150 222 92 153 079 Hose clamp 2003-2006 • PETROL	Hose clamp	2003-2006 PETROL	6
4	92 150 221 92 153 077 Hose clamp 2003-2006 • PETROL	Hose clamp	2003-2006 PETROL	1
5	12 786 559 Charge air pipe PETROL	Charge air pipe	PETROL	1
6	11 900 364 Screw PETROL	Screw	PETROL	2
7	12 786 558 Charge air hose PETROL	Charge air hose	PETROL	1
8	12 791 690 Heat shield PETROL	Heat shield	PETROL	1
9	12 787 694 Charge air hose PETROL	Charge air hose	PETROL	1
9	12 786 813 Charge air hose PETROL	Charge air hose	PETROL	1
10	11 900 354 Screw 2003-2005 • PETROL	Screw	2003-2005 PETROL	2
11	12 786 816 Charge air hose PETROL	Charge air hose	PETROL	1
12	92 150 223 92 153 080 Hose clamp 2003-2006 • PETROL	Hose clamp	2003-2006 PETROL	1
13	12 786 819 Charge air pipe PETROL	Charge air pipe	PETROL	1
14	11 900 492 Screw PETROL	Screw	PETROL	2
15	12 788 793 55 563 267 Sensor 2003-2007 • PETROL • Pressure sensor Temperature sensor	Sensor	2003-2007 PETROL Pressure sensor Temperature sensor	1
16	92 02 831 Screw PETROL	Screw	PETROL	2
17	90 495 359 12 773 488 Clip 2003-2011 • PETROL	Clip	2003-2011 PETROL	2

5500: Engine - Cooling system - Charge air cooler
