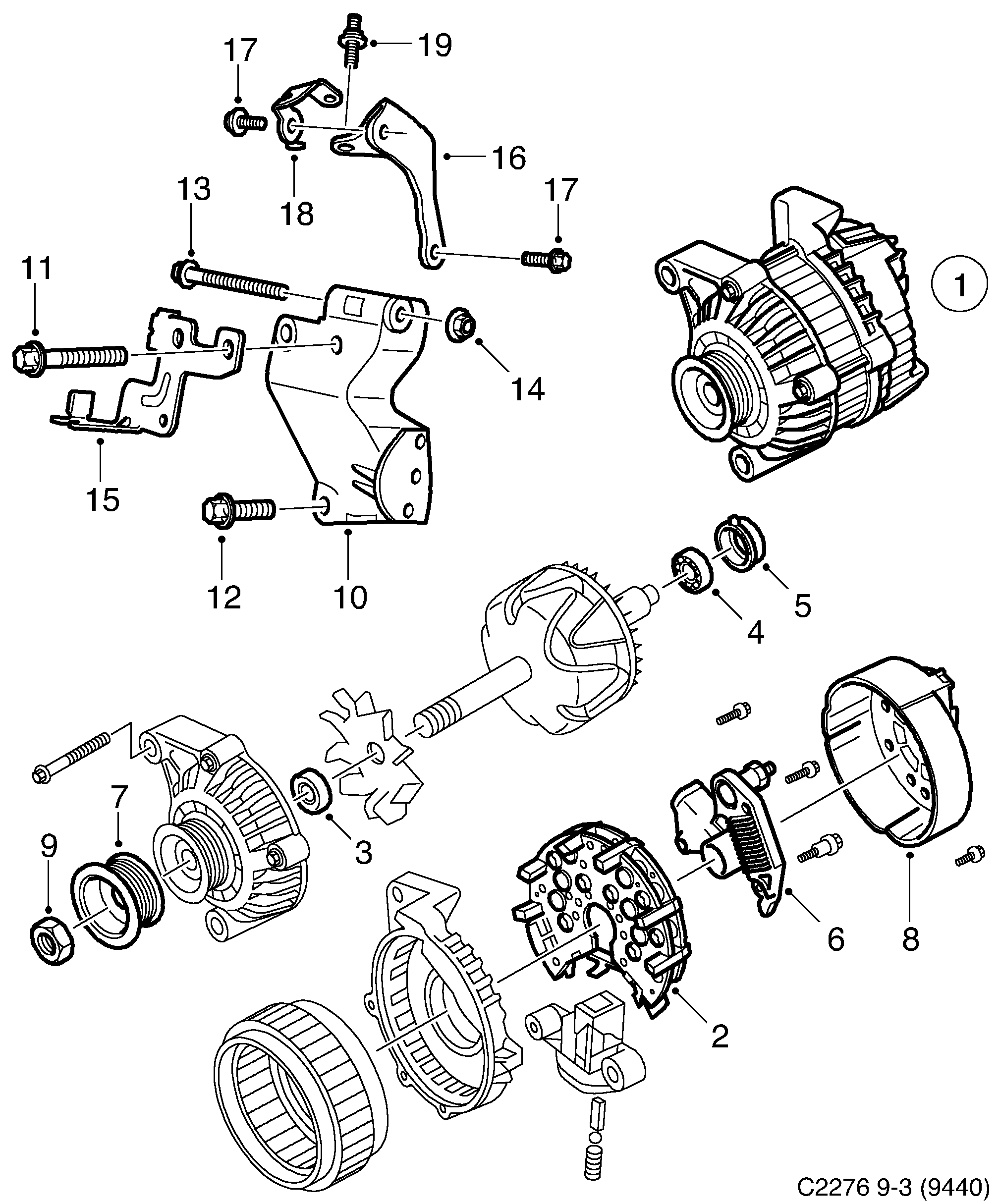

225: Electrical, general - Generator
(2004 - 2008 | PETROL) | For 9-3 (9440) (2004)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 177 834 Generator PETROL | 1 | |
| 2 | 93 174 475 Rectifier PETROL | 1 | |
| 3 | 91 17 938 Bearing PETROL • Front. | 1 | |
| 4 | 91 17 940 Bearing PETROL • Rear. | 1 | |
| 5 | 91 17 939 Bearing carrier PETROL | 1 | |
| 6 | 93 176 380 Voltage regulator PETROL | 1 | |
| 7 | 93 175 990 Pulley PETROL | 1 | |
| 8 | 91 18 144 Protection PETROL | 1 | |
| 9 | 93 175 991 Nut PETROL | 1 | |
| 10 | 90 571 112 Bracket PETROL | 1 | |
| 11 | 11 097 751 Screw PETROL | 2 | |
| 12 | 11 097 741 Screw PETROL | 1 | |
| 13 | 11 094 061 Screw PETROL | 1 | |
| 14 | 11 900 441 Nut PETROL | 1 | |
| 15 | 55 353 171 Bracket PETROL | 1 | |
| 16 | 91 58 187 Bracket PETROL | 1 | |
| 17 | 11 096 811 Screw PETROL | 2 | |
| 18 | 91 15 400 Bracket PETROL | 1 | |
| 19 | 89 56 812 Screw PETROL | 1 |
