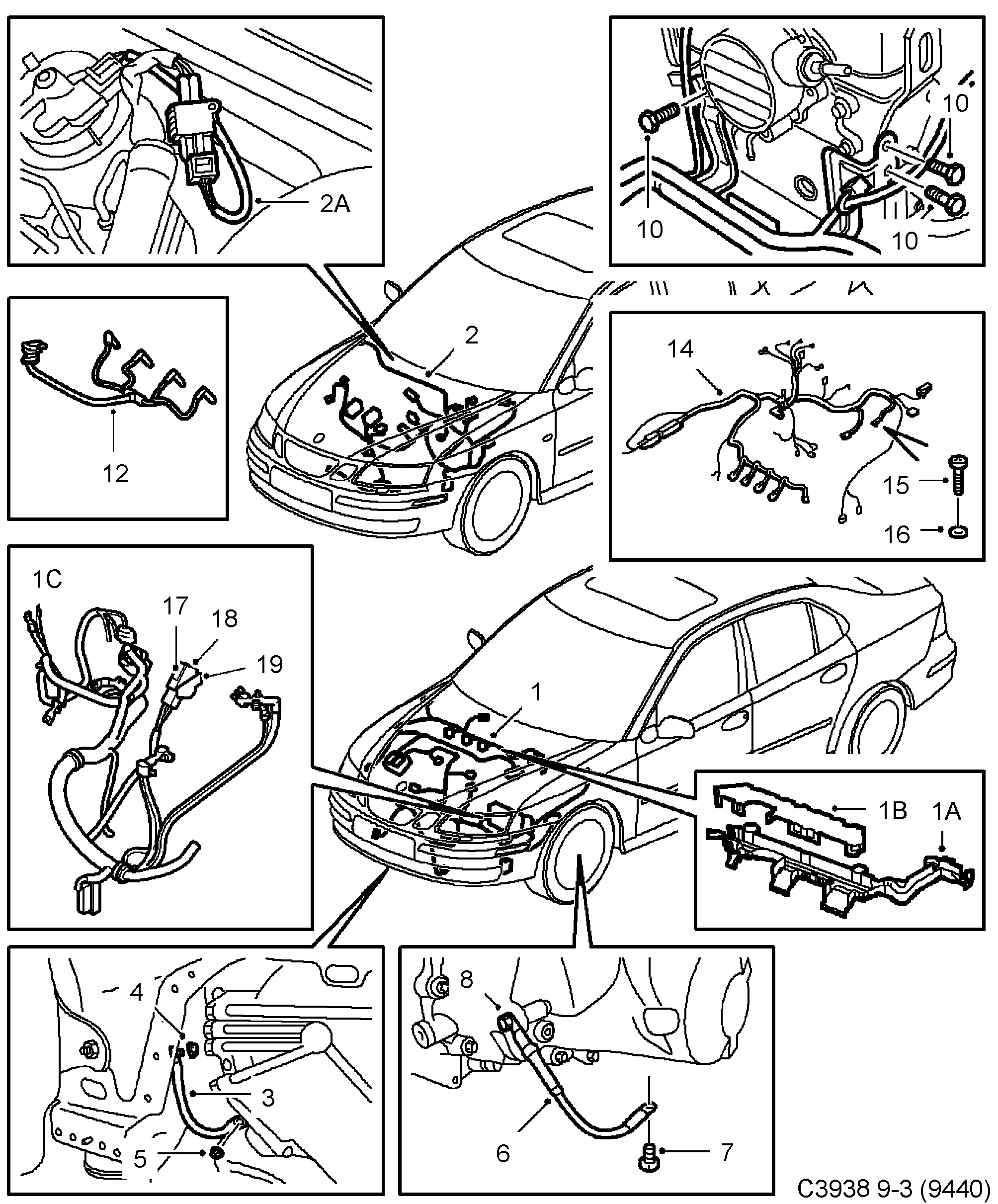

3160: Electrical, general - Wiring and fuses - Engine, gearbox
(2004 - 2005 | 4D, CV) | For 9-3 (9440) (2004)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 804 569 Cable harness 2004-2004 • B207 • Cold climate. engine | 1 | |
| 1 | 12 804 568 12 805 331 Wiring harness, engine 2004-2004 • B207 • Hot climate. Tropical climate.... | 1 | |
| 1 | 12 805 330 Cable harness 2004-2004 • B207 • Cold climate. engine | 1 | |
| 1 | 12 805 331 Cable harness 2004-2004 • B207 • Hot climate. Tropical climate.... | 1 | |
| 1 | 55 352 644 Wiring harness, engine Z18XE • engine fuel injection system | 1 | |
| 1C | 12 803 531 Cable harness 2004-2004 • Z18XE • Name of the substance... | 1 | |
| 2 | 12 802 726 Cable harness 2004-2004 • D223L • engine | 1 | |
| 2 | 12 804 422 Cable harness 2004-2004 • D223L • engine | 1 | |
| 2A | 12 799 634 Cable harness 2004-2004, RHD • D223L • fuel filter | 1 | |
| 3 | 12 785 584 Battery cable -2004 • 5-SPEED | 1 | |
| 4 | 11 900 451 Nut -2004 | 1 | |
| 5 | 92 150 134 11 900 452 Hexagon nut -2004 | 1 | |
| 6 | 12 785 584 Battery cable -2004 • 6-SPEED | 1 | |
| 7 | 92 151 008 11 094 891 Hexagon screw -2004 | 1 | |
| 8 | 11 900 172 Hexagon screw -2004 | 1 | |
| 10 | 11 900 355 Screw D223L, Z19DT, Z19DTH | 3 | |
| 12 | 93 179 524 93 184 904 Cable harness Z19DT • 8 VALVE | 1 | |
| 12 | 93 184 904 Cable harness Z19DT | 1 | |
| 14 | 93 184 679 Cable harness Z19DTH • (93179366) 16 VALVE | 1 | |
24 456 174 Fuse holder | 1 | ||
| 15 | 93 177 360 93 183 425 Screw Z19DT • 8 VALVE | 1 | |
| 16 | 93 177 318 93 183 425 Washer Z19DT • 8 VALVE | 1 | |
| 17 | 55 49 332 Fuse Z18XE • engine | 1 | |
| 18 | 12 804 902 Fuse holder Z18XE • engine | 1 | |
| 19 | 12 803 552 Bracket Z18XE • engine | 1 |
