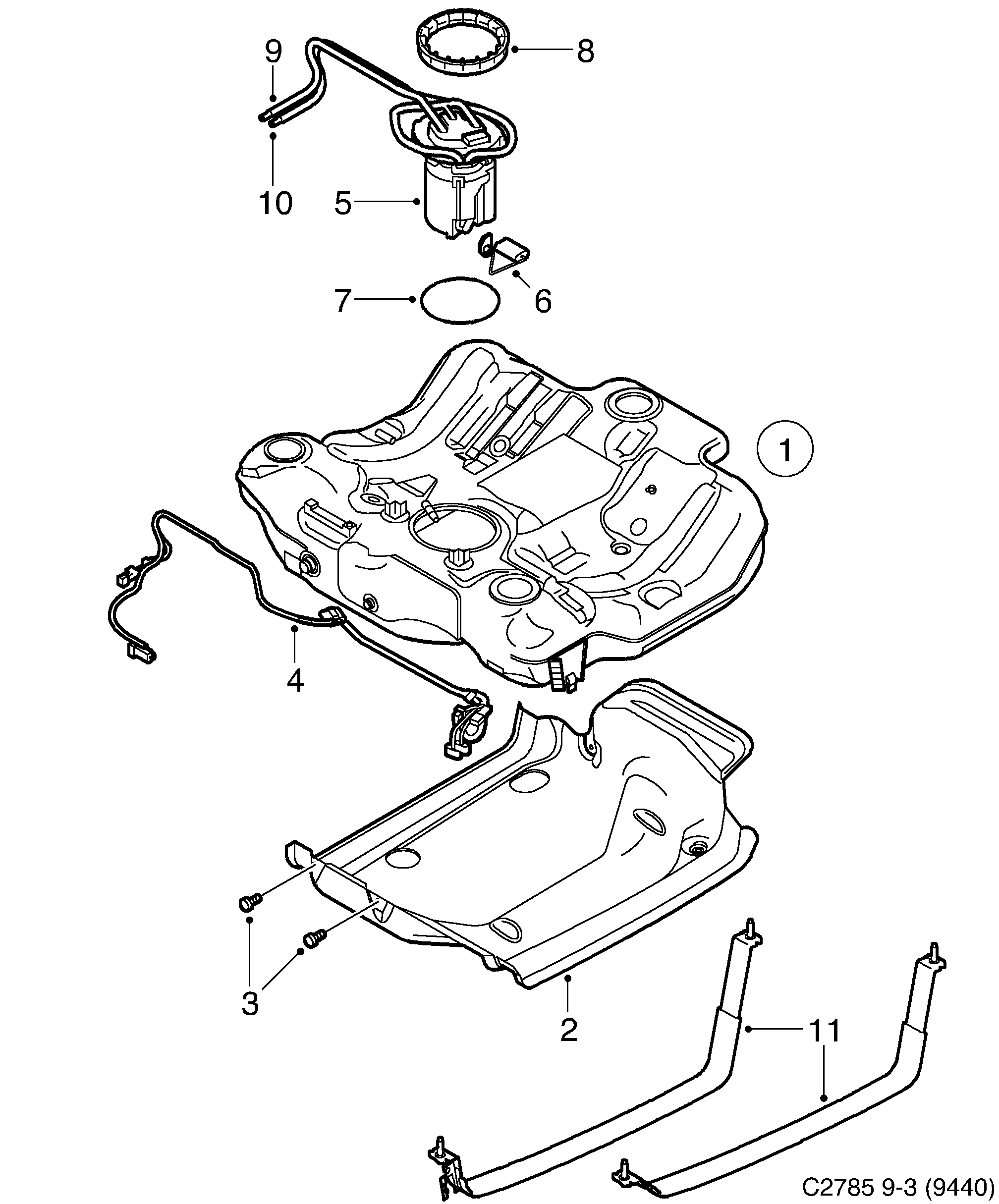

3175: Engine - Fuel system - Fuel tank
(2005 | Z19DT, Z19DTH) | For 9-3 (9440) (2005)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 803 490 Tank Z19DT, Z19DTH • For cars without engine... | 1 | |
| 1 | 12 803 489 Tank Z19DT, Z19DTH | 1 | |
| 2 | 24 401 337 Heat shield Z19DT, Z19DTH | 1 | |
| 3 | 91 28 429 Screw Z19DT, Z19DTH | 4 | |
| 4 | 12 803 491 Cable harness Z19DT, Z19DTH | 1 | |
| 5 | 93 184 862 93 190 713 Fuel pump Z19DT, Z19DTH | 1 | |
| 6 | 13 178 568 Fuel gauge sensor Z19DT, Z19DTH | 1 | |
| 7 | 24 439 526 Seal Z19DT, Z19DTH | 1 | |
| 8 | 90 572 096 Lock ring Z19DT, Z19DTH | 1 | |
| 9 | 13 182 628 Return line Z19DT, Z19DTH | 1 | |
| 10 | 13 140 609 Fuel pipe Z19DT, Z19DTH | 1 | |
| 11 | 12 791 363 12 841 857 Tensioning band Z19DT, Z19DTH • LH | 1 | |
| 11 | 12 790 329 12 841 858 Tensioning band Z19DT, Z19DTH • RH | 1 |
