Question 1

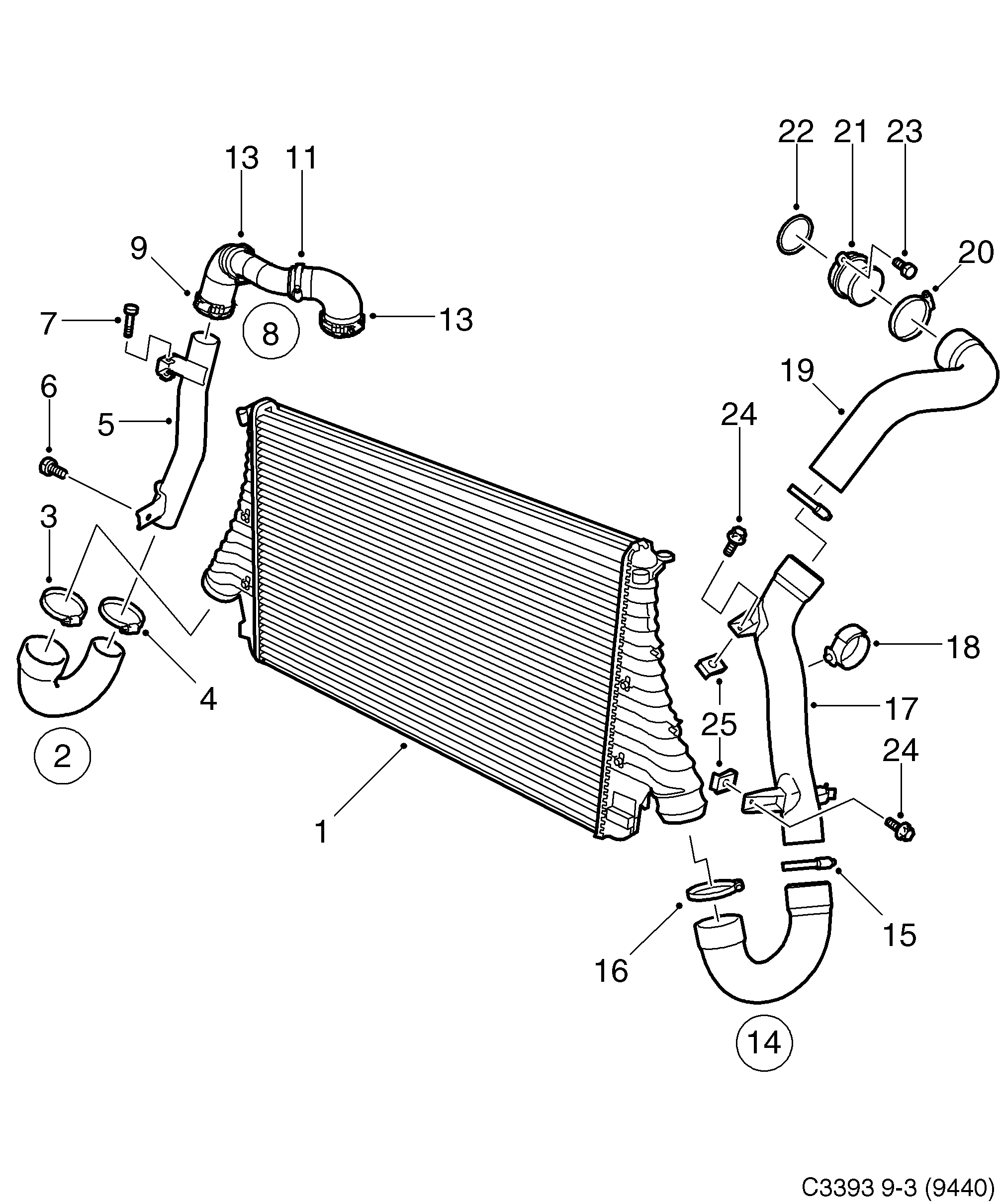

Where to find the exploded diagram for Cooling system on my Saab 9-3 (9440) 2005?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Cooling system on Saab 9-3 (9440) 2005. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Cooling system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Cooling system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Cooling system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Cooling system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	12 804 713 12 765 753 Charge air cooler -2005 • Z19DT, Z19DTH	Charge air cooler	-2005 Z19DT, Z19DTH	1
1	12 765 753 Charge air cooler 2005- • Z19DT, Z19DTH	Charge air cooler	2005- Z19DT, Z19DTH	1
2	55 350 918 Air duct Z19DT, Z19DTH	Air duct	Z19DT, Z19DTH	1
3	24 468 103 Hose clamp Z19DT, Z19DTH • 61-72 MM	Hose clamp	Z19DT, Z19DTH 61-72 MM	1
4	24 442 227 Hose clamp Z19DT, Z19DTH • 43-53 MM	Hose clamp	Z19DT, Z19DTH 43-53 MM	1
5	55 350 920 Charge air pipe Z19DT, Z19DTH	Charge air pipe	Z19DT, Z19DTH	1
6	11 096 971 Screw 2005-2005 • Z19DT, Z19DTH	Screw	2005-2005 Z19DT, Z19DTH	1
7	11 093 953 Screw 2004- • Z19DT, Z19DTH	Screw	2004- Z19DT, Z19DTH	1
8	55 354 826 13 289 474 Air duct Z19DT, Z19DTH	Air duct	Z19DT, Z19DTH	1
9	24 442 225 Hose clamp Z19DT, Z19DTH • 54-64 MM	Hose clamp	Z19DT, Z19DTH 54-64 MM	1
11	24 442 227 Hose clamp Z19DT, Z19DTH • 43-53 MM	Hose clamp	Z19DT, Z19DTH 43-53 MM	1
13	24 442 227 Hose clamp Z19DT, Z19DTH • 43-53 MM	Hose clamp	Z19DT, Z19DTH 43-53 MM	2
14	55 350 922 13 289 462 Air duct 2005-2007 • Z19DT	Air duct	2005-2007 Z19DT	1
14	55 350 914 13 289 461 Air duct 2005-2007 • Z19DTH	Air duct	2005-2007 Z19DTH	1
15	24 468 103 Hose clamp Z19DT, Z19DTH • 61-72 MM	Hose clamp	Z19DT, Z19DTH 61-72 MM	1
16	24 468 103 Hose clamp Z19DT, Z19DTH • 61-72 MM	Hose clamp	Z19DT, Z19DTH 61-72 MM	2
17	55 350 916 Charge air pipe Z19DT, Z19DTH	Charge air pipe	Z19DT, Z19DTH	1
18	92 02 590 Clip Z19DT, Z19DTH	Clip	Z19DT, Z19DTH	1
19	55 350 923 Charge air hose Z19DT	Charge air hose	Z19DT	1
19	55 350 915 Charge air hose Z19DTH	Charge air hose	Z19DTH	1
20	24 468 103 Hose clamp Z19DT, Z19DTH • 61-72 MM	Hose clamp	Z19DT, Z19DTH 61-72 MM	1
21	55 351 945 Gasket Z19DT, Z19DTH	Gasket	Z19DT, Z19DTH	1
22	12 780 867 Connector Z19DT, Z19DTH	Connector	Z19DT, Z19DTH	1
23	11 096 971 Screw 2005-2005 • Z19DT, Z19DTH	Screw	2005-2005 Z19DT, Z19DTH	2
24	11 093 961 Screw Z19DT, Z19DTH	Screw	Z19DT, Z19DTH	2
25	12 773 488 Clip Z19DT, Z19DTH	Clip	Z19DT, Z19DTH	2

Pos.	Part No.	Description	Usage	Qty
1	12 804 713 12 765 753 Charge air cooler -2005 • Z19DT, Z19DTH	Charge air cooler	-2005 Z19DT, Z19DTH	1
1	12 765 753 Charge air cooler 2005- • Z19DT, Z19DTH	Charge air cooler	2005- Z19DT, Z19DTH	1
2	55 350 918 Air duct Z19DT, Z19DTH	Air duct	Z19DT, Z19DTH	1
3	24 468 103 Hose clamp Z19DT, Z19DTH • 61-72 MM	Hose clamp	Z19DT, Z19DTH 61-72 MM	1
4	24 442 227 Hose clamp Z19DT, Z19DTH • 43-53 MM	Hose clamp	Z19DT, Z19DTH 43-53 MM	1
5	55 350 920 Charge air pipe Z19DT, Z19DTH	Charge air pipe	Z19DT, Z19DTH	1
6	11 096 971 Screw 2005-2005 • Z19DT, Z19DTH	Screw	2005-2005 Z19DT, Z19DTH	1
7	11 093 953 Screw 2004- • Z19DT, Z19DTH	Screw	2004- Z19DT, Z19DTH	1
8	55 354 826 13 289 474 Air duct Z19DT, Z19DTH	Air duct	Z19DT, Z19DTH	1
9	24 442 225 Hose clamp Z19DT, Z19DTH • 54-64 MM	Hose clamp	Z19DT, Z19DTH 54-64 MM	1
11	24 442 227 Hose clamp Z19DT, Z19DTH • 43-53 MM	Hose clamp	Z19DT, Z19DTH 43-53 MM	1
13	24 442 227 Hose clamp Z19DT, Z19DTH • 43-53 MM	Hose clamp	Z19DT, Z19DTH 43-53 MM	2
14	55 350 922 13 289 462 Air duct 2005-2007 • Z19DT	Air duct	2005-2007 Z19DT	1
14	55 350 914 13 289 461 Air duct 2005-2007 • Z19DTH	Air duct	2005-2007 Z19DTH	1
15	24 468 103 Hose clamp Z19DT, Z19DTH • 61-72 MM	Hose clamp	Z19DT, Z19DTH 61-72 MM	1
16	24 468 103 Hose clamp Z19DT, Z19DTH • 61-72 MM	Hose clamp	Z19DT, Z19DTH 61-72 MM	2
17	55 350 916 Charge air pipe Z19DT, Z19DTH	Charge air pipe	Z19DT, Z19DTH	1
18	92 02 590 Clip Z19DT, Z19DTH	Clip	Z19DT, Z19DTH	1
19	55 350 923 Charge air hose Z19DT	Charge air hose	Z19DT	1
19	55 350 915 Charge air hose Z19DTH	Charge air hose	Z19DTH	1
20	24 468 103 Hose clamp Z19DT, Z19DTH • 61-72 MM	Hose clamp	Z19DT, Z19DTH 61-72 MM	1
21	55 351 945 Gasket Z19DT, Z19DTH	Gasket	Z19DT, Z19DTH	1
22	12 780 867 Connector Z19DT, Z19DTH	Connector	Z19DT, Z19DTH	1
23	11 096 971 Screw 2005-2005 • Z19DT, Z19DTH	Screw	2005-2005 Z19DT, Z19DTH	2
24	11 093 961 Screw Z19DT, Z19DTH	Screw	Z19DT, Z19DTH	2
25	12 773 488 Clip Z19DT, Z19DTH	Clip	Z19DT, Z19DTH	2

5575: Engine - Cooling system - Charge air cooler
