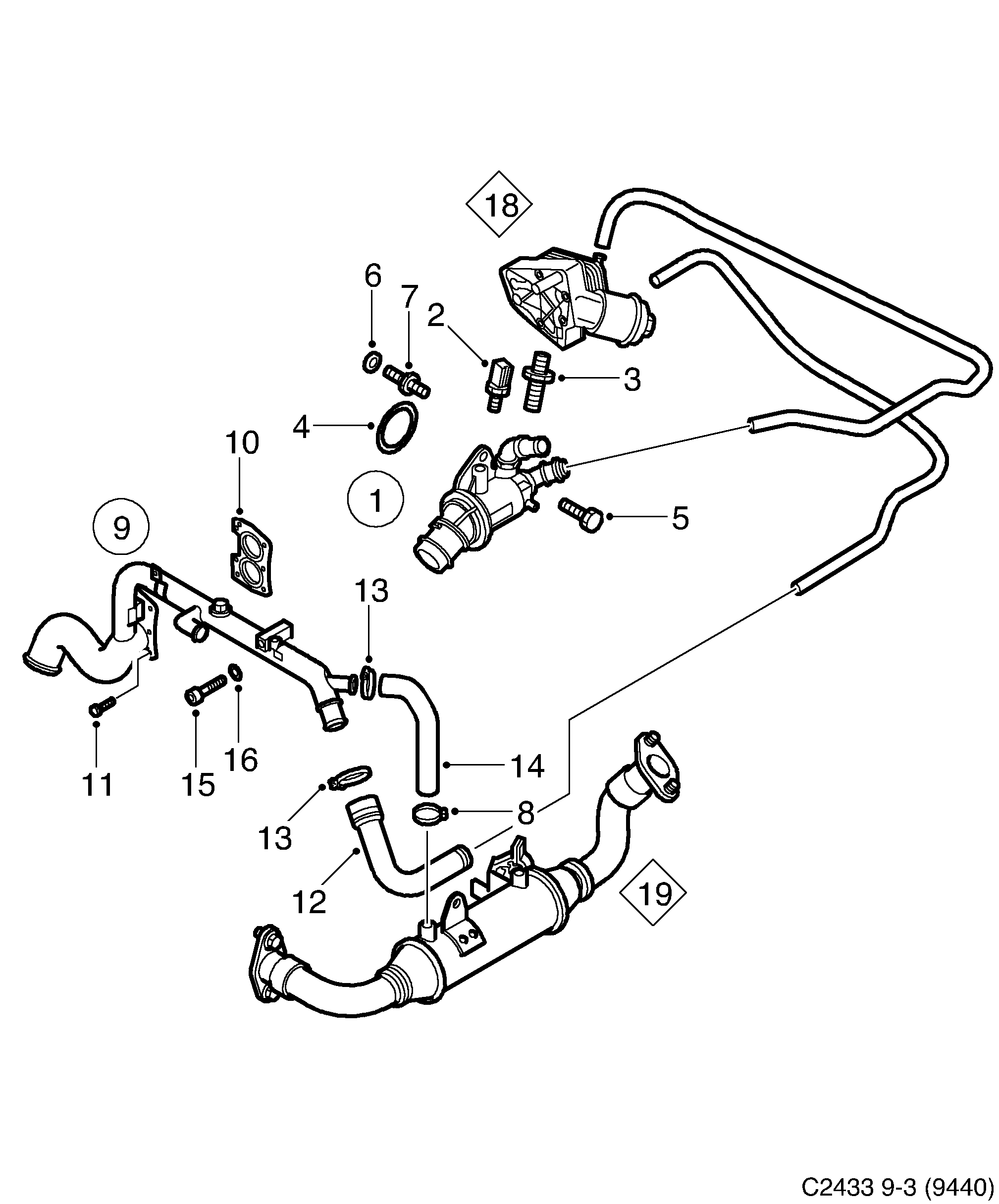

5885: Engine - Cooling system - Thermostat, etc
(2005 - 2010 | Z19DT) | For 9-3 (9440) (2005)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 55 202 510 55 203 388 Thermostat housing 2005-2005 • Z19DT | 1 | |
| 2 | 93 177 344 55 193 203 Engine coolant temperature sensor 2005-2007 • Z19DT | 1 | |
| 3 | 93 179 141 Stud Z19DT • M6X12 | 1 | |
| 4 | 93 180 492 Gasket 2005-2005 • Z19DT | 1 | |
| 5 | 93 178 829 Screw Z19DT • M8X25 | 1 | |
| 6 | 93 178 879 Washer Z19DT | 1 | |
| 7 | 93 179 140 Screw Z19DT | 1 | |
| 8 | 93 180 491 Hose clamp 2005-2005 • Z19DT | 2 | |
| 9 | 93 184 657 93 194 989 Tube 2005-2005 • Z19DT | 1 | |
| 10 | 93 180 484 Gasket 2005-2006 • Z19DT | 1 | |
| 11 | 93 178 832 Screw 2005-2008 • Z19DT • M6X18 | 4 | |
| 12 | 93 180 493 Radiator hose Z19DT | 1 | |
| 13 | 93 180 494 93 184 659 Hose clamp 2005-2005 • Z19DT | 1 | |
| 14 | 93 180 495 Radiator hose Z19DT | 1 | |
| 15 | 93 181 875 Screw Z19DT • M6X55 | 1 | |
| 16 | 93 181 620 Washer Z19DT • 6X11 | 1 | |
| 18 | Coolant pumpCooling system Z19DT | 1 | |
| 19 | Exhaust gas recirculationIntake and exhaust system Z19DT | 1 |
