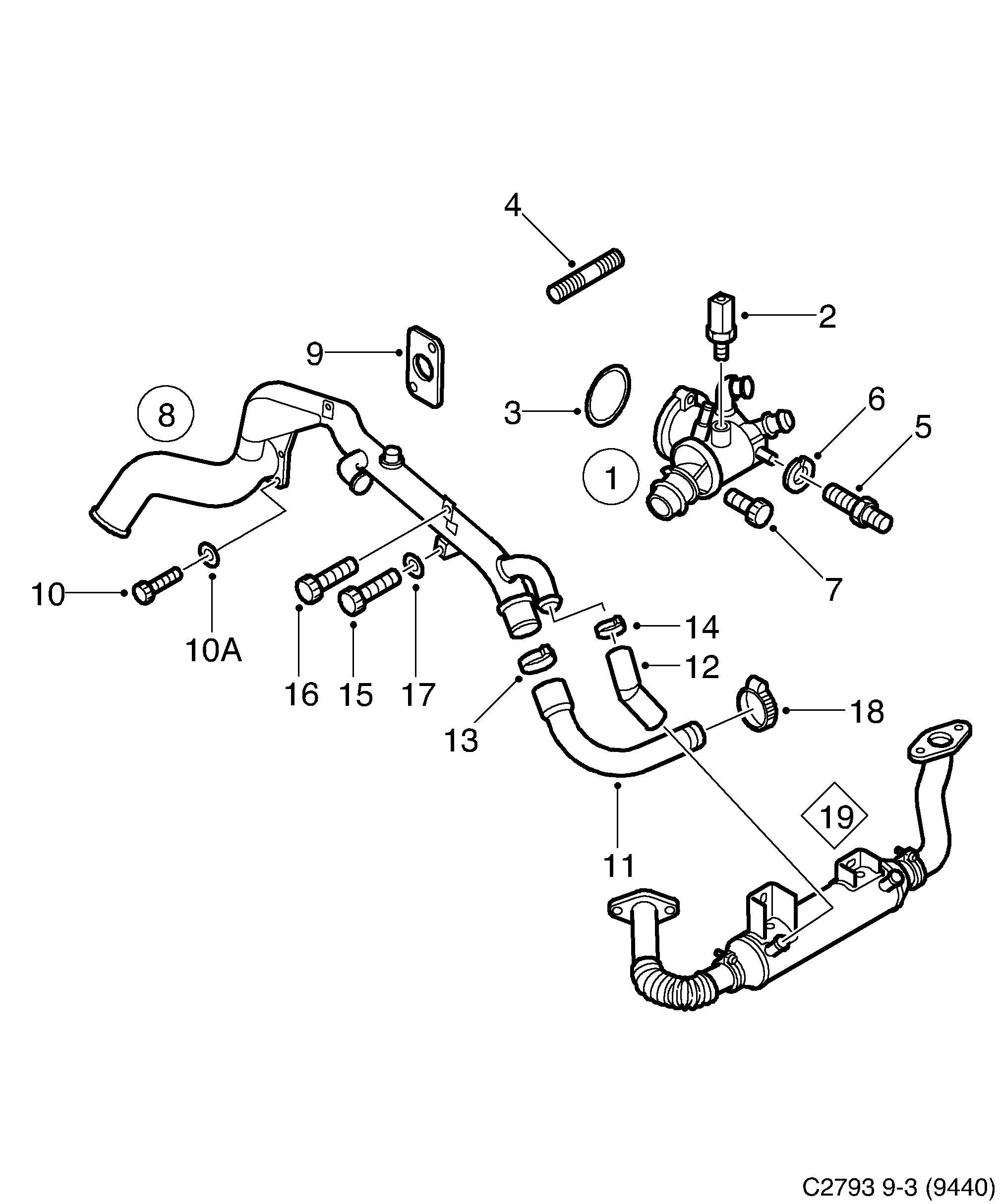

5890: Engine - Cooling system - Thermostat, etc
(2005 - 2010 | Z19DTH) | For 9-3 (9440) (2005)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 55 202 510 55 203 388 Thermostat housing 2005-2005 • Z19DTH | 1 | |
| 2 | 93 177 344 55 193 203 Engine coolant temperature sensor 2005-2007 • Z19DTH | 1 | |
| 3 | 93 180 492 Gasket 2005-2005 • Z19DTH | 1 | |
| 4 | 93 179 141 Stud Z19DTH • M6X12 | 1 | |
| 5 | 93 179 140 Screw Z19DTH | 1 | |
| 6 | 93 178 879 Washer Z19DTH • M16X12 | 1 | |
| 7 | 93 178 829 Screw Z19DTH • M8X25 | 1 | |
| 8 | 93 179 122 55 566 009 Tube -2005 • Z19DTH | 1 | |
| 8 | 55 196 452 55 566 009 Tube 2005-2006 • Z19DTH | 1 | |
| 10 | 93 180 499 93 178 832 Screw Z19DTH • M6X18 | 2 | |
| 10A | 93 184 660 Washer Z19DTH | 2 | |
| 11 | 93 180 497 Radiator hose Z19DTH | 1 | |
| 12 | 93 180 496 55 563 694 Radiator hose Z19DTH | 1 | |
| 13 | 93 179 207 Hose clamp 2005-2005 • Z19DTH • Ø35 MM | 1 | |
| 14 | 93 180 500 Hose clamp 2005-2006 • Z19DTH | 1 | |
| 15 | 12 855 329 93 181 863 Screw 2005-2006 • Z19DTH • M6X50 | 1 | |
| 16 | 93 179 125 Screw 2005-2005 • Z19DTH • M8X24 | 2 | |
| 17 | 93 181 620 Washer Z19DTH • 6X11 | 1 | |
| 18 | 93 180 491 Hose clamp 2005-2005 • Z19DTH | 2 | |
| 19 | Exhaust gas recirculationIntake and exhaust system Z19DTH | 1 |
