Question 1

Where to find the exploded diagram for Short block on my Saab 9-3 (9440) 2006?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Short block on Saab 9-3 (9440) 2006. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Short block?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Short block?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Short block, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Short block suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

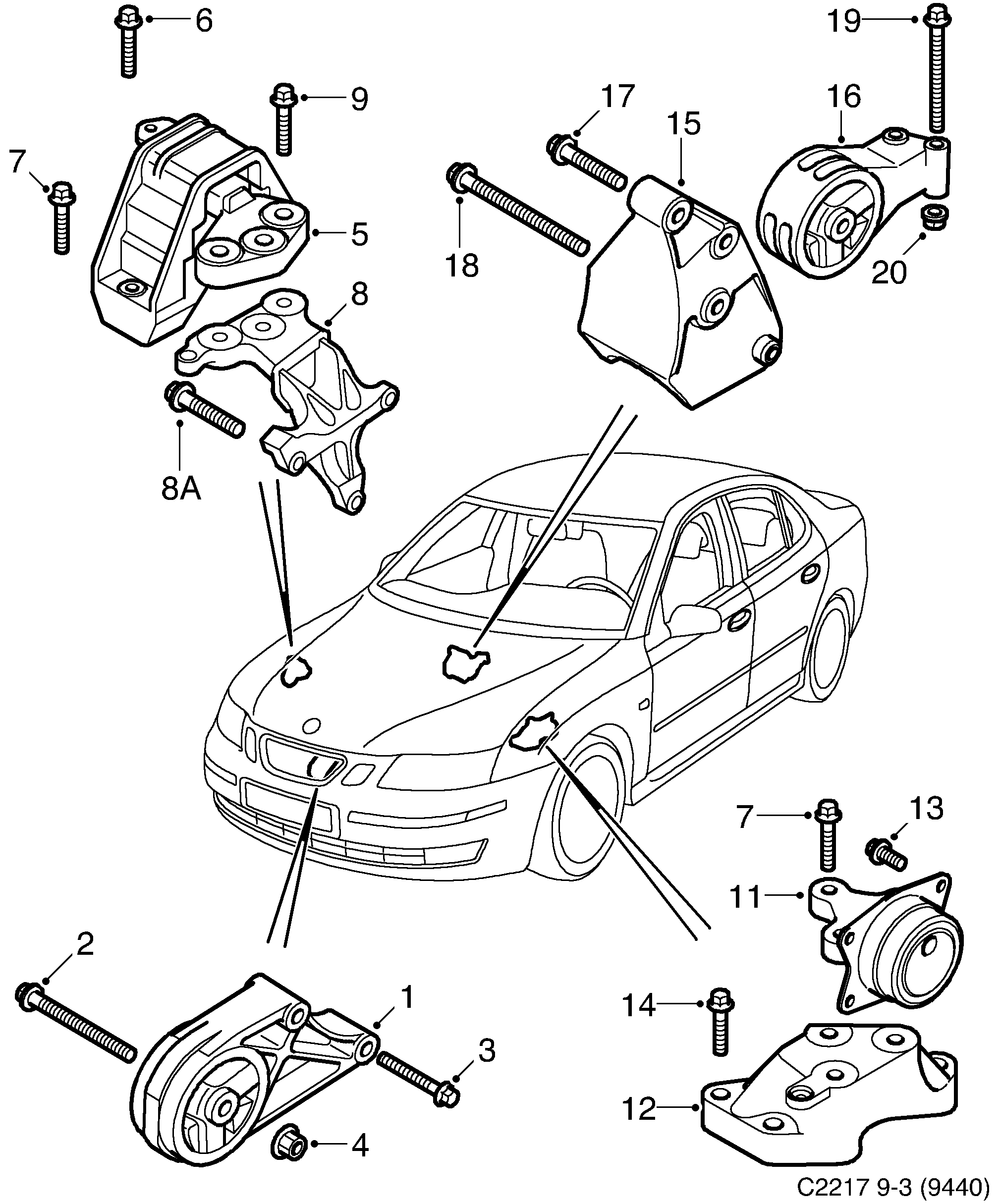

Pos.	Part No.	Description	Usage	Qty
1	13 220 095 Bushing 2006-2009 • PETROL • Front	Bushing	2006-2009 PETROL Front	1
2	11 102 231 Hexagon screw PETROL • Front	Hexagon screw	PETROL Front	1
3	11 101 141 Hexagon screw PETROL • Front	Hexagon screw	PETROL Front	2
4	11 094 464 Flange nut PETROL • Front	Flange nut	PETROL Front	1
6	92 152 199 Hexagon screw PETROL	Hexagon screw	PETROL	1
7	92 23 092 Hexagon screw PETROL • RH	Hexagon screw	PETROL RH	3
8	91 85 996 Bracket PETROL	Bracket	PETROL	1
8A	24 436 416 Screw PETROL	Screw	PETROL	3
9	92 23 092 Hexagon screw PETROL • LH	Hexagon screw	PETROL LH	3
11	13 207 577 Hydro bushing 2006-2009 • PETROL • LH	Hydro bushing	2006-2009 PETROL LH	1
12	91 56 991 Motor bracket PETROL • LH	Motor bracket	PETROL LH	3
13	92 152 134 Hexagon screw PETROL • LH	Hexagon screw	PETROL LH	4
14	11 101 321 Hexagon screw PETROL • LH	Hexagon screw	PETROL LH	3
15	91 56 987 Motor bracket PETROL • Rear	Motor bracket	PETROL Rear	1
16	91 56 932 Torque rod PETROL • Transmission Rear	Torque rod	PETROL Transmission Rear	1
17	11 099 201 Hexagon screw PETROL • Rear	Hexagon screw	PETROL Rear	3
18	11 102 241 Screw PETROL • Rear	Screw	PETROL Rear	1
19	11 102 251 Screw PETROL • Rear	Screw	PETROL Rear	2
20	11 095 804 90 576 769 Hexagon nut PETROL • Rear	Hexagon nut	PETROL Rear	2

Pos.	Part No.	Description	Usage	Qty
1	13 220 095 Bushing 2006-2009 • PETROL • Front	Bushing	2006-2009 PETROL Front	1
2	11 102 231 Hexagon screw PETROL • Front	Hexagon screw	PETROL Front	1
3	11 101 141 Hexagon screw PETROL • Front	Hexagon screw	PETROL Front	2
4	11 094 464 Flange nut PETROL • Front	Flange nut	PETROL Front	1
6	92 152 199 Hexagon screw PETROL	Hexagon screw	PETROL	1
7	92 23 092 Hexagon screw PETROL • RH	Hexagon screw	PETROL RH	3
8	91 85 996 Bracket PETROL	Bracket	PETROL	1
8A	24 436 416 Screw PETROL	Screw	PETROL	3
9	92 23 092 Hexagon screw PETROL • LH	Hexagon screw	PETROL LH	3
11	13 207 577 Hydro bushing 2006-2009 • PETROL • LH	Hydro bushing	2006-2009 PETROL LH	1
12	91 56 991 Motor bracket PETROL • LH	Motor bracket	PETROL LH	3
13	92 152 134 Hexagon screw PETROL • LH	Hexagon screw	PETROL LH	4
14	11 101 321 Hexagon screw PETROL • LH	Hexagon screw	PETROL LH	3
15	91 56 987 Motor bracket PETROL • Rear	Motor bracket	PETROL Rear	1
16	91 56 932 Torque rod PETROL • Transmission Rear	Torque rod	PETROL Transmission Rear	1
17	11 099 201 Hexagon screw PETROL • Rear	Hexagon screw	PETROL Rear	3
18	11 102 241 Screw PETROL • Rear	Screw	PETROL Rear	1
19	11 102 251 Screw PETROL • Rear	Screw	PETROL Rear	2
20	11 095 804 90 576 769 Hexagon nut PETROL • Rear	Hexagon nut	PETROL Rear	2

125: Engine - Short block - Engine suspension
