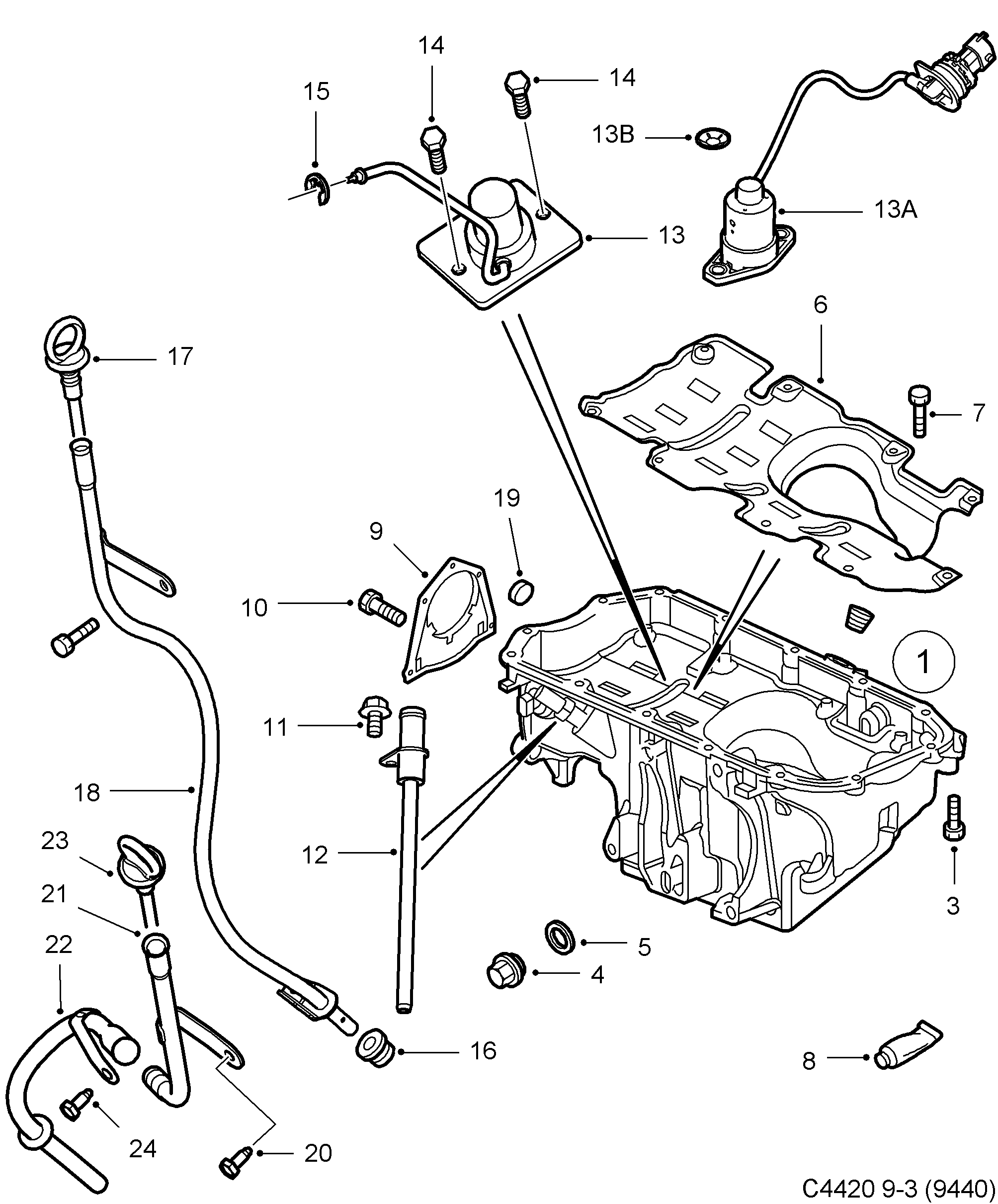

2065: Engine - Lubricating system - Sump
(2005 - 2012 | Z19DTH) | For 9-3 (9440) (2006)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 184 905 Sump 2006-2007 • Z19DTH | 1 | |
| 4 | 93 183 669 Screw plug Z19DTH | 1 | |
| 5 | 93 183 670 O-ring 2006-2011 • Z19DTH | 1 | |
| 6 | 93 182 432 Baffle plate 2005-2010 • Z19DTH | 1 | |
| 7 | 93 178 505 Screw Z19DTH • M6X16 | 9 | |
| 3 | 93 178 501 Screw Z19DTH • M8X28 | 10 | |
| 3 | 93 178 502 Screw 2005-2010 • Z19DTH • M6X30 | 4 | |
| 8 | 93 165 267 Sealing compound Z19DTH | ||
| 9 | 93 178 503 Plate Z19DTH • with seal | 1 | |
| 10 | 93 181 926 Screw 2006-2011 • Z19DTH • M6X16 | 5 | |
| 11 | 93 179 333 Screw Z19DTH • M6X14 | 1 | |
| 12 | 93 182 355 Pipe Z19DTH | 1 | |
| 13A | 93 177 497 Sensor 2005-2010 • Z19DTH | 1 | |
| 14 | 93 181 933 Screw Z19DTH | 2 | |
| 15 | 93 177 798 Lock washer Z19DTH | 1 | |
| 16 | 93 183 911 Seal 2005-2010 • Z19DTH • (93 1787 12) | 1 | |
| 17 | 55 200 224 Dipstick 2005-2010 • Z19DTH | 1 | |
| 18 | 55 188 281 55 565 753 Oil-level tube 2005-2010 • Z19DTH | 1 | |
| 19 | 11 052 823 Plug 2005-2007 • Z19DTH • D=22MM | 1 |
