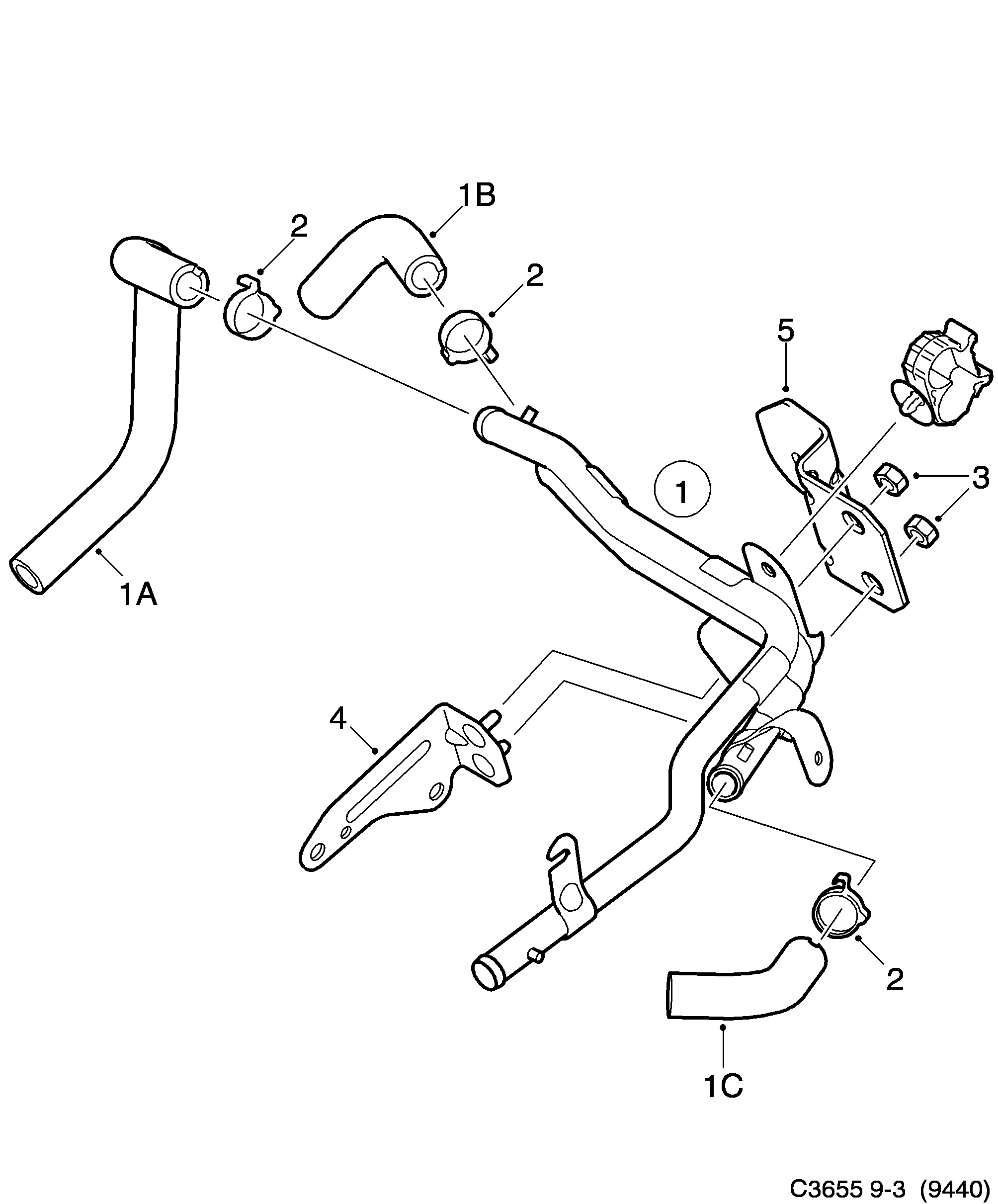

5220: Engine - Cooling system - Coolant pipe - Oil cooler
(2005 - 2010 | Z19DT, Z19DTH) | For 9-3 (9440) (2006)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 55 195 299 Hose Z19DT, Z19DTH | 1 | |
| 1A | Hose Z19DT, Z19DTH • Not as separate spare... | ||
| 1B | Hose Z19DT, Z19DTH • Not as separate spare... | ||
| 1C | Hose Z19DT, Z19DTH • Not as separate spare... | ||
| 2 | 90 572 590 Hose clamp Z19DT, Z19DTH | 3 | |
| 3 | 11 900 451 Nut Z19DT, Z19DTH | 2 | |
| 4 | 55 189 809 Bracket Z19DT, Z19DTH | 1 | |
| 5 | 55 350 779 Bracket Z19DT, Z19DTH | 1 |
