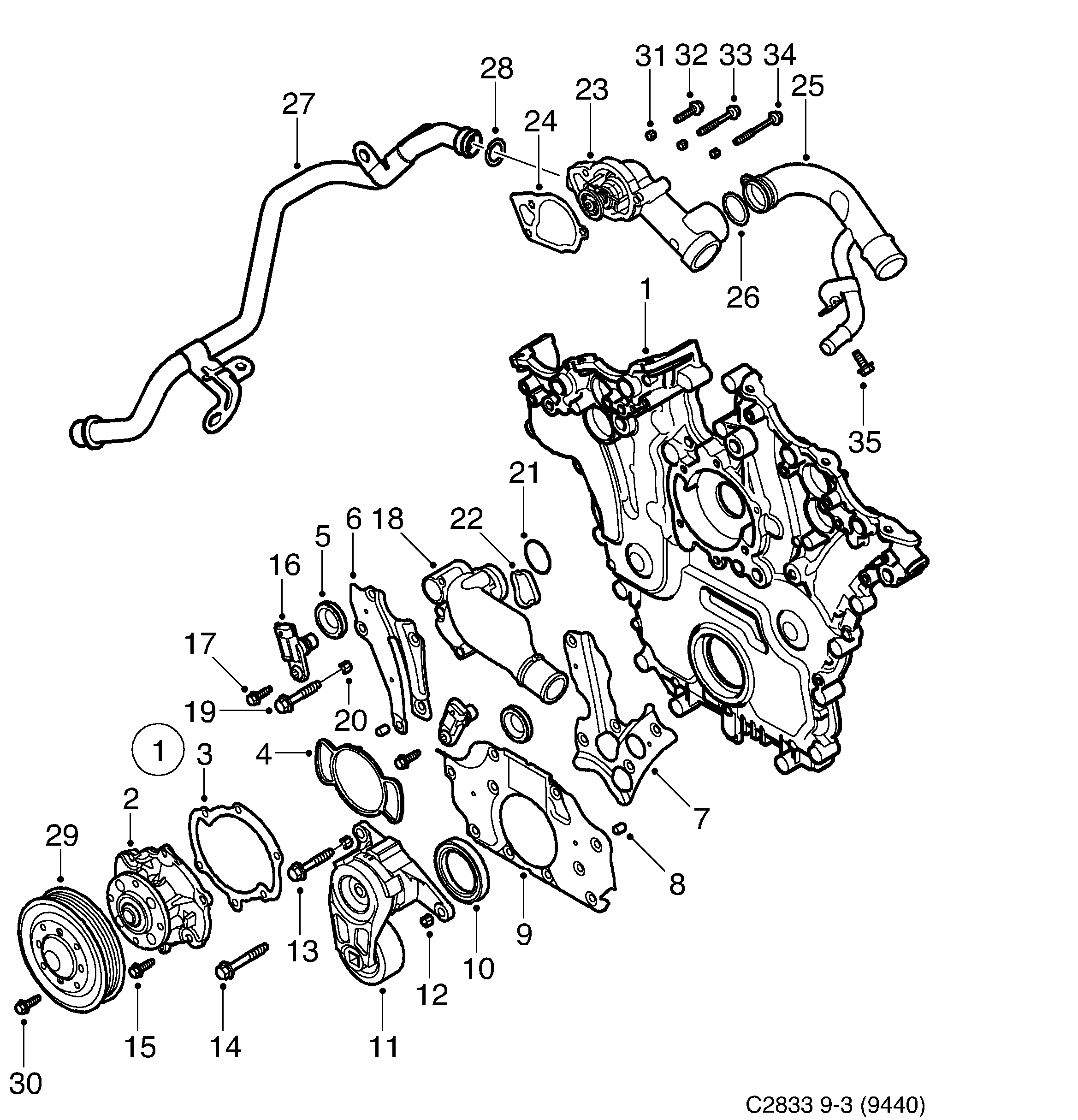

5810: Engine - Cooling system - Coolant pump - Thermostat

(2006 - 2012 | B284E, B284L) | For 9-3 (9440) (2006)

100%

(N°5800)

Section 5810

(N°5825)

Pos.	Part No.	Description	Usage	Qty
1	12 588 982 Water pump 2006-2006 • B284E, B284L • (12 598 353) \|...	Water pump	2006-2006 B284E, B284L (12 598 353) \|...	1
2	12 566 029 92 149 009 Water pump -2006 • B284E, B284L	Water pump	-2006 B284E, B284L	1
2	92 149 009 Water pump 2006- • B284E, B284L	Water pump	2006- B284E, B284L	1
3	12 576 326 Gasket B284E, B284L	Gasket	B284E, B284L	1
4	12 593 045 Seal B284E, B284L	Seal	B284E, B284L	1
5	12 593 717 O-ring B284E, B284L	O-ring	B284E, B284L	2
6	Damper B284E, B284L • Rear. Not as separate...	Damper	B284E, B284L Rear. Not as separate...	1
7	Damper B284E, B284L • Not as separate spare...	Damper	B284E, B284L Not as separate spare...	1
8	22 531 637 Pin B284E, B284L	Pin	B284E, B284L	2
9	Damper B284E, B284L • Not as separate spare...	Damper	B284E, B284L Not as separate spare...	1
10	12 592 355 12 608 750 Sealing ring 2006-2007 • B284E, B284L	Sealing ring	2006-2007 B284E, B284L	1
11	Tension pulleyFuel system B284E, B284L	Tension pulleyFuel system B284E, B284L
12	11 588 327 Sleeve B284E, B284L	Sleeve	B284E, B284L	1
13	11 588 728 Hexagon screw B284E, B284L	Hexagon screw	B284E, B284L	22
14	11 519 173 Hexagon screw B284E, B284L	Hexagon screw	B284E, B284L	1
15	11 588 713 Hexagon screw B284E, B284L	Hexagon screw	B284E, B284L	6
16	12 592 250 Camshaft position sensor 2006-2006 • B284E, B284L • Camshaft position sensor	Camshaft position sensor	2006-2006 B284E, B284L Camshaft position sensor	2
17	11 519 967 Hexagon screw B284E, B284L	Hexagon screw	B284E, B284L	1
18	12 574 373 Reservoir B284E, B284L	Reservoir	B284E, B284L	1
19	11 519 972 Hexagon screw B284E, B284L	Hexagon screw	B284E, B284L	2
20	12 570 372 Spacer piece B284E, B284L	Spacer piece	B284E, B284L	2
21	12 584 040 O-ring B284E, B284L	O-ring	B284E, B284L	1
22	12 566 429 Gasket B284E, B284L	Gasket	B284E, B284L	1
23	12 597 258 Thermostat housing B284E, B284L	Thermostat housing	B284E, B284L	1
24	12 592 527 Gasket B284E, B284L	Gasket	B284E, B284L	1
25	12 603 276 Pipe 2006-2011 • B284E, B284L	Pipe	2006-2011 B284E, B284L	1
26	12 588 317 O-ring 2006-2011 • B284E, B284L	O-ring	2006-2011 B284E, B284L	1
27	55 556 504 Pipe 2006-2011 • B284E, B284L • Less All Wheel Drive...	Pipe	2006-2011 B284E, B284L Less All Wheel Drive...	1
28	12 588 318 O-ring 2006-2011 • B284E, B284L	O-ring	2006-2011 B284E, B284L	1
29	12 574 518 Pulley 2006-2007 • B284E, B284L	Pulley	2006-2007 B284E, B284L	1
30	11 588 940 Hexagon screw B284E, B284L	Hexagon screw	B284E, B284L	4
31	11 518 792 Sleeve B284E, B284L	Sleeve	B284E, B284L	3
32	11 519 968 Hexagon screw B284E, B284L • M6x30	Hexagon screw	B284E, B284L M6x30	1
33	11 519 972 Hexagon screw B284E, B284L • M6x50	Hexagon screw	B284E, B284L M6x50	1
34	11 519 973 Hexagon screw B284E, B284L • M6X60	Hexagon screw	B284E, B284L M6X60	1
35	11 900 162 Hexagon screw B284E, B284L	Hexagon screw	B284E, B284L	2
